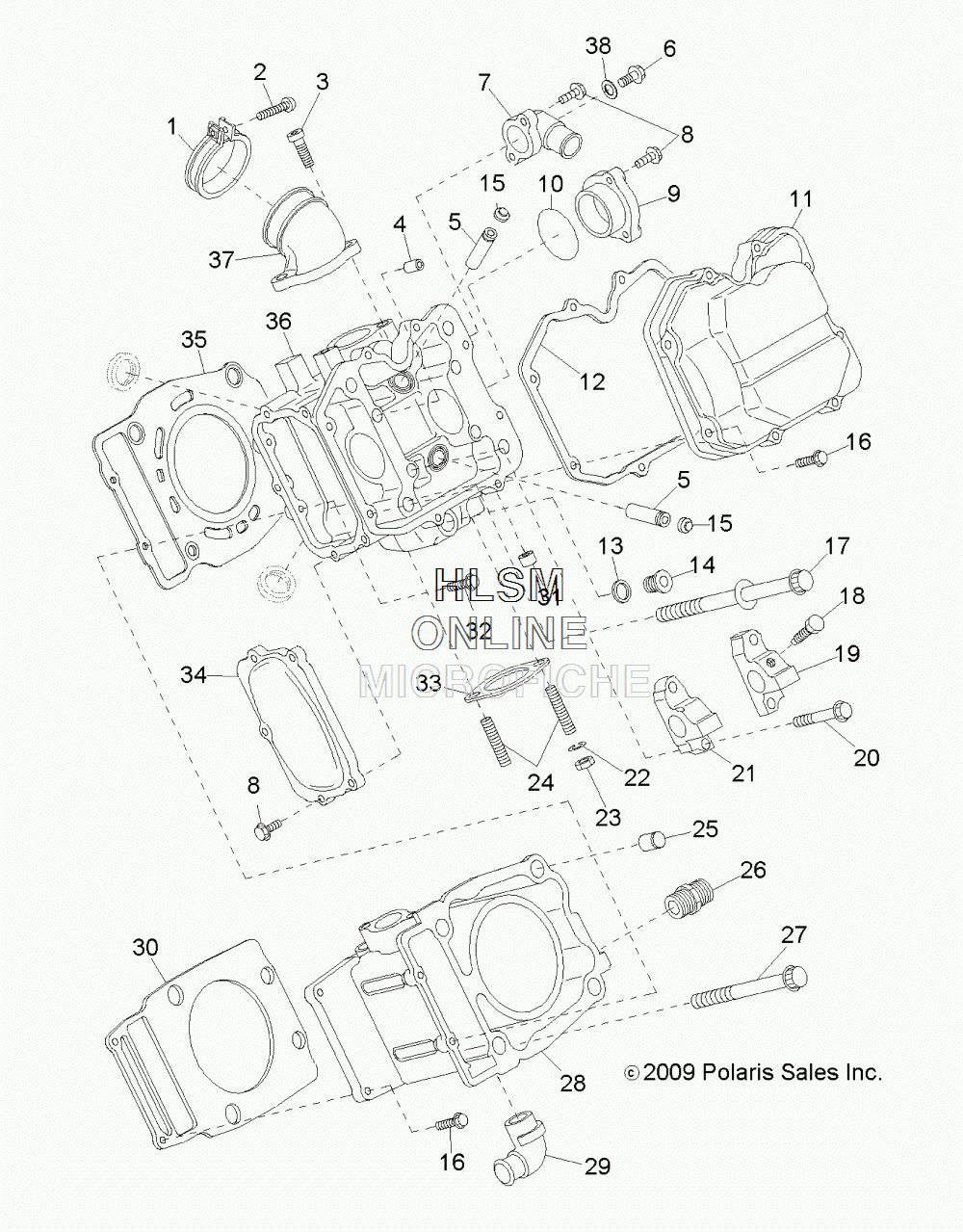

CYLINDER для Polaris RANGER 400 HO - SAGEBRUSH GREEN METALLIC [R11RH45AG] - 2011 года выпуска
-
№АртикулНазвание
-
13090108 ASM., BAND, ADAPTER (INCL. 2)ASM., BAND, ADAPTER (INCL. 2)
-
23081497 ASM., SCREW AND WASHERASM., SCREW AND WASHER
-
33081330 BOLT, SOCKET HEADBOLT, SOCKET HEAD
-
43084857 PIN, STRAIGHTPIN, STRAIGHT
-
53084994 GUIDE, VALVEGUIDE, VALVE
-
63085359 BOLT, FLANGEBOLT, FLANGE
-
73088208 ADAPTERADAPTER
-
83084877 BOLT, FLANGEBOLT, FLANGE
-
93084866 ADAPTER, CAMSHAFTADAPTER, CAMSHAFT
-
103084867 O-RINGO-RING
-
113085073 COVER, ROCKERCOVER, ROCKER
-
123085074 GASKET, ROCKER COVERGASKET, ROCKER COVER
-
133084861 GASKETGASKET
-
143084860 PLUGPLUG
-
153090098 SEAL, EXHAUST VALVESEAL, EXHAUST VALVE
-
163084874 BOLT, FLANGEBOLT, FLANGE
-
173084875 BOLTBOLT
-
183085854 BOLT, ROCKER SHAFTBOLT, ROCKER SHAFT
-
193084864 SUPPORT, VALVE ROCKER SHAFTSUPPORT, VALVE ROCKER SHAFT
-
203084876 BOLTBOLT
-
213084863 SUPPORT, VALVE ROCKER SHAFTSUPPORT, VALVE ROCKER SHAFT
-
223080530 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
233087199 NUTNUT
-
243085326 STUDSTUD
-
253087266 PIPE, KNOCKPIPE, KNOCK
-
263089956 UNIONUNION
-
273084873 BOLT, FLANGEBOLT, FLANGE
-
283090289 ASM., CYLINDER (INCL. 29)ASM., CYLINDER (INCL. 29)
-
293090290 PIPE, WATERPIPE, WATER
-
303089966 GASKET, CYLINDERGASKET, CYLINDER
-
313084862 PLUG, BLINDPLUG, BLIND
-
323086781 BOLT, FLANGEBOLT, FLANGE
-
333085075 GASKETGASKET
-
343089242 COVER, CAMSHAFTCOVER, CAMSHAFT
-
353085337 GASKET, HEADGASKET, HEAD
-
363090038 HEAD, CYLINDER (INCL. 4,5,13-15,24,31)HEAD, CYLINDER (INCL. 4,5,13-15,24,31)
-
373084879 ADAPTERADAPTER
-
387555998 WASHER, FLAT, ALUMINUMWASHER, FLAT, ALUMINUM
