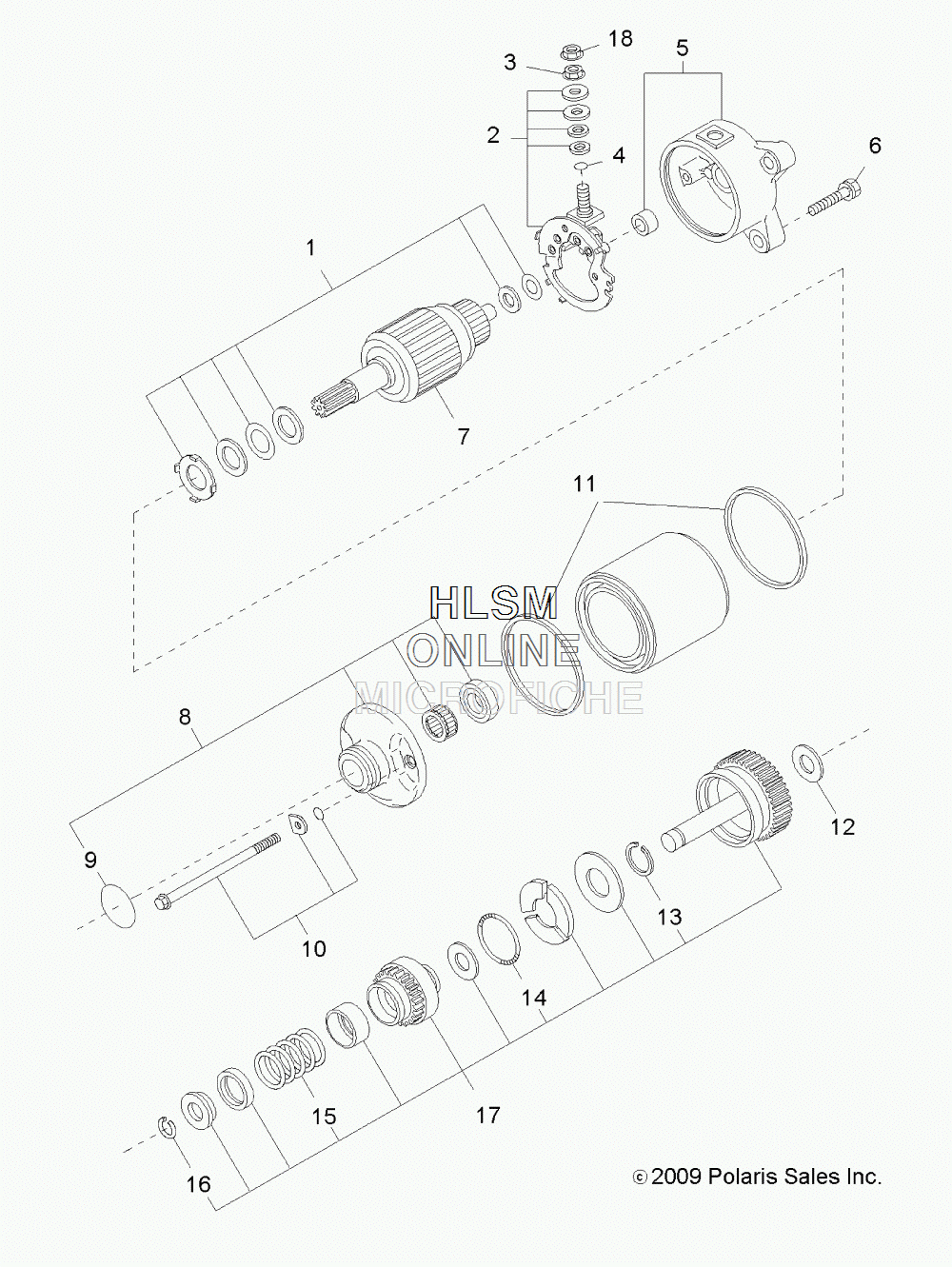

STARTING MOTOR для Polaris RANGER 4X4 500 EFI - SOLAR RED [R11RH50AR] - 2011 года выпуска
-
№АртикулНазвание
-
23090188 MOTOR, STARTER COMPLETE (INCL. 1-5,7-11)MOTOR, STARTER COMPLETE (INCL. 1-5,7-11)
-
13084982 WASHER SETWASHER SET
-
23088169 BRUSH, CARBON, SETBRUSH, CARBON, SET
-
33083649 NUT, FLANGENUT, FLANGE
-
43084408 O-RINGO-RING
-
53085034 ASM., BRACKET, REARASM., BRACKET, REAR
-
63084874 BOLT, FLANGEBOLT, FLANGE
-
73085353 ASM., ARMATUREASM., ARMATURE
-
83085033 ASM., FRONT BRACKET (INCL. 9)ASM., FRONT BRACKET (INCL. 9)
-
93240114 O-RINGO-RING
-
103084983 ASM., BOLT SET (INCL. 4)ASM., BOLT SET (INCL. 4)
-
113084405 RING, RUBBERRING, RUBBER
-
123240134 WASHERWASHER
-
133084412 CLIPCLIP
-
143084411 SPRING, WEIGHTSPRING, WEIGHT
-
153084410 SPRING, RETURNSPRING, RETURN
-
163084409 CLIPCLIP
-
173090034 ASM., GEAR SHAFT (INCL. 13-16)ASM., GEAR SHAFT (INCL. 13-16)
-
183083856 NUT, FLANGENUT, FLANGE
