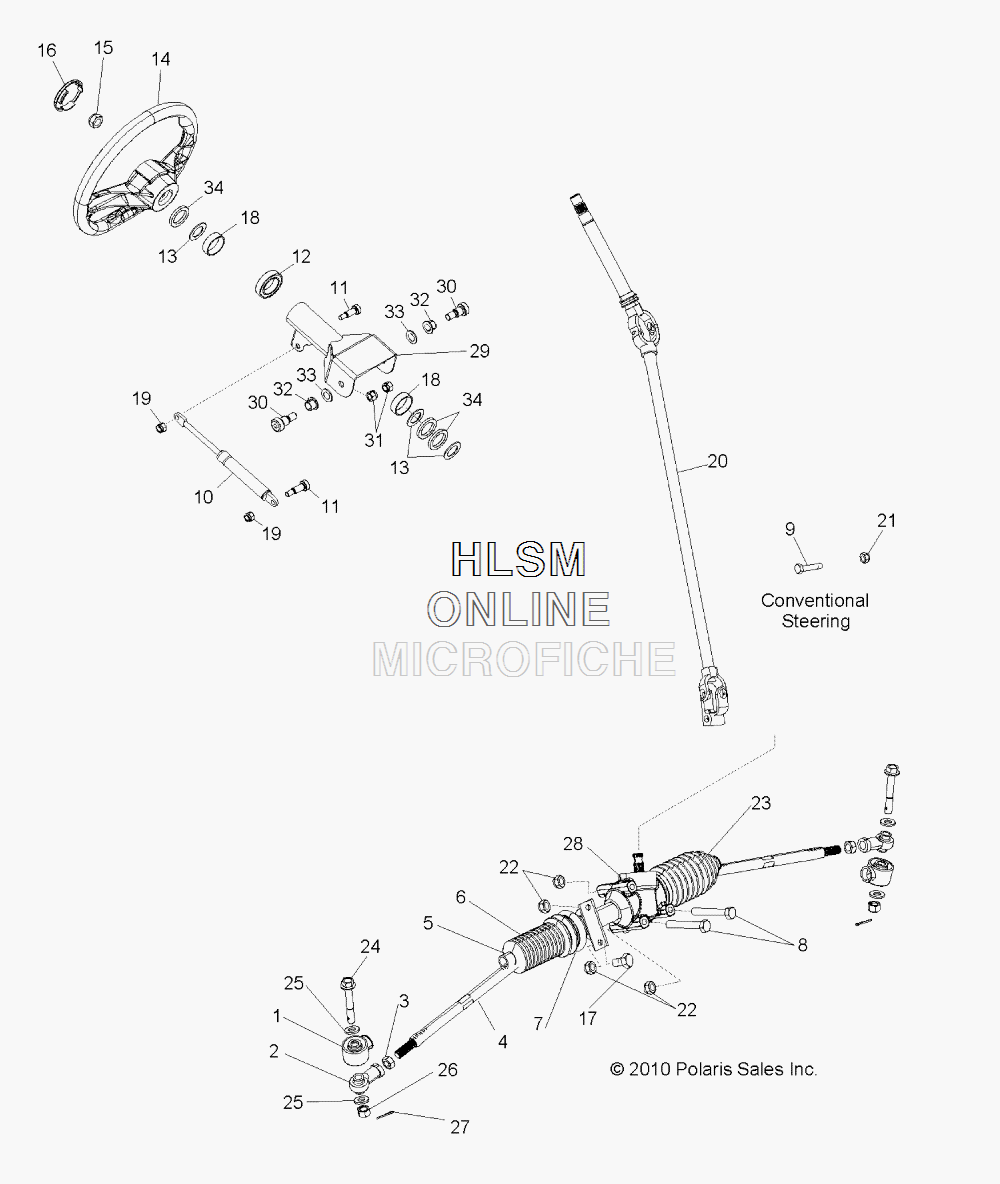

STEERING ASM. для Polaris RANGER 6X6 800 EFI - SOLAR RED [R11HR76AR] - 2011 года выпуска

-
№АртикулНазвание
-
27061054 ROD-END, 10MM, 1/2-20LH, 42 DEG (INCL. 1)ROD-END, 10MM, 1/2-20LH, 42 DEG (INCL. 1)
-
37547028 NUT, JAM (LEFT)NUT, JAM (LEFT)
-
57080978 CLAMP, BOOT, SMALLCLAMP, BOOT, SMALL
-
65412013 BOOT, PASSENGER, SIDE RACKBOOT, PASSENGER, SIDE RACK
-
77080979 CLAMP, BOOT, LARGECLAMP, BOOT, LARGE
-
87518935 BOLT-M8X1.25X95 HX BOLTBOLT-M8X1.25X95 HX BOLT
-
97517827 SCREW, HEXHD, M10X35SCREW, HEXHD, M10X35
-
107043523 ASM., SHOCKASM., SHOCK
-
117518786 BOLT-SHOULDER, M8-16, M6X1.0-YBOLT-SHOULDER, M8-16, M6X1.0-Y
-
123514686 BEARING, STEERINGBEARING, STEERING
-
137556483 WASHER-30MM ODX 21MM ID X 1.5WASHER-30MM ODX 21MM ID X 1.5
-
141823622 WHEEL, STEERINGWHEEL, STEERING
-
157547188 NUT-M16X2-6GNUT-M16X2-6G
-
165436536 CAP, STEERING WHEEL (BUILT 9/01/10 AND BEFORE)CAP, STEERING WHEEL (BUILT 9/01/10 AND BEFORE)
-
165438865 CAP, STEERING WHEEL (BUILT 9/02/10 AND AFTER)CAP, STEERING WHEEL (BUILT 9/02/10 AND AFTER)
-
177518702 BOLT-M8X1.25X20, HXHDFLGBOLT-M8X1.25X20, HXHDFLG
-
185252796 SPACER, STEERING SHAFTSPACER, STEERING SHAFT
-
197546703 NUT, NYLOKNUT, NYLOK
-
201823669 SHAFT, STEERING, UPPER/LOWERSHAFT, STEERING, UPPER/LOWER
-
217547385 NUT-NY INS, M10X1.5, HEX, ZINC, YWNUT-NY INS, M10X1.5, HEX, ZINC, YW
-
227547332 NUT-M8X1.25, FLG, NYLOC-OLIVE DNUT-M8X1.25, FLG, NYLOC-OLIVE D
-
235412012 BOOT, DRIVER SIDE, RACKBOOT, DRIVER SIDE, RACK
-
247517909 BOLT-M10X1.25X65, HX WASH HDBOLT-M10X1.25X65, HX WASH HD
-
257556099 WASHERWASHER
-
267547177 NUT-M10X1.25-HX-LOCK-YNUT-M10X1.25-HX-LOCK-Y
-
277661203 PIN, COTTERPIN, COTTER
-
281823795 ASM., GEAR BOX, STEERING (INCL. 1-7, 23)ASM., GEAR BOX, STEERING (INCL. 1-7, 23)
-
291017722-521 ASM., PIVOT TUBE (BLACK ENGINE WRINKLE)ASM., PIVOT TUBE (BLACK ENGINE WRINKLE)
-
307517607 BOLT, SHOULDERBOLT, SHOULDER
-
317542451 NUT, NYLOKNUT, NYLOK
-
325431107 BUSHING, PEDAL PIVOTBUSHING, PEDAL PIVOT
-
337555919 WASHERWASHER
-
347556482 WASHER-NEOPREME, 28 OD X 20 IDWASHER-NEOPREME, 28 OD X 20 ID
