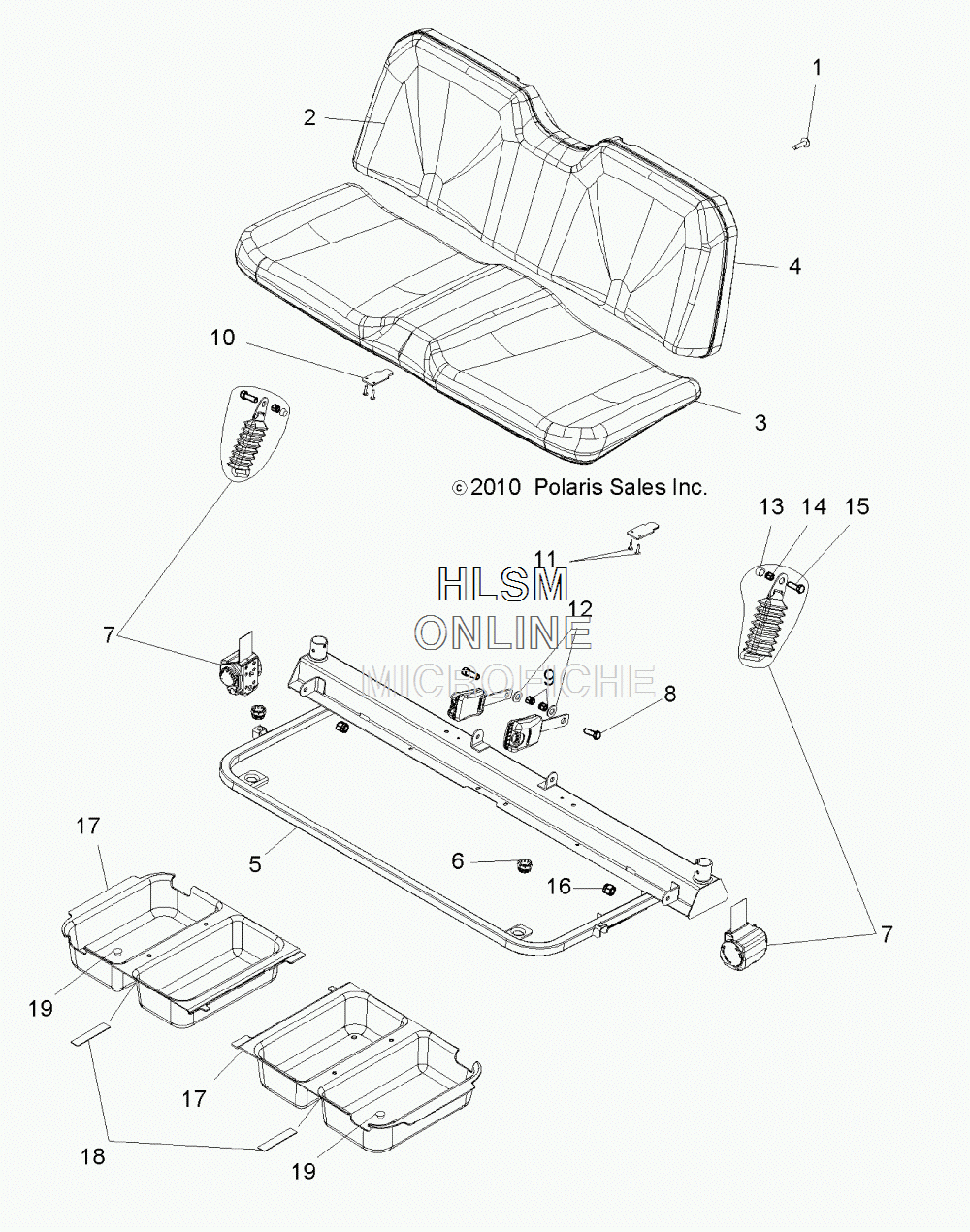

SEAT для Polaris RANGER EV 4X4 INTL - SAGE BLUE [R11RC08GA] - 2011 года выпуска
-
№АртикулНазвание
-
17518158 SCREW-#14X1 HI/LO-PH-PN TRX-MSCREW-#14X1 HI/LO-PH-PN TRX-M
-
22684294-070 ASM., SEAT, BACK (BLACK)ASM., SEAT, BACK (BLACK)
-
32684626-070 ASM., SEAT, BOTTOM (BLACK)ASM., SEAT, BOTTOM (BLACK)
-
32204383 KIT, SEAT MOUNT (REPLACES SEAT PIN)KIT, SEAT MOUNT (REPLACES SEAT PIN)
-
45437909-070 COVER, SEAT BACK (BLACK) (NOT INCLUDED IN SEAT ASM.)COVER, SEAT BACK (BLACK) (NOT INCLUDED IN SEAT ASM.)
-
51017789-458 BASE, CAB/SEAT (MATTE BLACK)BASE, CAB/SEAT (MATTE BLACK)
-
65412507 GROMMETGROMMET
-
72633938 ASM-SEAT BELT, 3 PT (INCL. 13-16)ASM-SEAT BELT, 3 PT (INCL. 13-16)
-
87512520 SCREWSCREW
-
97547066 NUT-7/16-20, NYLOK, Y (10)NUT-7/16-20, NYLOK, Y (10)
-
105437903 TAB, SEAT MOUNTTAB, SEAT MOUNT
-
117621479 RIVETRIVET
-
127556333 WASHER-FLAT, .531X1.063X.094-YWASHER-FLAT, .531X1.063X.094-Y
-
175438365 TUB, STORAGETUB, STORAGE
-
185521235-15 VELCRO, HOOKVELCRO, HOOK
-
195412981 PLUG, COMPARTMENTPLUG, COMPARTMENT
