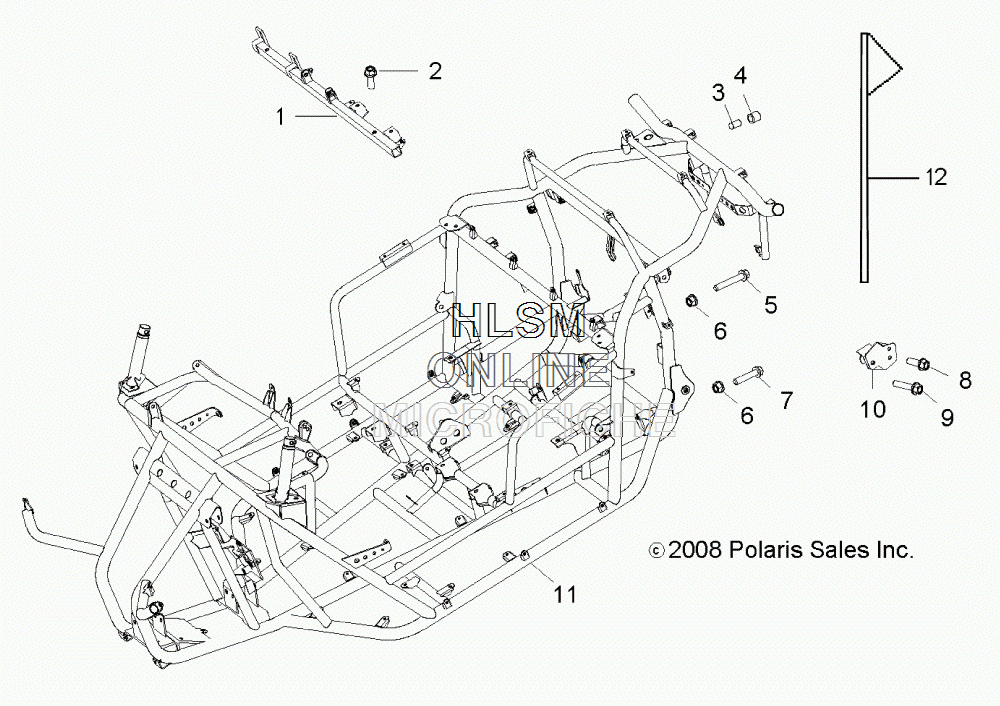

FRAME для Polaris RANGER RZR 170 - RED [R11VA17AA] - 2011 года выпуска
-
№АртикулНазвание
-
10454314 MOUNT, HOOD SUPPORTMOUNT, HOOD SUPPORT
-
20454315 BOLTBOLT
-
30453265 SPACERSPACER
-
40453309 BUSHING, RUBBERBUSHING, RUBBER
-
50454316 BOLTBOLT
-
60454317 NUTNUT
-
70450275 BOLTBOLT
-
80452030 BOLT-HEX, 14, WASHER, NYLOCKBOLT-HEX, 14, WASHER, NYLOCK
-
90453865 BOLTBOLT
-
100454313 MOUNT, ENGINE, REARMOUNT, ENGINE, REAR
-
110454754-067 FRAME, MAIN (BLACK)FRAME, MAIN (BLACK)
-
120454727 FLAG, SAFETYFLAG, SAFETY
