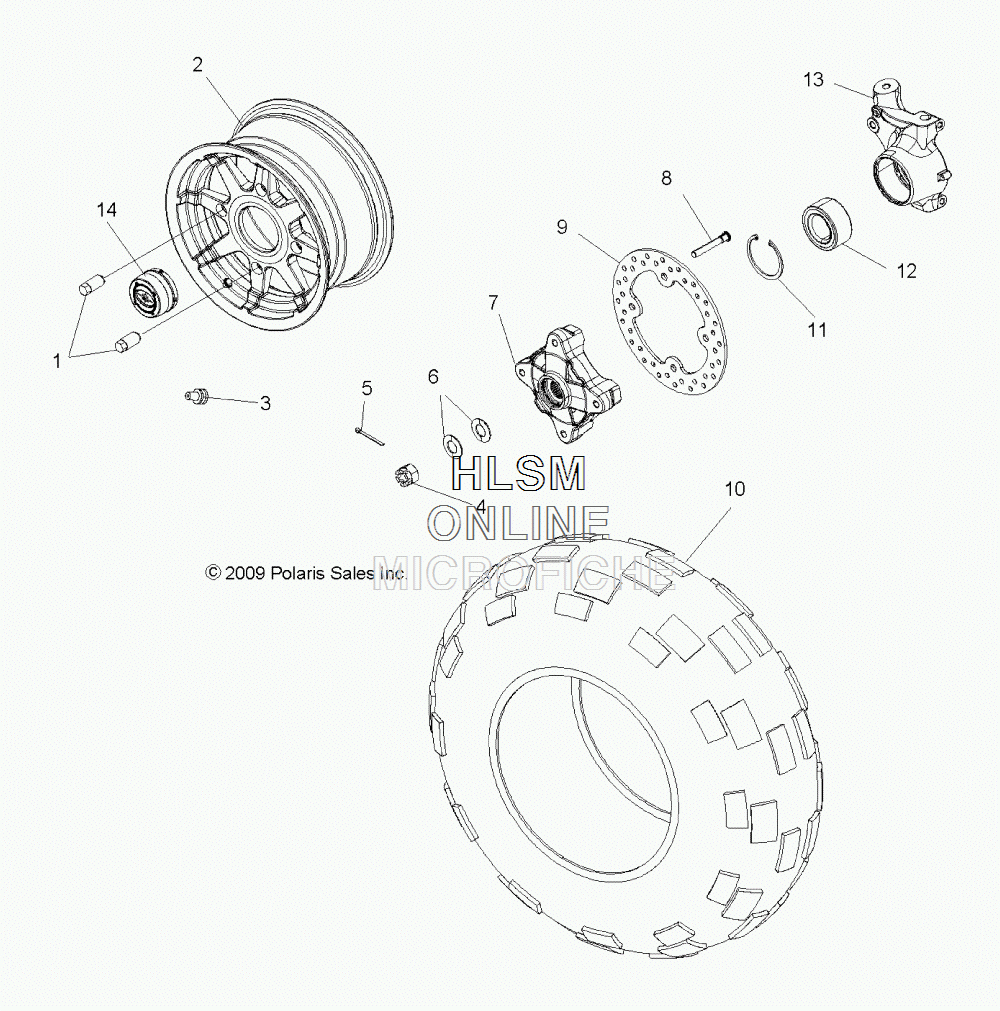

WHEELS - FRONT для Polaris RANGER RZR (S) 800 EFI - INDY RED [R11VE76AD] - 2011 года выпуска
-
№АртикулНазвание
-
17547309 NUT-3/8-24-WHEELNUT-3/8-24-WHEEL
-
21521106 RIM-FRONT, 12X6, CAST, 26.2 (AD)RIM-FRONT, 12X6, CAST, 26.2 (AD)
-
31525017 VALVE, RIMVALVE, RIM
-
47547337 NUT-M18X1.5, CASTLE (ZINC/YELLOW)NUT-M18X1.5, CASTLE (ZINC/YELLOW)
-
57661404 PIN, COTTERPIN, COTTER
-
67555796 WASHER, CONEWASHER, CONE
-
75137219 HUB, WHEEL, FRONTHUB, WHEEL, FRONT
-
87518654 STUD-3/8-24X2.68 PRS FIT-ZSTUD-3/8-24X2.68 PRS FIT-Z
-
95250068 DISC-BRAKE, FRONT, 9.25" ODDISC-BRAKE, FRONT, 9.25" OD
-
105413930 TIRE, FRONT, 26X9R12 (AD)TIRE, FRONT, 26X9R12 (AD)
-
117710440 RING, RETAININGRING, RETAINING
-
123514699 BEARING, BALL, SEALED, 44X72X33.1BEARING, BALL, SEALED, 44X72X33.1
-
135135442 CARRIER, BEARING (LEFT)CARRIER, BEARING (LEFT)
-
135135443 CARRIER, BEARING (RIGHT)CARRIER, BEARING (RIGHT)
-
141521128 CAP, RIMCAP, RIM
