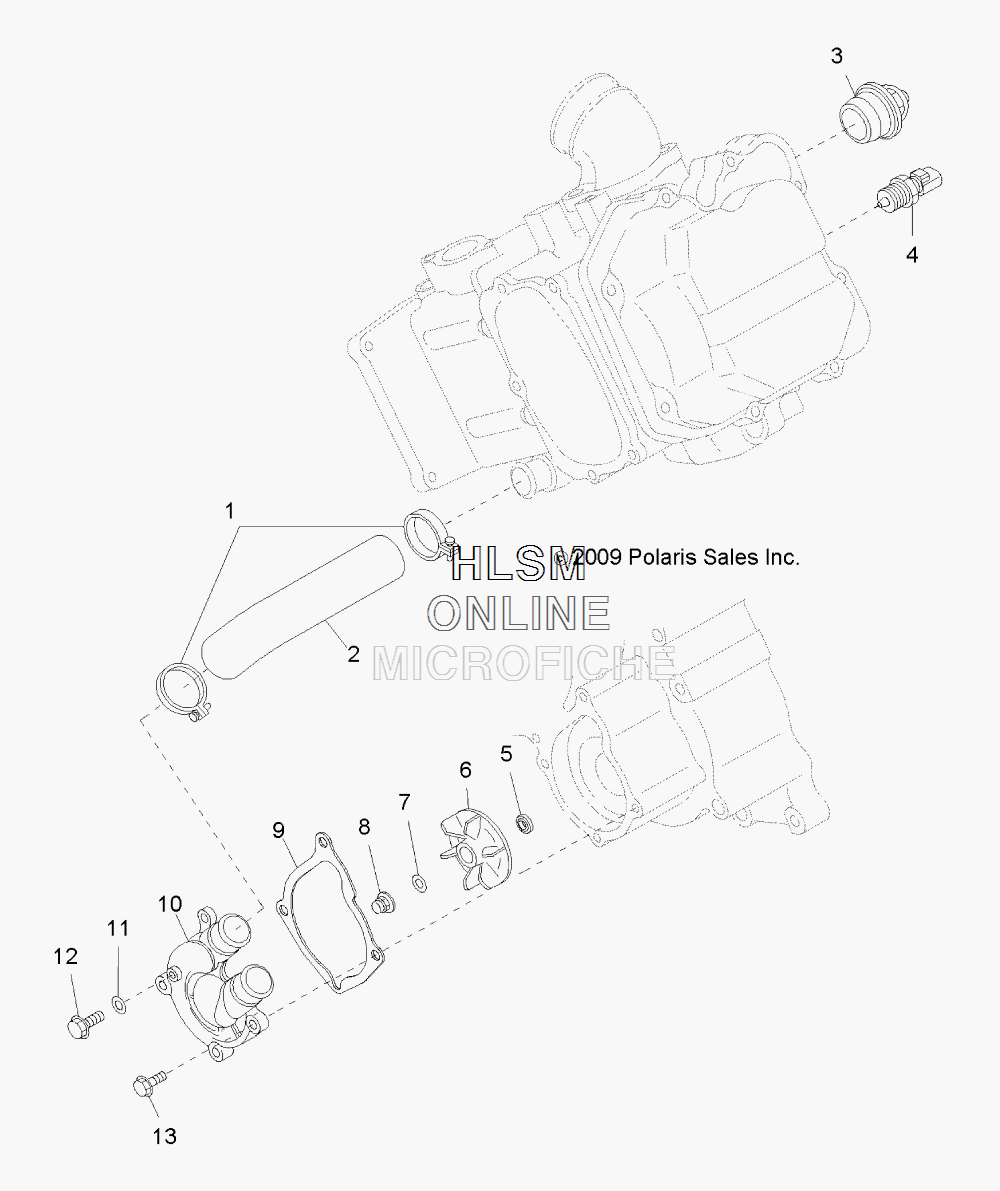

WATER PUMP для Polaris RANGER 400 4X4 - POLARIS PURSUIT CAMO [R12RH45AH] - 2012 года выпуска
-
№АртикулНазвание
-
13086774 CLAMP, HOSECLAMP, HOSE
-
23090291 HOSE, MAINHOSE, MAIN
-
33090049 THERMOSTATTHERMOSTAT
-
43089892 SENSOR, WATER PUMPSENSOR, WATER PUMP
-
53084942 WASHER, SEALWASHER, SEAL
-
63084935 IMPELLERIMPELLER
-
73083138 GASKETGASKET
-
83085077 NUT, SELF LOCKNUT, SELF LOCK
-
93086840 GASKET, WATER PUMPGASKET, WATER PUMP
-
103090292 COVER, WATER PUMPCOVER, WATER PUMP
-
113088030 GASKET, COPPERGASKET, COPPER
-
123085359 BOLT, FLANGEBOLT, FLANGE
-
133088064 BOLT, FLANGEBOLT, FLANGE
Все узлы модели:
- A-ARM AND STRUT MOUNTING
- AIR INTAKE
- AIR INTAKE SYSTEM
- BATTERY
- BOX ASM.
- BOX MOUNTING
- CAB FRAME
- CAMSHAFT AND VALVES
- CARBURETOR- LOWER
- CARBURETOR- UPPER
- CLUTCH COVER
- CLUTCH- PRIMARY
- CLUTCH- SECONDARY
- COOLING SYSTEM
- CRANKCASE
- CRANKSHAFT AND PISTON
- CYLINDER
- DASH INSTRUMENTS AND CONTROLS
- DECALS
- EXHAUST
- FLOOR AND FENDERS
- FLYWHEEL COVER
- FRAME AND FRONT BUMPER
- FRONT CALIPER
- FRONT DRIVE SHAFT
- FRONT GEARCASE INTERNALS
- FRONT GEARCASE MOUNTING
- FRONT PROP SHAFT
- FRONT STRUT
- FUEL TANK ASM.
- GEAR SELECTOR
- HEADLIGHTS- TAILLIGHTS AND BULBS
- HOOD W/ DASH AND GRILL
- IGNITION SYSTEM
- MAIN GEARCASE
- MAIN GEARCASE INTERNAL
- MAIN GEARCASE MOUNTING
- MAIN GEARCASE OUTPUT SHAFT
- MASTER CYLINDER AND BRAKE LINES
- MASTER CYLINDER MOUNTING AND PEDAL
- MOUNTING
- OIL FILTER
- OIL PUMP
- OIL TANK
- REAR CALIPER
- REAR DRIVE SHAFT
- REAR STABILIZER BAR
- REAR SUSPENSION
- SEAT
- SIDE NETS
- STARTING MOTOR
- STEERING ASM.
- SWITCHES AND ECM
- TAILGATE ASM.
- THROTTLE PEDAL
- TOOL KIT AND OWNERS MANUALS
- • WATER PUMP
- WHEELS - FRONT
- WHEELS - REAR
- WIRE HARNESSES
