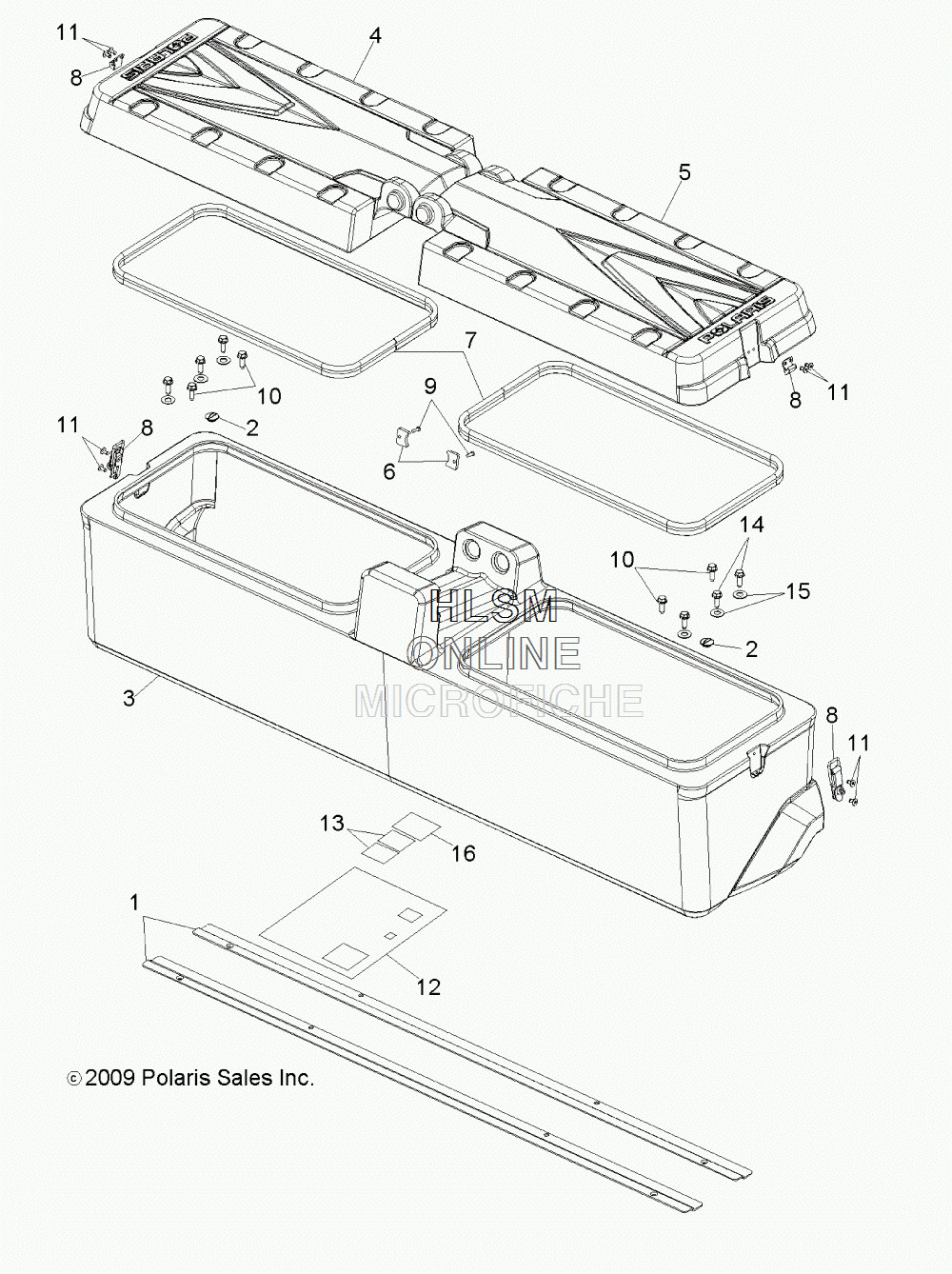

STORAGE BOX- REAR для Polaris RANGER 6X6 800 - SAGEBRUSH GREEN METALLIC [R12HR76AG] - 2012 года выпуска
-
№АртикулНазвание
-
12633930-070 ASM., STORAGE BOX, BLACK (INCL. 1-13,16)ASM., STORAGE BOX, BLACK (INCL. 1-13,16)
-
15253697 BRACKET, MOUNT, STORAGEBRACKET, MOUNT, STORAGE
-
25412981 PLUG, COMPARTMENTPLUG, COMPARTMENT
-
35438250-070 BOX, STORAGE BASE, BLACKBOX, STORAGE BASE, BLACK
-
45438251-070 LID, STORAGE BOX, BLACK, LEFT HANDLID, STORAGE BOX, BLACK, LEFT HAND
-
55438252-070 LID, STORAGE BOX, BLACK, RIGHT HANDLID, STORAGE BOX, BLACK, RIGHT HAND
-
65438253-070 TAB, STORAGE BOX, BLACKTAB, STORAGE BOX, BLACK
-
75521803 SEAL, STORAGE BOXSEAL, STORAGE BOX
-
87081609 LATCH, STORAGE, LOCKINGLATCH, STORAGE, LOCKING
-
97512026 SCREWSCREW
-
107519156 SCREWSCREW
-
117519091 SCREWSCREW
-
125813566 FOIL, BOX, STORAGEFOIL, BOX, STORAGE
-
135813567 FOIL, BOX, STORAGE, MOUNTFOIL, BOX, STORAGE, MOUNT
-
147517208 SCREWSCREW
-
157555976 WASHER, FLATWASHER, FLAT
-
165813574 FOIL, STORAGE BOX, LARGEFOIL, STORAGE BOX, LARGE
