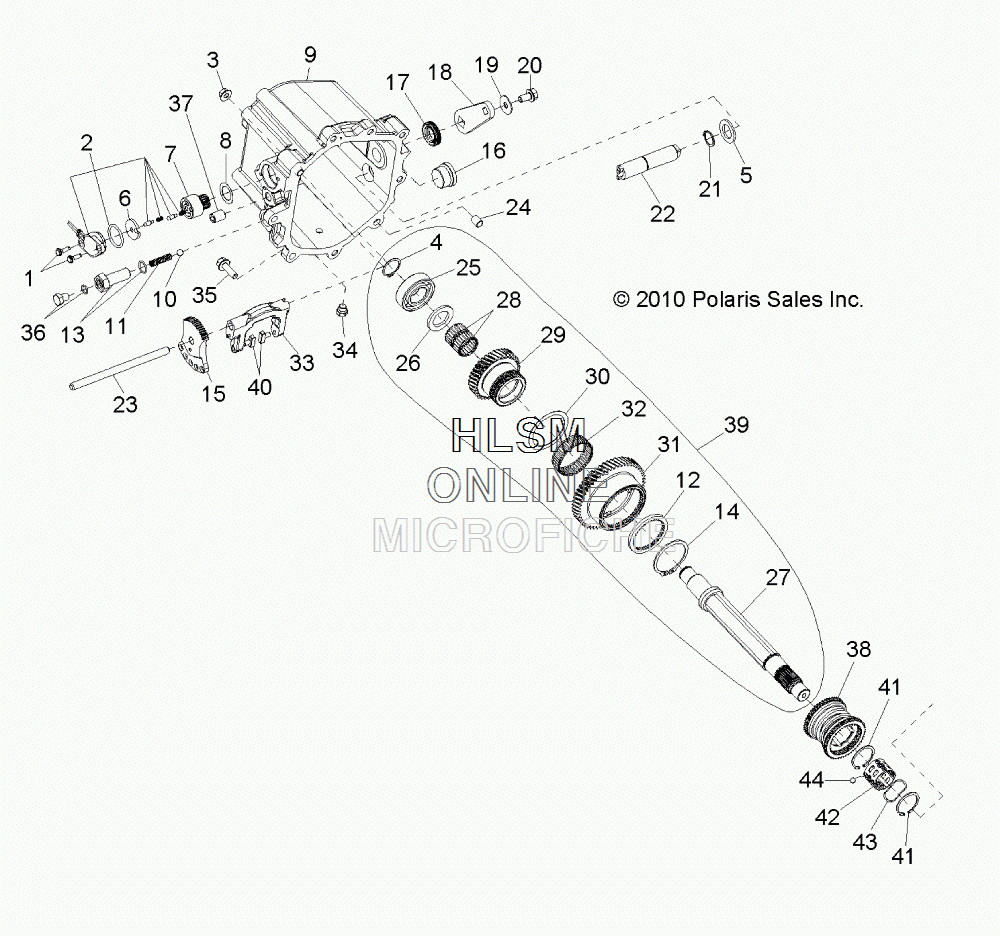

MAIN GEARCASE INTERNAL 2 для Polaris RANGER RZR 4 800 EFI EPS INTL [R12XE7EFX] - 2012 года выпуска
-
№АртикулНазвание
-
253235360 SUBASM., TRANSMISSIONSUBASM., TRANSMISSION
-
13234525 SCREW, FLANGESCREW, FLANGE
-
23234871 ASM., SENSORASM., SENSOR
-
33234500 NUT, FLANGENUT, FLANGE
-
43234552 RING, RETAININGRING, RETAINING
-
53234899 WASHERWASHER
-
63234523 SPACERSPACER
-
73234522 SENSOR, DRUM GEARSENSOR, DRUM GEAR
-
83234521 WASHERWASHER
-
93234890 ASM., COVER, SHIFT HOUSING (INCL. 17)ASM., COVER, SHIFT HOUSING (INCL. 17)
-
103234520 BALLBALL
-
113234870 SPRING, COMPRESSIONSPRING, COMPRESSION
-
123234874 PLATE, RETAININGPLATE, RETAINING
-
133234481 ASM., SLEEVE, DETENTASM., SLEEVE, DETENT
-
143234879 RING, RETAININGRING, RETAINING
-
153235338 PLATE, GEAR DETENTPLATE, GEAR DETENT
-
165133736 PLUG, FILL, W/O-RINGPLUG, FILL, W/O-RING
-
173234493 SEAL, OILSEAL, OIL
-
183234492 LEVER, SHIFT CABLELEVER, SHIFT CABLE
-
193234491 WASHERWASHER
-
203234490 SCREWSCREW
-
213234494 RING, RETAININGRING, RETAINING
-
223235284 ASM., SHIFTERASM., SHIFTER
-
233234914 PIN, PIVOTPIN, PIVOT
-
243234503 BUSHING, DOWELBUSHING, DOWEL
-
253235277 BEARING, BALLBEARING, BALL
-
263235276 WASHER, THRUSTWASHER, THRUST
-
273235302 SHAFT, CLUTCH, INTERMEDIATESHAFT, CLUTCH, INTERMEDIATE
-
283235069 BEARING, NEEDLEBEARING, NEEDLE
-
293235070 GEAR, CLUTCHGEAR, CLUTCH
-
303234905 WASHER, THRUSTWASHER, THRUST
-
313235275 GEAR, CLUTCH, LOW, 53TGEAR, CLUTCH, LOW, 53T
-
323234536 BEARING, NEEDLEBEARING, NEEDLE
-
333235339 YOKE, CLUTCHYOKE, CLUTCH
-
345133731 PLUG, DRAINPLUG, DRAIN
-
357518172 SCREW, FLANGESCREW, FLANGE
-
363234869 ASM., SCREWASM., SCREW
-
373234484 SET, SCREWSET, SCREW
-
383235072 COLLAR, SHIFTCOLLAR, SHIFT
-
39TBD KIT, CLUTCH SHAFT ASM.KIT, CLUTCH SHAFT ASM.
-
403234868 BLADE, CLUTCH YOKEBLADE, CLUTCH YOKE
-
413235074 RING, RETAININGRING, RETAINING
-
423235075 CAGE, BALL BEARINGCAGE, BALL BEARING
-
433235076 SPRING, WAVESPRING, WAVE
-
443235077 BALLBALL
