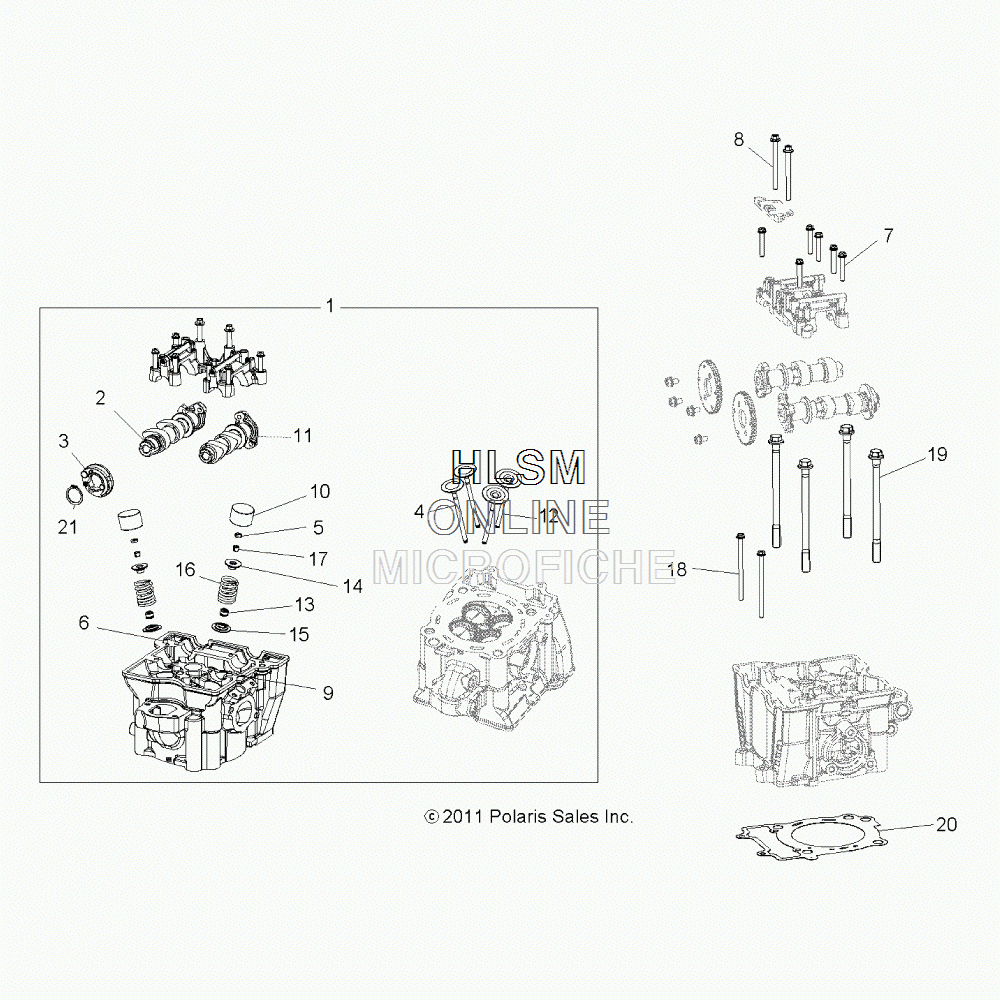

CYLINDER HEAD W/ CAMS AND VALVES для Polaris RANGER RZR 570 EFI (INTERNATIONAL) [R12VH57FX] - 2012 года выпуска`
-
№АртикулНазвание
-
11204289 ASM., CYLINDER HEAD (INCL. 2-17,21)ASM., CYLINDER HEAD (INCL. 2-17,21)
-
21204291 ASM., CAMSHAFTASM., CAMSHAFT
-
31204496 ASM., DECOMP SYSTEMASM., DECOMP SYSTEM
-
43022134 VALVE, INTAKE, STEELVALVE, INTAKE, STEEL
-
53022173-170 SHIM, VALVE LASH, 1.700MMSHIM, VALVE LASH, 1.700MM
-
53022173-172 SHIM, VALVE LASH, 1.725MMSHIM, VALVE LASH, 1.725MM
-
53022173-175 SHIM, VALVE LASH, 1.750MMSHIM, VALVE LASH, 1.750MM
-
53022173-178 SHIM, VALVE LASH, 1.775MMSHIM, VALVE LASH, 1.775MM
-
53022173-180 SHIM, VALVE LASH, 1.800MMSHIM, VALVE LASH, 1.800MM
-
53022173-182 SHIM, VALVE LASH, 1.825MMSHIM, VALVE LASH, 1.825MM
-
53022173-185 SHIM, VALVE LASH, 1.850MMSHIM, VALVE LASH, 1.850MM
-
53022173-188 SHIM, VALVE LASH, 1.875MMSHIM, VALVE LASH, 1.875MM
-
53022173-190 SHIM, VALVE LASH, 1.900MMSHIM, VALVE LASH, 1.900MM
-
53022173-192 SHIM, VALVE LASH, 1.925MMSHIM, VALVE LASH, 1.925MM
-
53022173-195 SHIM, VALVE LASH, 1.950MMSHIM, VALVE LASH, 1.950MM
-
53022173-198 SHIM, VALVE LASH, 1.975MMSHIM, VALVE LASH, 1.975MM
-
53022173-200 SHIM, VALVE LASH, 2.000MMSHIM, VALVE LASH, 2.000MM
-
53022173-202 SHIM, VALVE LASH, 2.025MMSHIM, VALVE LASH, 2.025MM
-
53022173-205 SHIM, VALVE LASH, 2.050MMSHIM, VALVE LASH, 2.050MM
-
53022173-208 SHIM, VALVE LASH, 2.075MMSHIM, VALVE LASH, 2.075MM
-
53022173-210 SHIM, VALVE LASH, 2.100MMSHIM, VALVE LASH, 2.100MM
-
53022173-212 SHIM, VALVE LASH, 2.125MMSHIM, VALVE LASH, 2.125MM
-
53022173-215 SHIM, VALVE LASH, 2.150MMSHIM, VALVE LASH, 2.150MM
-
53022173-218 SHIM, VALVE LASH, 2.175MMSHIM, VALVE LASH, 2.175MM
-
53022173-220 SHIM, VALVE LASH, 2.200MMSHIM, VALVE LASH, 2.200MM
-
53022173-222 SHIM, VALVE LASH, 2.225MMSHIM, VALVE LASH, 2.225MM
-
53022173-225 SHIM, VALVE LASH, 2.250MMSHIM, VALVE LASH, 2.250MM
-
53022173-228 SHIM, VALVE LASH, 2.275MMSHIM, VALVE LASH, 2.275MM
-
53022173-230 SHIM, VALVE LASH, 2.300MMSHIM, VALVE LASH, 2.300MM
-
53022173-232 SHIM, VALVE LASH, 2.325MMSHIM, VALVE LASH, 2.325MM
-
53022173-235 SHIM, VALVE LASH, 2.350MMSHIM, VALVE LASH, 2.350MM
-
53022173-238 SHIM, VALVE LASH, 2.375MMSHIM, VALVE LASH, 2.375MM
-
53022173-240 SHIM, VALVE LASH, 2.400MMSHIM, VALVE LASH, 2.400MM
-
53022173-242 SHIM, VALVE LASH, 2.425MMSHIM, VALVE LASH, 2.425MM
-
53022173-245 SHIM, VALVE LASH, 2.450MMSHIM, VALVE LASH, 2.450MM
-
53022173-248 SHIM, VALVE LASH, 2.475MMSHIM, VALVE LASH, 2.475MM
-
53022173-250 SHIM, VALVE LASH, 2.500MMSHIM, VALVE LASH, 2.500MM
-
53022173-252 SHIM, VALVE LASH, 2.525MMSHIM, VALVE LASH, 2.525MM
-
53022173-255 SHIM, VALVE LASH, 2.550MMSHIM, VALVE LASH, 2.550MM
-
53022173-258 SHIM, VALVE LASH, 2.575MMSHIM, VALVE LASH, 2.575MM
-
53022173-260 SHIM, VALVE LASH, 2.600MMSHIM, VALVE LASH, 2.600MM
-
53022173-262 SHIM, VALVE LASH, 2.625MMSHIM, VALVE LASH, 2.625MM
-
53022173-265 SHIM, VALVE LASH, 2.650MMSHIM, VALVE LASH, 2.650MM
-
53022173-268 SHIM, VALVE LASH,2.675 MMSHIM, VALVE LASH,2.675 MM
-
53022173-270 SHIM, VALVE LASH, 2.700MMSHIM, VALVE LASH, 2.700MM
-
53022173-272 SHIM, VALVE LASH, 2.725MMSHIM, VALVE LASH, 2.725MM
-
53022173-275 SHIM, VALVE LASH, 2.750MMSHIM, VALVE LASH, 2.750MM
-
53022173-278 SHIM, VALVE LASH, 2.775MMSHIM, VALVE LASH, 2.775MM
-
53022173-280 SHIM, VALVE LASH, 2.800MMSHIM, VALVE LASH, 2.800MM
-
53022173-282 SHIM, VALVE LASH, 2.825MMSHIM, VALVE LASH, 2.825MM
-
53022173-285 SHIM, VALVE LASH, 2.850MMSHIM, VALVE LASH, 2.850MM
-
53022173-288 SHIM, VALVE LASH, 2.875MMSHIM, VALVE LASH, 2.875MM
-
53022173-290 SHIM, VALVE LASH, 2.900MMSHIM, VALVE LASH, 2.900MM
-
53022173-292 SHIM, VALVE LASH, 2.925MMSHIM, VALVE LASH, 2.925MM
-
53022173-295 SHIM, VALVE LASH, 2.950MMSHIM, VALVE LASH, 2.950MM
-
53022173-298 SHIM, VALVE LASH, 2.975MMSHIM, VALVE LASH, 2.975MM
-
53022173-300 SHIM, VALVE LASH, 3.00MMSHIM, VALVE LASH, 3.00MM
-
65132835 PIN, DOWELPIN, DOWEL
-
77518576 SCREWSCREW
-
87519197 SCREWSCREW
-
97661977 DOWELDOWEL
-
103022443 TAPPET, BUCKET, VALVETAPPET, BUCKET, VALVE
-
113022299 CAMSHAFT, INTAKECAMSHAFT, INTAKE
-
123022349 VALVE, EXHAUSTVALVE, EXHAUST
-
133610161 SEAL, VALVE STEMSEAL, VALVE STEM
-
145136901 RETAINER, VALVERETAINER, VALVE
-
155910324 SEAT, VALVE SPRINGSEAT, VALVE SPRING
-
167043492 SPRING, VALVESPRING, VALVE
-
177081470 KEEPER, VALVEKEEPER, VALVE
-
187519153 SCREWSCREW
-
197519123 BOLT, HEADBOLT, HEAD
-
205813676 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
217710653 RING, SNAPRING, SNAP
