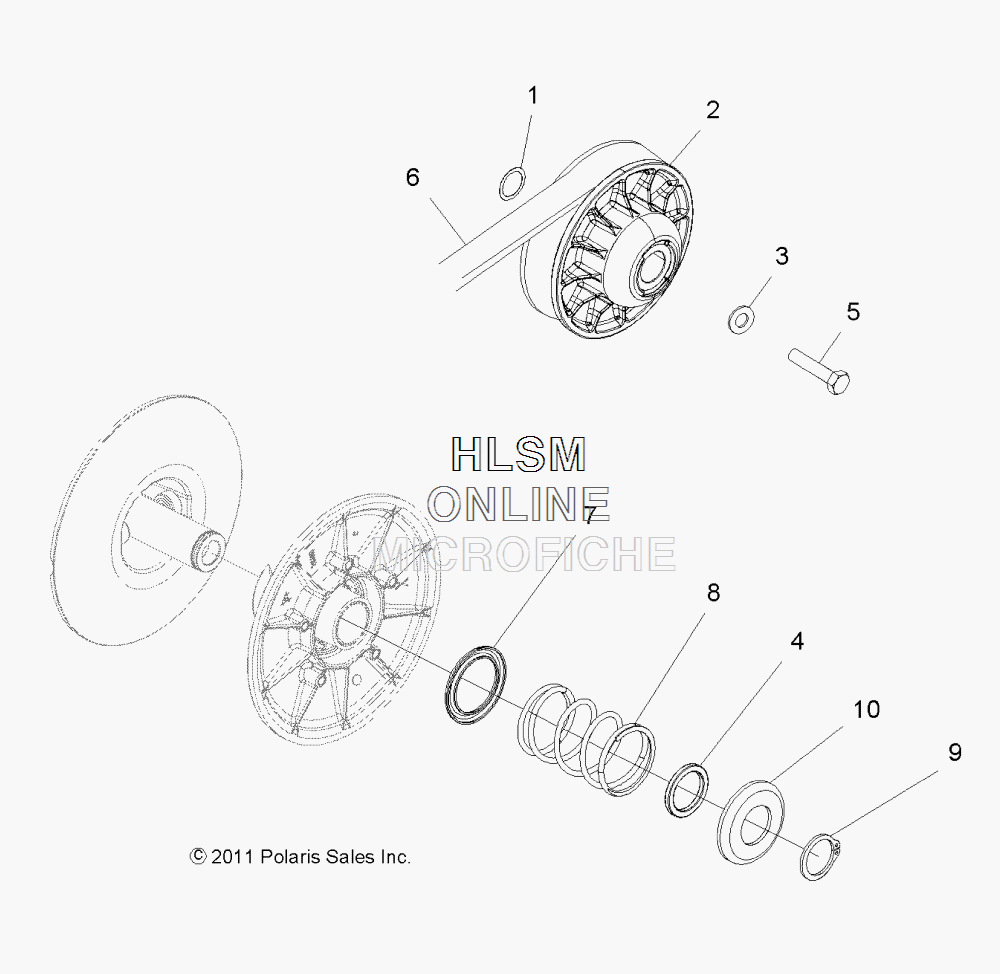

CLUTCH- SECONDARY для Polaris RANGER RZR 570 EFI [R12VH57AD] - 2012 года выпуска
-
№АртикулНазвание
-
17556120 BUSHING (.03 INCH)BUSHING (.03 INCH)
-
17556454 WASHER (.06 INCH)WASHER (.06 INCH)
-
21322973 ASM., DRIVEN (INCL. 7-10)ASM., DRIVEN (INCL. 7-10)
-
37555846 WASHER, FLATWASHER, FLAT
-
43235379 SPACER, DRIVEN CLUTCHSPACER, DRIVEN CLUTCH
-
57519210 SCREWSCREW
-
63211143 BELT, DRIVEBELT, DRIVE
-
73234616 RETAINER, SPRING, INNERRETAINER, SPRING, INNER
-
87043167 SPRING, COMPRESSION, BLACK/ALMONDSPRING, COMPRESSION, BLACK/ALMOND
-
97710522 RING, RETAININGRING, RETAINING
-
107710563 RETAINING, SPRING, OUTERRETAINING, SPRING, OUTER
