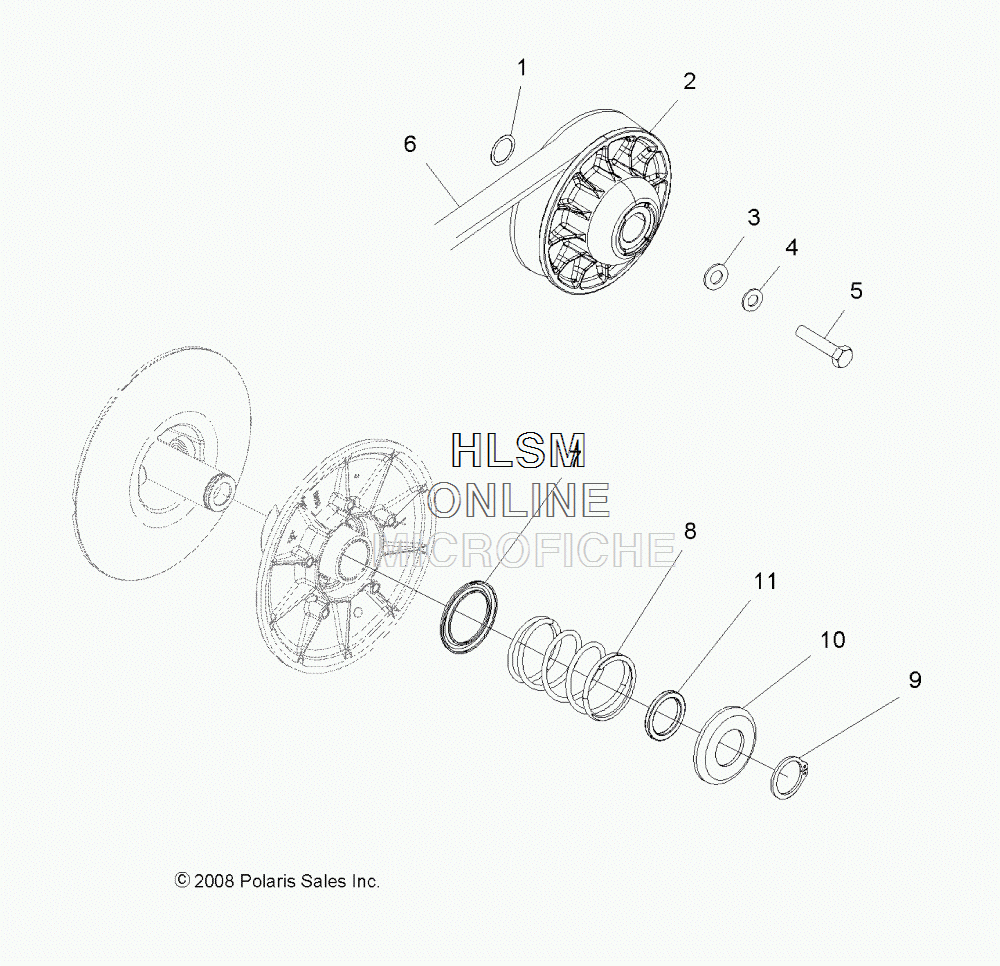

CLUTCH- SECONDARY для Polaris RANGER RZR 800 EFI w/ EPS - SUNSET RED [R12VH76EAS] - 2012 года выпуска
-
№АртикулНазвание
-
17556120 BUSHING (.03 INCH)BUSHING (.03 INCH)
-
17556454 WASHER (.06 INCH)WASHER (.06 INCH)
-
21322875 ASM., DRIVEN (INCL. 7-11)ASM., DRIVEN (INCL. 7-11)
-
35250562 WASHER, DOMEDWASHER, DOMED
-
47552901 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
57515382 BOLTBOLT
-
63211113 BELT, DRIVE (EBS)BELT, DRIVE (EBS)
-
63211133 BELT, DRIVE (HIGH PERFORMANCE ACCESSORY)BELT, DRIVE (HIGH PERFORMANCE ACCESSORY)
-
73234616 RETAINER, SPRING, INNERRETAINER, SPRING, INNER
-
87043167 SPRING, COMPRESSION, BLACK/ALMONDSPRING, COMPRESSION, BLACK/ALMOND
-
97710522 RING, RETAININGRING, RETAINING
-
107710563 RETAINING, SPRING, OUTERRETAINING, SPRING, OUTER
-
113234886 SPACERSPACER
