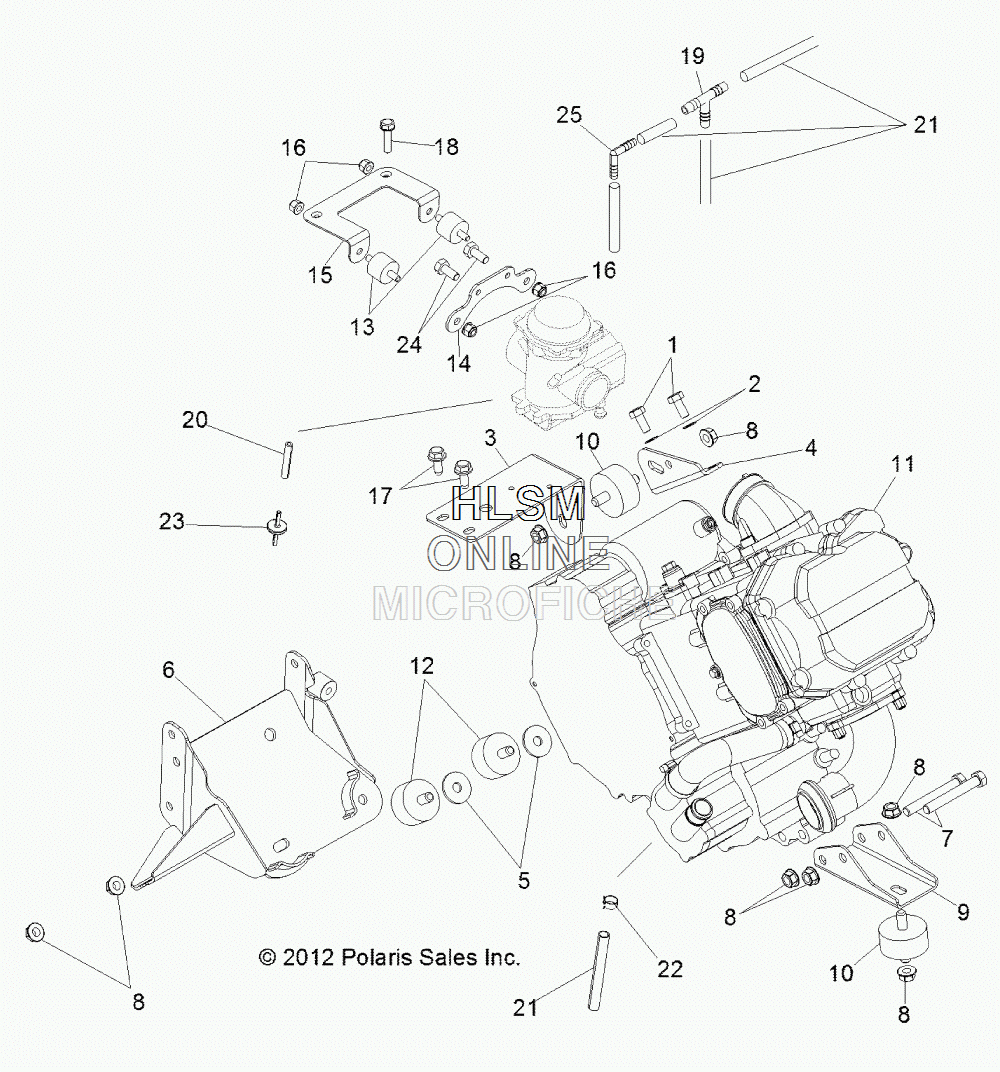

MOUNTING для Polaris RANGER 400 MIDSIZE SAGE GREEN (R13RH45AG) - 2013 года выпуска
-
№АртикулНазвание
-
17512315 BOLTBOLT
-
27552901 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
35252896 BRACKET, MOUNT, ENGINE, TOPBRACKET, MOUNT, ENGINE, TOP
-
45241453 MOUNT, ENGINE, TOPMOUNT, ENGINE, TOP
-
57555815 WASHERWASHER
-
61017359-329 MOUNT, ENGINE, REAR, BLACKMOUNT, ENGINE, REAR, BLACK
-
77515417 SCREWSCREW
-
87547263 NUT, FLANGE LOCKNUT, FLANGE LOCK
-
95248195 BRACKET, ENGINE MOUNT, LOWER, FRONTBRACKET, ENGINE MOUNT, LOWER, FRONT
-
103022071 ISOLATORISOLATOR
-
113090295 ENGINE, SHORT BLOCK, EH460PLE032ENGINE, SHORT BLOCK, EH460PLE032
-
123022076 ISOLATORISOLATOR
-
133110050 MOUNT, CARBMOUNT, CARB
-
145245206 BRACKET, CARB, DAMPENERBRACKET, CARB, DAMPENER
-
155253770 BRACKET, CARBBRACKET, CARB
-
167542153 NUTNUT
-
177518555 BOLTBOLT
-
187517916 SCREWSCREW
-
197052075 FITTING, TFITTING, T
-
208360009 LINE, FUELLINE, FUEL
-
218450003-1525 LINE, FUELLINE, FUEL
-
227080307 CLAMP, HOSECLAMP, HOSE
-
237051011 VALVE, VENT CHECKVALVE, VENT CHECK
-
243085698 SCREWSCREW
-
257052385 FITTINGFITTING
