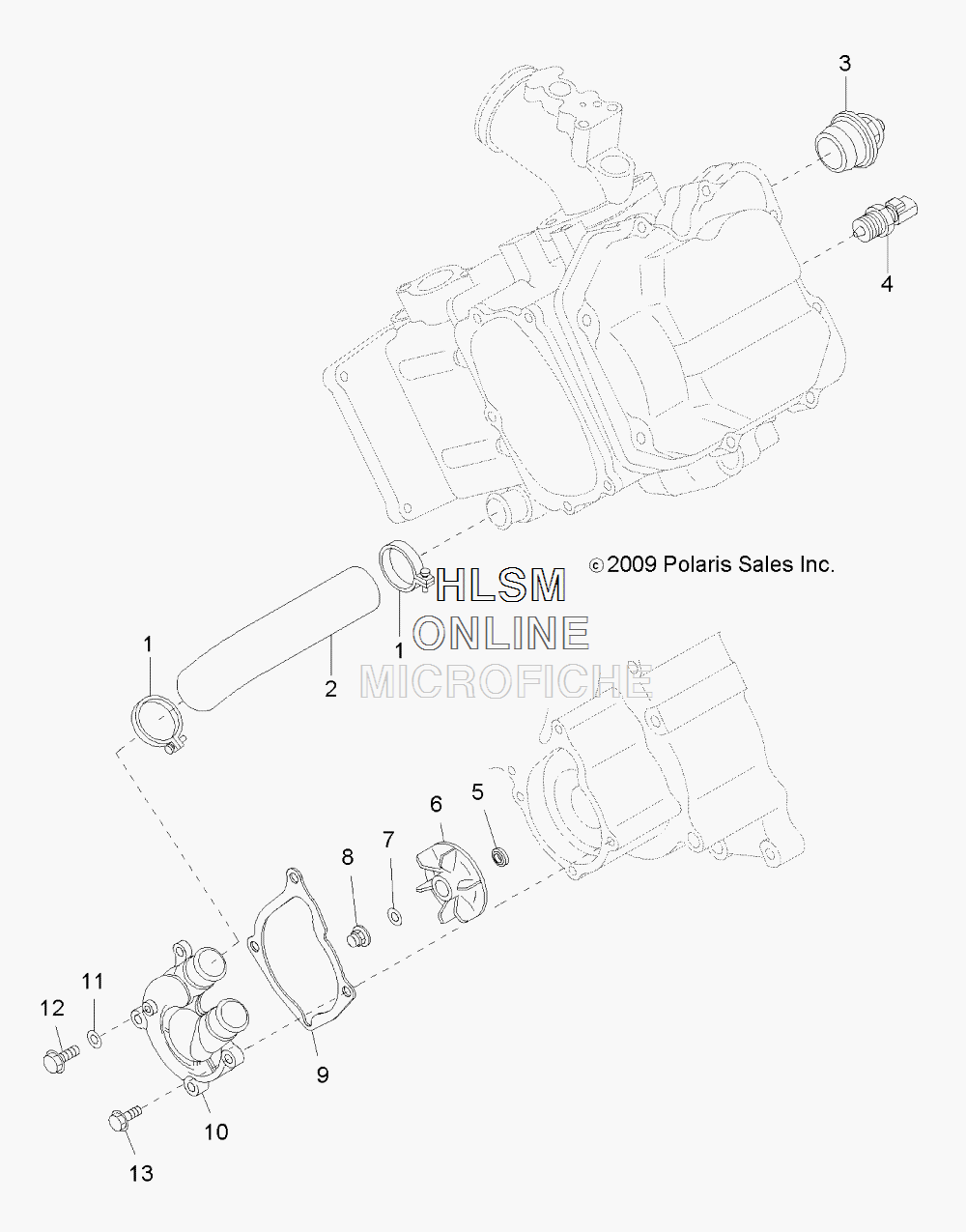

WATER PUMP для Polaris RANGER 500 CREW S. RED (R13WH50AR) - 2013 года выпуска
-
№АртикулНазвание
-
13086774 CLAMP, HOSECLAMP, HOSE
-
23090291 HOSE, MAINHOSE, MAIN
-
33084940 THERMOSTATTHERMOSTAT
-
43089892 SENSOR, WATER TEMPSENSOR, WATER TEMP
-
53084942 WASHER, SEALWASHER, SEAL
-
63084935 IMPELLERIMPELLER
-
73083138 GASKET, ALUMGASKET, ALUM
-
83085077 NUT, SELF LOCKNUT, SELF LOCK
-
93086840 GASKET, WATER PUMPGASKET, WATER PUMP
-
103085351 COVER, WATER PUMPCOVER, WATER PUMP
-
117555998 WASHER, FLATWASHER, FLAT
-
123085359 BOLT, FLANGEBOLT, FLANGE
-
133084877 BOLT, FLANGEBOLT, FLANGE
