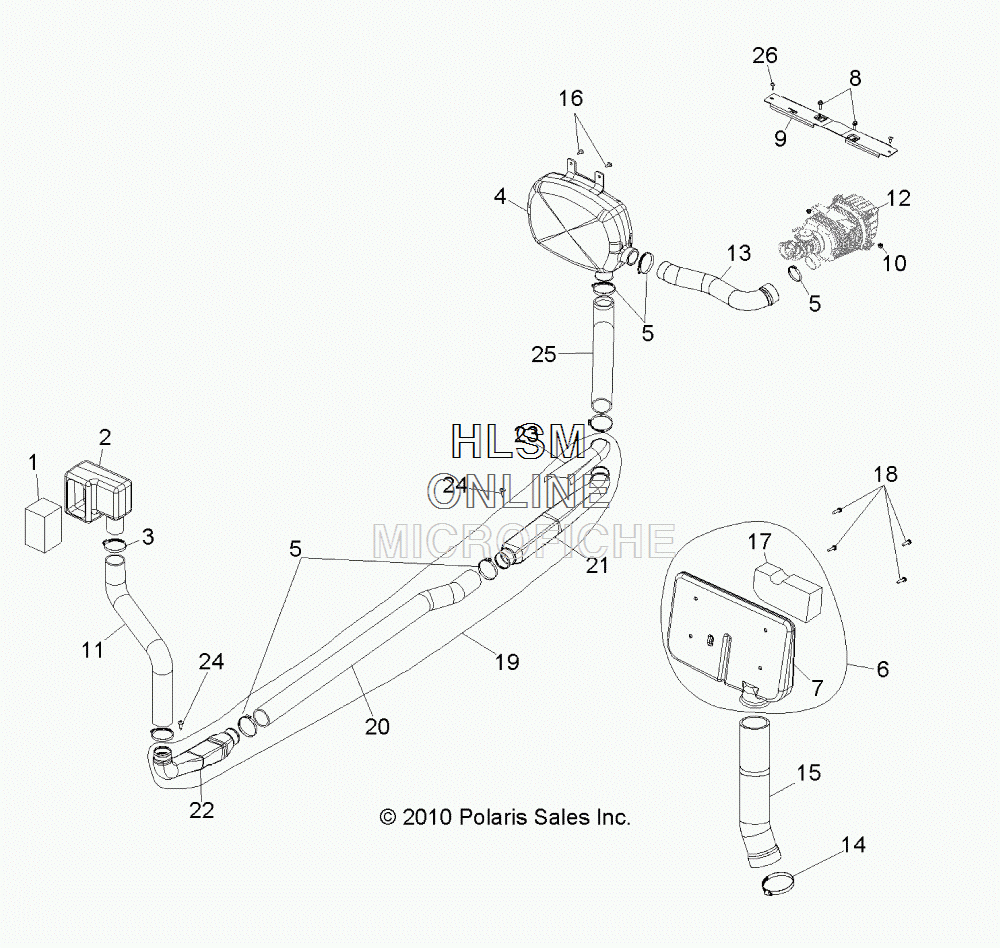

CLUTCH AIR INTAKE для Polaris RANGER 800 CREW SAGE GREEN (R13WH76AG) - 2013 года выпуска
-
№АртикулНазвание
-
15812253 FILTER, INTAKEFILTER, INTAKE
-
25437958 BOX, BAFFELING, SIDEBOX, BAFFELING, SIDE
-
37080451 CLAMP, HOSECLAMP, HOSE
-
45437693 BAFFEL, ENGINE, REARBAFFEL, ENGINE, REAR
-
57080451 CLAMP, HOSECLAMP, HOSE
-
61240594 ASM., BOX, AIR BAFFEL, CLUTCH (INCL. 7,17)ASM., BOX, AIR BAFFEL, CLUTCH (INCL. 7,17)
-
75438550 COVER, BAFFEL, CLUTCH, REARCOVER, BAFFEL, CLUTCH, REAR
-
87518514 BOLTBOLT
-
95254060-329 BRACKET, MOUNT, AIR BOX, BLACKBRACKET, MOUNT, AIR BOX, BLACK
-
107547332 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
115414033 HOSE, AIR BOX, FRONTHOSE, AIR BOX, FRONT
-
135414271 HOSE, INTAKE CLUTCHHOSE, INTAKE CLUTCH
-
147080413 CLAMP, NARROW BANDCLAMP, NARROW BAND
-
155438491 HOSE, ENGINE INTAKE, REARHOSE, ENGINE INTAKE, REAR
-
167517916 SCREWSCREW
-
175813607 FILTER, CLUTCH INTAKEFILTER, CLUTCH INTAKE
-
187519274 BOLT, HEADBOLT, HEAD
-
191240477 ASM., DUCT, AIR INTAKE (INCL. QTY 2 OF 5,20-23)ASM., DUCT, AIR INTAKE (INCL. QTY 2 OF 5,20-23)
-
205413746 HOSE, AIR INTAKE, MID. LOWERHOSE, AIR INTAKE, MID. LOWER
-
215438074 DUCT, AIR INTAKE, REAR, LOWERDUCT, AIR INTAKE, REAR, LOWER
-
225438075 DUCT, AIR INTAKE, FRONT, LOWERDUCT, AIR INTAKE, FRONT, LOWER
-
235810128 TAPE, FOILTAPE, FOIL
-
247517685 SCREWSCREW
-
255414032 HOSE, AIR BOX, LOWERHOSE, AIR BOX, LOWER
-
267518280 SCREWSCREW
