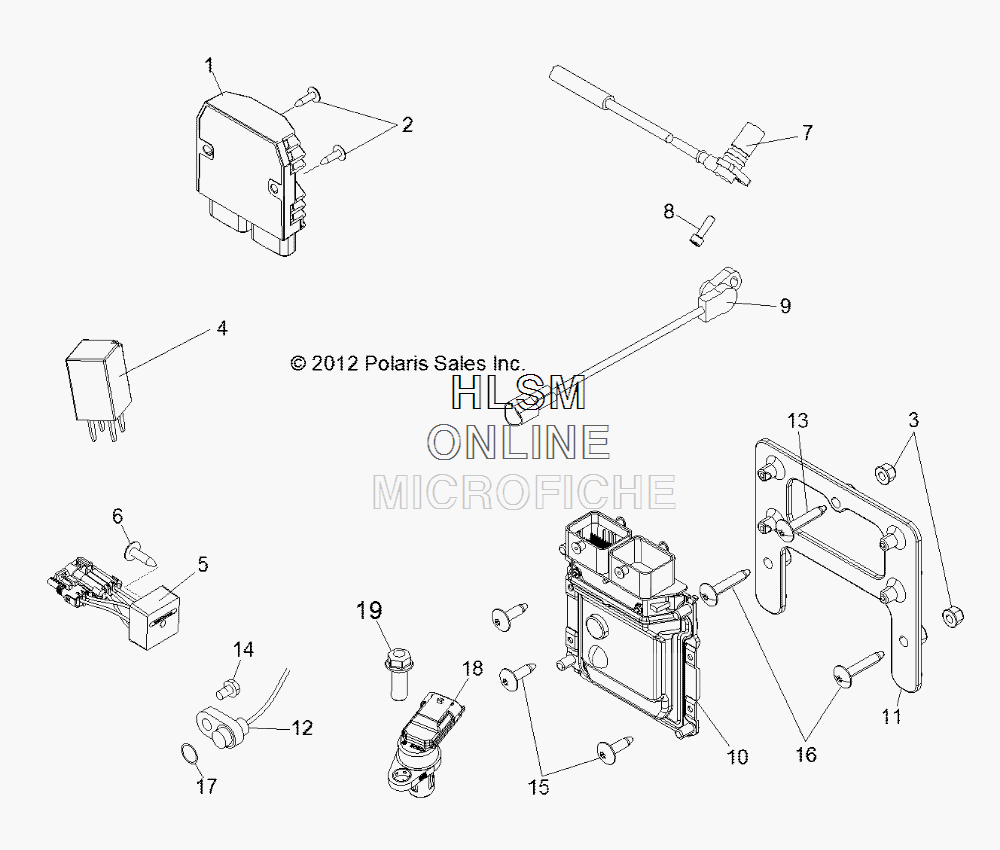

REGULATOR- RELAYS- SENSORS AND ECU для Polaris RANGER 800 EFI MIDSIZE CAMO (R13RH76AN) - 2013 года выпуска
-
№АртикулНазвание
-
14012941 REGULATORREGULATOR
-
27517685 SCREWSCREW
-
37547274 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
44011283 RELAY, SEALEDRELAY, SEALED
-
54012829 RELAY, SOLID STATE (DIFFERENTIAL CONTROL)RELAY, SOLID STATE (DIFFERENTIAL CONTROL)
-
67518375 SCREWSCREW
-
72410720 SENSOR, CRANK POSITIONSENSOR, CRANK POSITION
-
87519224 SCREWSCREW
-
93131705 ASM., SENSOR (MUST ALSO ORDER O-RING)ASM., SENSOR (MUST ALSO ORDER O-RING)
-
93131682 O-RING (USED W/TPS)O-RING (USED W/TPS)
-
104012838 ECUECU
-
115438837-070 MOUNT, REAR, ECU, BLACKMOUNT, REAR, ECU, BLACK
-
124013908 SENSOR, SPEED (INCLUDED W/MAIN GEARCASE)SENSOR, SPEED (INCLUDED W/MAIN GEARCASE)
-
137518529 SCREWSCREW
-
143234247 SCREWSCREW
-
157519091 SCREWSCREW
-
167518530 SCREWSCREW
-
173234302 O-RING (INCLUDED W/MAIN GEARCASE)O-RING (INCLUDED W/MAIN GEARCASE)
-
182410835 SENSOR, PHASESENSOR, PHASE
-
197519329 SCREWSCREW
