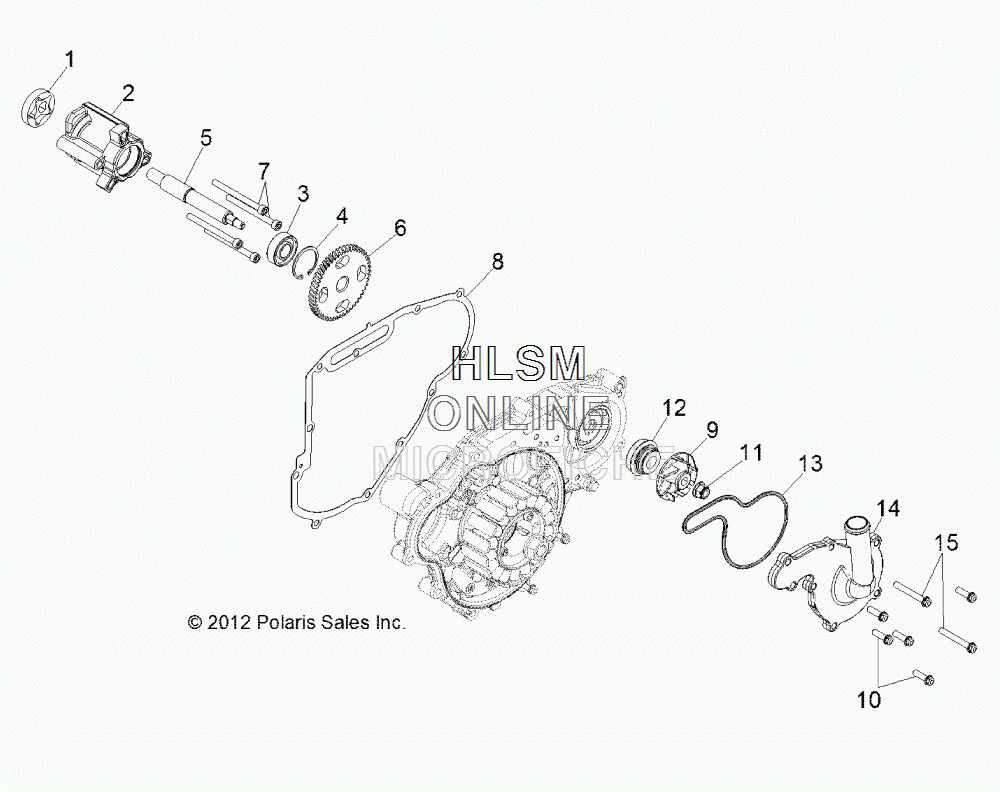

OIL PUMP AND WATER PUMP для Polaris RANGER 800 EFI MIDSIZE SAGE GREEN (R13RH76AG) - 2013 года выпуска
-
№АртикулНазвание
-
-2203012 KIT, OIL PUMP (INCL. 1-6)KIT, OIL PUMP (INCL. 1-6)
-
11202588 ASM., GEROTOR (BUILT 5/06/13 AND BEFORE)ASM., GEROTOR (BUILT 5/06/13 AND BEFORE)
-
11204577 ASM., GEROTOR (BUILT 5/07/13 AND AFTER)ASM., GEROTOR (BUILT 5/07/13 AND AFTER)
-
25135094 HOUSING, OIL PUMPHOUSING, OIL PUMP
-
33514561 BEARING, BALLBEARING, BALL
-
47710531 RING, RETAININGRING, RETAINING
-
55135650 SHAFT, OIL/WATER PUMPSHAFT, OIL/WATER PUMP
-
77517807 SCREWSCREW
-
85812936 GASKET, COVER, MAGGASKET, COVER, MAG
-
95433684 IMPELLER, WATER PUMPIMPELLER, WATER PUMP
-
107519224 SCREWSCREW
-
117547332 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
123610075 SEAL, WATER PUMPSEAL, WATER PUMP
-
135812571 SEAL, WATER PUMPSEAL, WATER PUMP
-
145632604 COVER, WATER PUMPCOVER, WATER PUMP
-
157519209 SCREWSCREW
