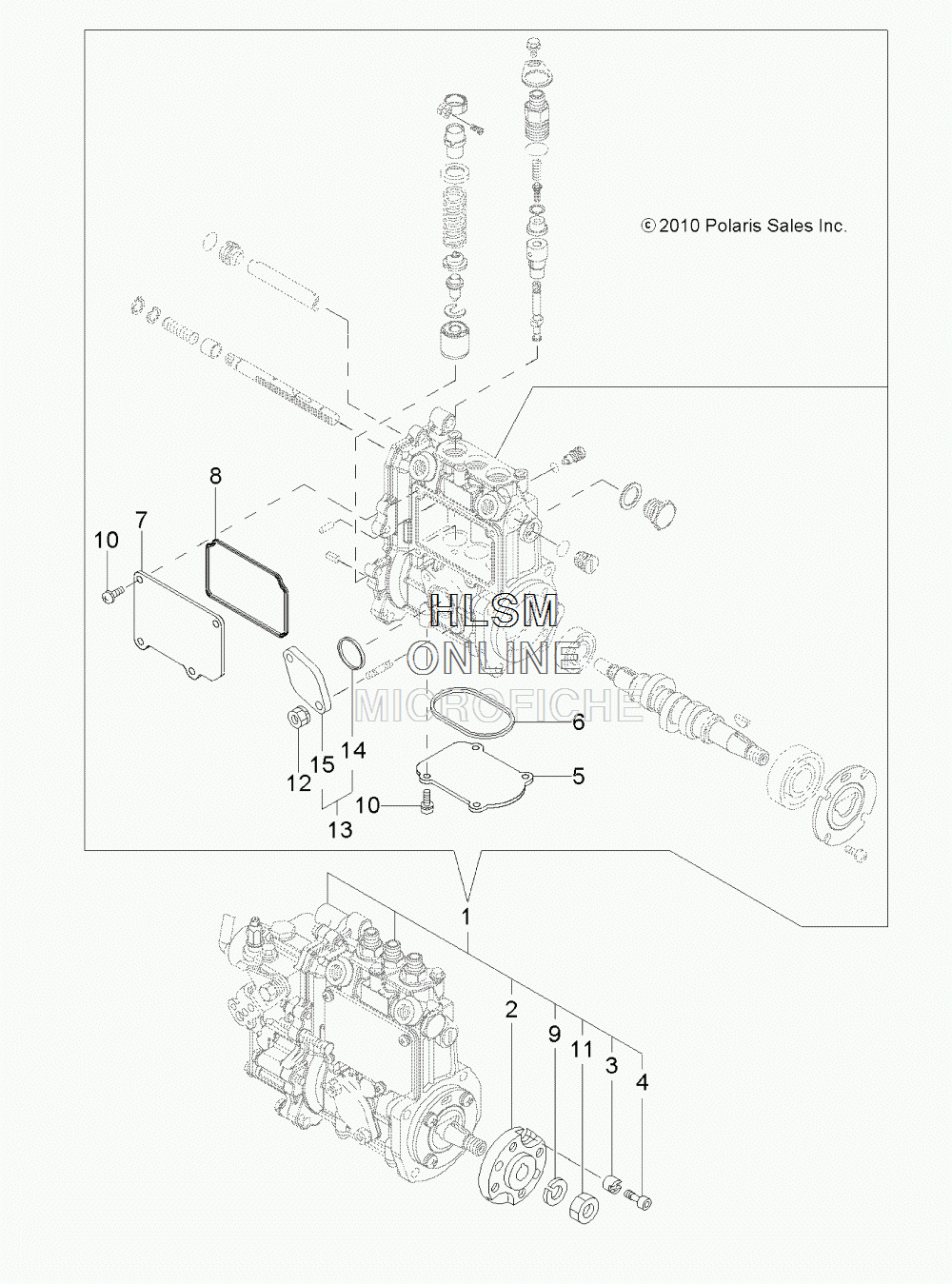

FUEL INJECTION PUMP для Polaris RANGER 900 DIESEL SAGE BRUSH METALLIC (R13TH90DG) - 2013 года выпуска
-
№АртикулНазвание
-
13070143 ASM., INJECTION PUMP (INCL. 2-17)ASM., INJECTION PUMP (INCL. 2-17)
-
13070143-R ASM., INJECTION PUMP, RE MFGASM., INJECTION PUMP, RE MFG
-
13070143-X ASM., INJECTION PUMP, COREASM., INJECTION PUMP, CORE
-
23070150 FLANGEFLANGE
-
33070207 COLLARCOLLAR
-
43070208 BOLTBOLT
-
53070221 COVER, PUMP, BOTTOMCOVER, PUMP, BOTTOM
-
63070222 GASKET, LOWER, COVERGASKET, LOWER, COVER
-
73070223 COVER, BODY SIDECOVER, BODY SIDE
-
83070224 GASKET, SIDE COVERGASKET, SIDE COVER
-
93070227 WASHER, SPRINGWASHER, SPRING
-
103070231 SCREWSCREW
-
113070234 NUTNUT
-
123070235 NUTNUT
-
13TBD ASM., COVER, BLIND (INCL. 14,15)ASM., COVER, BLIND (INCL. 14,15)
-
143070236 GASKETGASKET
-
153070317 PLATE, COVERPLATE, COVER
