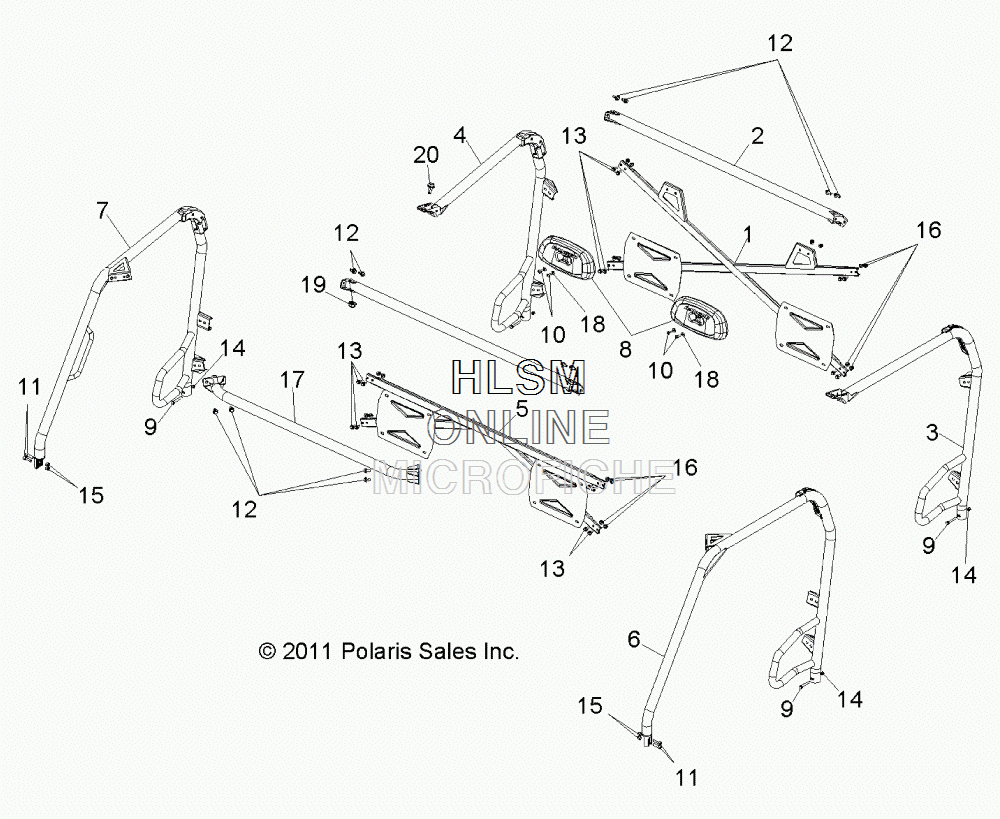

CAB FRAME для Polaris RANGER CREW 900 DIESEL [R14WH90DG] - SAGE BRUSH METALLIC - 2014 года выпуска
-
№АртикулНазвание
-
11019940-521 FRAME, CAB, CROSSFRAME, CAB, CROSS
-
21017169-521 FRAME, CAB, TOP, CENTERFRAME, CAB, TOP, CENTER
-
31019983-521 FRAME, CAB, REAR, LEFT HANDFRAME, CAB, REAR, LEFT HAND
-
41019984-521 FRAME, CAB, REAR, RIGHT HANDFRAME, CAB, REAR, RIGHT HAND
-
51019939-521 FRAME, CAB, CROSSFRAME, CAB, CROSS
-
61019985-521 FRAME, CAB, FRONT, LEFT HANDFRAME, CAB, FRONT, LEFT HAND
-
71019986-521 FRAME, CAB, FRONT, RIGHT HANDFRAME, CAB, FRONT, RIGHT HAND
-
85437938-070 HEADREST, BLACKHEADREST, BLACK
-
97515339 BOLTBOLT
-
107518280 SCREWSCREW
-
117517935 SCREWSCREW
-
127518460 BOLTBOLT
-
137518702 BOLTBOLT
-
147542343 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
157542451 NUT, NYLOKNUT, NYLOK
-
167547317 NUT, HEX, FLANGENUT, HEX, FLANGE
-
171017167-521 FRAME, CAB, FRONT TOPFRAME, CAB, FRONT TOP
-
187555935 WASHERWASHER
-
197547333 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
207519059 SCREWSCREW
