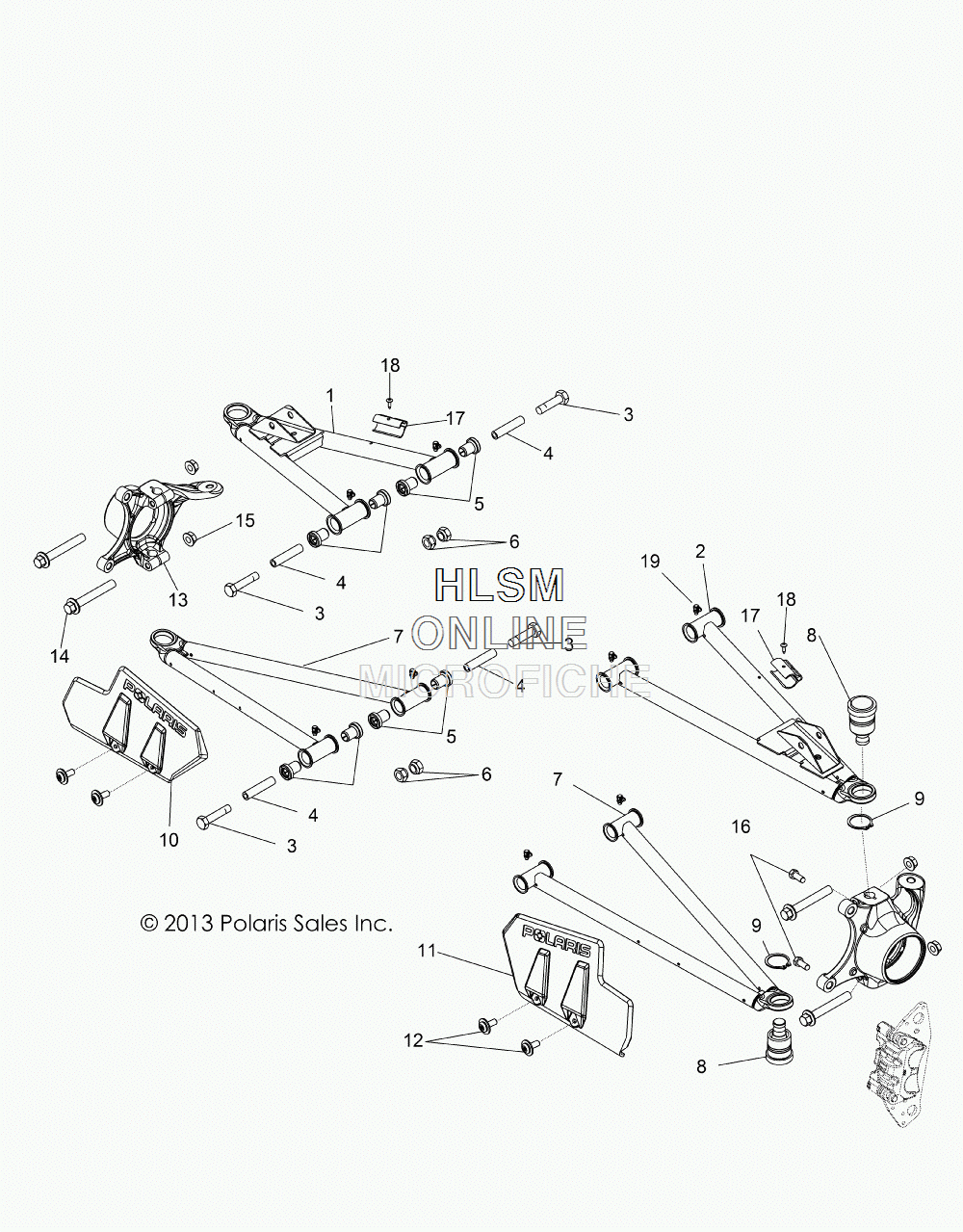

CONTROL ARMS - FRONT для Polaris RANGER DIESEL INTL (2014) [R14TH90FX] - 2014 года выпуска
-
№АртикулНазвание
-
11543337-458 ARM, CONTROL, UPPER, FRONT, MATTE BLACK, RIGHT HANDARM, CONTROL, UPPER, FRONT, MATTE BLACK, RIGHT HAND
-
21543336-458 ARM, CONTROL, UPPER, FRONT, MATTE, BLACK, LEFT HANDARM, CONTROL, UPPER, FRONT, MATTE, BLACK, LEFT HAND
-
37519043 SCREWSCREW
-
45137591 SHAFT, PIVOTSHAFT, PIVOT
-
51543326 ASM., BUSHING, W/SEALASM., BUSHING, W/SEAL
-
67547333 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
71543338-458 ARM, CONTROL, LOWER, FRONT, MATTE BLACKARM, CONTROL, LOWER, FRONT, MATTE BLACK
-
87061187 JOINT, BALL, LONG STUDJOINT, BALL, LONG STUD
-
97710533 RING, RETAINER, EXTERNALRING, RETAINER, EXTERNAL
-
105437545-070 SHIELD, CV, FRONT, RIGHT HAND, BLACKSHIELD, CV, FRONT, RIGHT HAND, BLACK
-
115437544-070 SHIELD, CV, FRONT, LEFT HAND, BLACKSHIELD, CV, FRONT, LEFT HAND, BLACK
-
127512084 SCREWSCREW
-
135136948 CARRIER, WHEEL BEARING, LEFT HANDCARRIER, WHEEL BEARING, LEFT HAND
-
135136949 CARRIER, WHEEL BEARING, RIGHT HANDCARRIER, WHEEL BEARING, RIGHT HAND
-
147516733 SCREWSCREW
-
157547405 NUT, NYLOKNUT, NYLOK
-
167518760 BOLT (FRONT CALIPER ATTACH)BOLT (FRONT CALIPER ATTACH)
-
175439192 RETAINER, BRAKE LINERETAINER, BRAKE LINE
-
187621323 RIVETRIVET
-
197080510 FITTING, ZERKFITTING, ZERK
