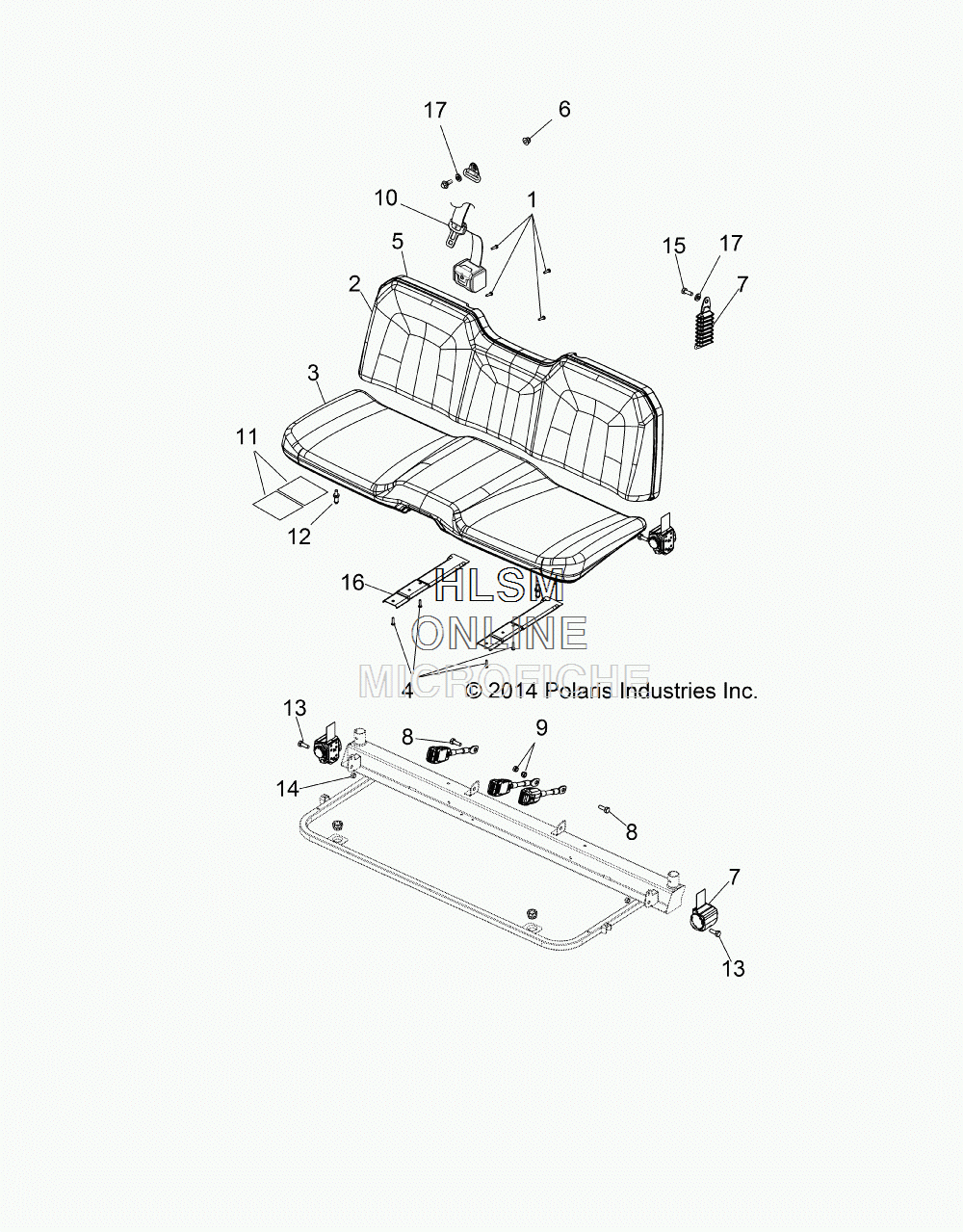

SEAT AND BASE для Polaris RGR 4X4 900D HIPPO MPS (2014) [R14WH9EMD] - 2014 года выпуска
-
№АртикулНазвание
-
17519274 SCREWSCREW
-
22684885-070 ASM., SEAT, BACK, BLACKASM., SEAT, BACK, BLACK
-
32684884-070 ASM., SEAT, BOTTOM, BLACK (INCL. TAB, RIVET, 12)ASM., SEAT, BOTTOM, BLACK (INCL. TAB, RIVET, 12)
-
35437903 TAB, MOUNT, SEATTAB, MOUNT, SEAT
-
37621479 RIVETRIVET
-
47518158 SCREWSCREW
-
55450902-070 COVER, SEAT BACK, BLACKCOVER, SEAT BACK, BLACK
-
67540000 NUT, NYLOKNUT, NYLOK
-
72880129 KIT, SEAT BELT, 3 POINT (INCL. 13-15)KIT, SEAT BELT, 3 POINT (INCL. 13-15)
-
87519730 SCREWSCREW
-
97547441 NUTNUT
-
102634093 ASM., SEAT BELT, CENTERASM., SEAT BELT, CENTER
-
115812295 FOIL, SEATFOIL, SEAT
-
125632536 PIN, SEAT LATCHPIN, SEAT LATCH
-
157519255 BOLT, SHOULDERBOLT, SHOULDER
-
165253488-329 BRACKET, SUPPORT, SEAT BASE, BLACKBRACKET, SUPPORT, SEAT BASE, BLACK
-
175813829 WASHER, SEAT BELT, RUBBERWASHER, SEAT BELT, RUBBER
