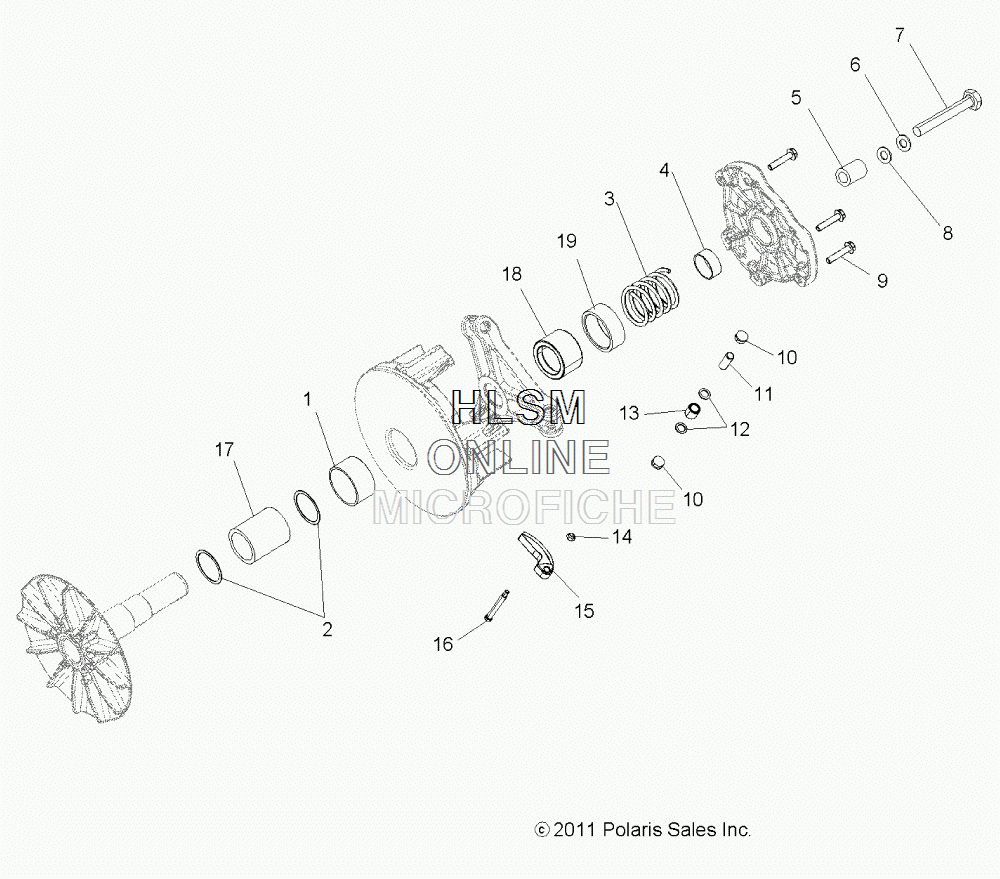

CLUTCH- PRIMARY для Polaris RANGER 570 FULL-SIZE POLARIS PURSUIT CAMO [R15RTA57AC] - 2015 года выпуска
-
№АртикулНазвание
-
--1323255 ASM., CLUTCH, DRIVE, BASIC, BEARING (INCL. ALL LESS 3,5-8,15,19)ASM., CLUTCH, DRIVE, BASIC, BEARING (INCL. ALL LESS 3,5-8,15,19)
-
13514492 BEARINGBEARING
-
27556335 WASHER, CLUTCHWASHER, CLUTCH
-
37043594 SPRING, CLUTCH, 35-240SPRING, CLUTCH, 35-240
-
43514684 COVER, BEARINGCOVER, BEARING
-
55430261 BUSHINGBUSHING
-
67575202 WASHER, INTERLOCKWASHER, INTERLOCK
-
77519287 BOLT, CLUTCHBOLT, CLUTCH
-
85210748 WASHER, FLATWASHER, FLAT
-
97518062 SCREWSCREW
-
105439254 BUTTON, CLUTCHBUTTON, CLUTCH
-
115020422 PIN, ROLLERPIN, ROLLER
-
125438247 WASHER, CLUTCH, SPIDER ROLLERWASHER, CLUTCH, SPIDER ROLLER
-
131321457 ASM., ROLLER AND BUSHINGASM., ROLLER AND BUSHING
-
147541906 NUT, FLEXLOCNUT, FLEXLOC
-
155632409 WEIGHT, SHIFT, 25-52G, PMWEIGHT, SHIFT, 25-52G, PM
-
167512266 BOLT, SHOULDERBOLT, SHOULDER
-
173514609 BEARING, NEEDLEBEARING, NEEDLE
-
185633000 SPACER, CLUTCH, PMSPACER, CLUTCH, PM
-
195438823 SPACER, CLUTCH, LIMITERSPACER, CLUTCH, LIMITER
