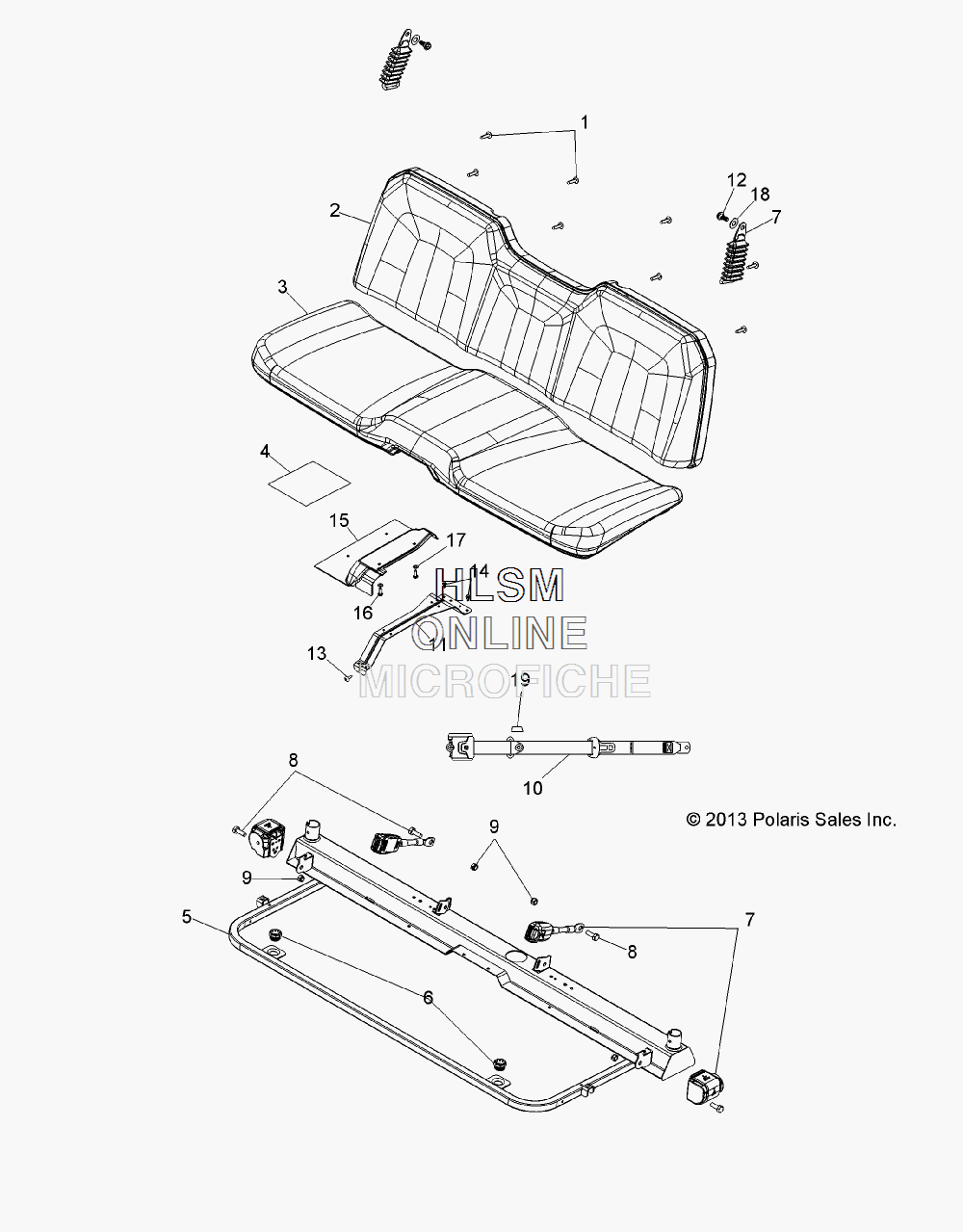

SEAT AND BASE для Polaris RANGER 6X6 AVALANCHE GRAY [R15RAA76AJ] - 2015 года выпуска
-
№АртикулНазвание
-
17519274 SCREWSCREW
-
22684885-070 ASM., SEAT, BACK, BLACKASM., SEAT, BACK, BLACK
-
25450902-070 COVER, SEAT BACK, BLACKCOVER, SEAT BACK, BLACK
-
32684884-070 ASM., SEAT, BOTTOM, BLACKASM., SEAT, BOTTOM, BLACK
-
32204383 KIT, SEAT PIN REPAIR (REPLACES 1 SEAT PIN)KIT, SEAT PIN REPAIR (REPLACES 1 SEAT PIN)
-
35437903 TAB, MOUNT, SEATTAB, MOUNT, SEAT
-
37621479 RIVETRIVET
-
45810128 FOILFOIL
-
51019938-458 BASE, CAB/SEAT, MATTE BLACKBASE, CAB/SEAT, MATTE BLACK
-
65412507 GROMMETGROMMET
-
72635049 ASM., SEAT BELT, 3 POINT (INCL. 12)ASM., SEAT BELT, 3 POINT (INCL. 12)
-
87519730 SCREWSCREW
-
97547441 NUT, NYLONNUT, NYLON
-
102635051 ASM., SEAT BELT, 3 POINT, CENTERASM., SEAT BELT, 3 POINT, CENTER
-
115255263-329 BRACKET, SEAT SUPPORT CENTER, BLACKBRACKET, SEAT SUPPORT CENTER, BLACK
-
127519255 BOLT, SHOULDERBOLT, SHOULDER
-
137518280 SCREWSCREW
-
147661855 RIVETRIVET
-
155813738 SHIELD, SEAT BASESHIELD, SEAT BASE
-
167519290 SCREWSCREW
-
177555859 WASHER, FLATWASHER, FLAT
-
185813829 WASHER, SEATBELT, RUBBERWASHER, SEATBELT, RUBBER
-
195450708 CAP, BOLT HEADCAP, BOLT HEAD
