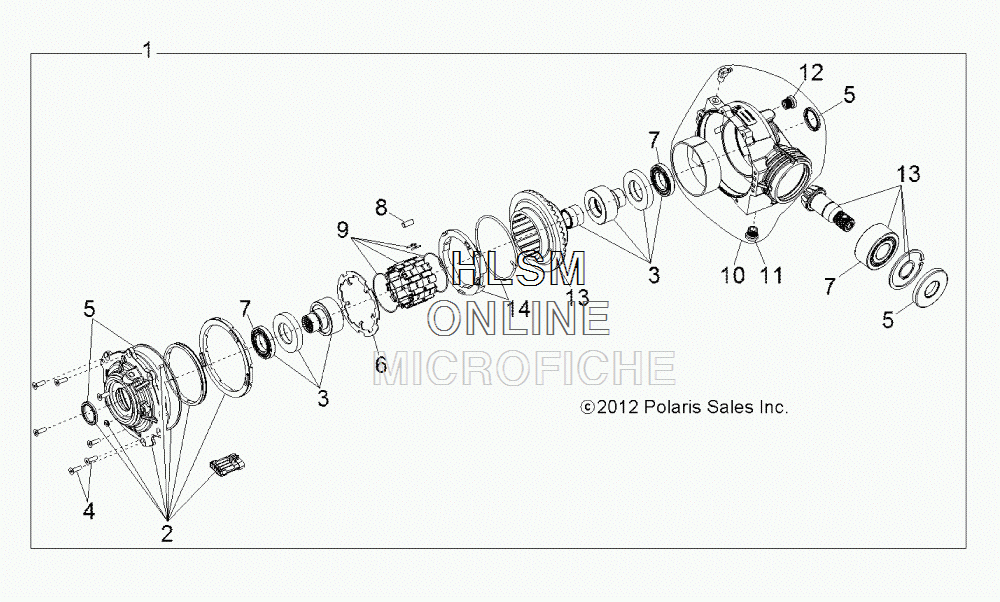

FRONT GEARCASE INTERNALS для Polaris RANGER CREW 1000 DIESEL SAGE GREEN [R15RUAD1AA] - 2015 года выпуска
-
№АртикулНазвание
-
11333285 ASSY, FRONT GEARCASE W/2-13ASSY, FRONT GEARCASE W/2-13
-
23235168 ASSY, COVER OUTPUTASSY, COVER OUTPUT
-
33235169 KIT, HUB ASSY W/BUSHING, HUB SUB. ASSY AND NYLON SPACERKIT, HUB ASSY W/BUSHING, HUB SUB. ASSY AND NYLON SPACER
-
43235170 KIT, FASTENER W/ALL FASTENERSKIT, FASTENER W/ALL FASTENERS
-
53235171 KIT, SEAL REPAIR W/ALL SEALSKIT, SEAL REPAIR W/ALL SEALS
-
63235485 PLATE, ARMATURE, 4WDPLATE, ARMATURE, 4WD
-
73235174 BEARING, PINION W/ALL BEARINGSBEARING, PINION W/ALL BEARINGS
-
83234393 KIT, ROLLER W/COMPLETE SET OF ROLLERKIT, ROLLER W/COMPLETE SET OF ROLLER
-
93235261 ASSY, ROLL CAGE ZN, 3235625, W/ROLL CAGE AND SPRING WIRE FOR H-CLIPASSY, ROLL CAGE ZN, 3235625, W/ROLL CAGE AND SPRING WIRE FOR H-CLIP
-
93235262 ASSY, ROLL CAGE ALUM, HIGH PERFORMANCE ACCESSORY W/CLIP SETASSY, ROLL CAGE ALUM, HIGH PERFORMANCE ACCESSORY W/CLIP SET
-
103235440 KIT, GEARCASE ASSY W/HOSE FITTING, BUSHING, SEAL, GEARCASE, FILL PLUG AND DRAIN PLUGKIT, GEARCASE ASSY W/HOSE FITTING, BUSHING, SEAL, GEARCASE, FILL PLUG AND DRAIN PLUG
-
112203738 PLUG, DRAINPLUG, DRAIN
-
122203739 PLUG, FILLPLUG, FILL
-
133235636 KIT, GEAR HOUSING AND PINION W/RING GEAR ASSY, PINION, BEARING, INTERNAL RING AND SHAFT RINGKIT, GEAR HOUSING AND PINION W/RING GEAR ASSY, PINION, BEARING, INTERNAL RING AND SHAFT RING
-
143235712 KIT, SPRING W/TORSION SPRING AND SPRINT RETAINER ASSYKIT, SPRING W/TORSION SPRING AND SPRINT RETAINER ASSY
