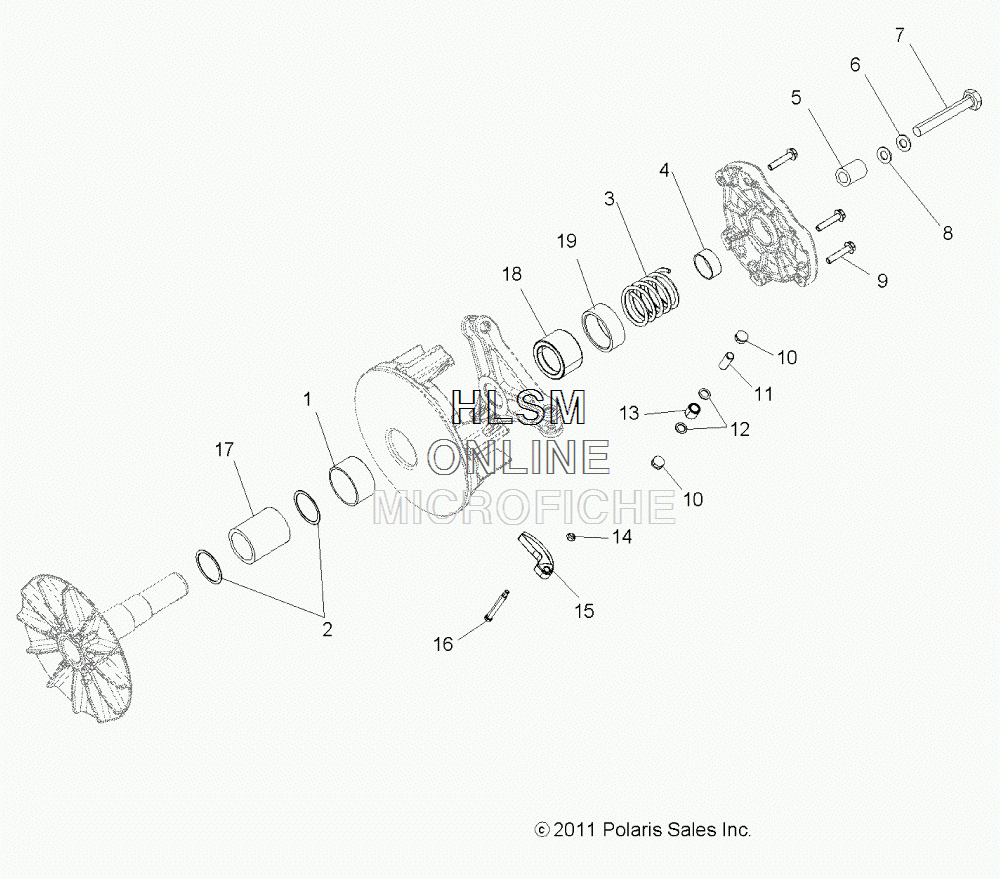

CLUTCH- PRIMARY для Polaris RANGER CREW 570 EPS FULL-SIZE POLARIS PURSUIT CAMO [R15RUE57AC] - 2015 года выпуска
-
№АртикулНазвание
-
--1323255 ASM., CLUTCH, DRIVE, BASIC, BEARING (INCL. ALL LESS 3,5-8,15)ASM., CLUTCH, DRIVE, BASIC, BEARING (INCL. ALL LESS 3,5-8,15)
-
13514492 BEARINGBEARING
-
27556335 WASHER, CLUTCHWASHER, CLUTCH
-
37043594 SPRING, CLUTCH, 35-240SPRING, CLUTCH, 35-240
-
43514684 COVER, BEARINGCOVER, BEARING
-
55430261 BUSHINGBUSHING
-
67575202 WASHER, INTERLOCKWASHER, INTERLOCK
-
77519287 BOLT, CLUTCHBOLT, CLUTCH
-
85210748 WASHER, FLATWASHER, FLAT
-
97518062 SCREWSCREW
-
105439254 BUTTON, CLUTCHBUTTON, CLUTCH
-
115020422 PIN, ROLLERPIN, ROLLER
-
125438247 WASHER, CLUTCH, SPIDER ROLLERWASHER, CLUTCH, SPIDER ROLLER
-
131321457 ASM., ROLLER AND BUSHINGASM., ROLLER AND BUSHING
-
147541906 NUT, FLEXLOCNUT, FLEXLOC
-
155632409 WEIGHT, SHIFT, 25-52G, PMWEIGHT, SHIFT, 25-52G, PM
-
167512266 BOLT, SHOULDERBOLT, SHOULDER
-
173514609 BEARING, NEEDLEBEARING, NEEDLE
-
185633000 SPACER, CLUTCHSPACER, CLUTCH
-
195438823 SPACER, CLUTCH, LIMITERSPACER, CLUTCH, LIMITER
Все узлы модели:
- AIR INTAKE SYSTEM W/CLUTCH
- BATTERY W/BRACKET
- BOX ASM.
- BOX MOUNTING AND LATCH
- BREATHER
- BUMPER- FRONT
- CAB FRAME
- CAM CHAIN W/ SPROCKET
- CLUTCH COVER AND DUCTING
- • CLUTCH- PRIMARY
- CLUTCH- SECONDARY
- CONTROL ARMS - FRONT
- COOLING SYSTEM
- CRANKCASE
- CRANKSHAFT W/ PISTON AND BALANCE SHAFT
- CYLINDER
- CYLINDER HEAD W/ CAMS AND VALVES
- DASH AND GLOVEBOX
- DASH INSTRUMENTS AND CONTROLS
- DECALS
- ENGINE AND TRANSMISSION MOUNTING
- EXHAUST
- FLOOR AND FENDERS- FRONT
- FLOOR AND FENDERS- REAR
- FRAME
- FRONT CALIPER
- FRONT GEARCASE INTERNALS
- FRONT GEARCASE MOUNTING
- FRONT HALF SHAFT
- FRONT PROP SHAFT
- FRONT SHOCK
- FUEL TANK ASM.
- GEAR SELECTOR W/DIFFERENTIAL LOCK
- HEADLIGHTS- TAILLIGHTS AND BULBS
- HOOD AND FRONT FASCIA
- IGNITION SYSTEM
- LONG BLOCK ASSY.
- MAIN GEARCASE
- MASTER CYLINDER AND BRAKE LINES
- MASTER CYLINDER MOUNTING AND PEDAL
- OIL FILTER W/ DIPSTICK
- OIL PUMP
- REAR CALIPER
- REAR DRIVE SHAFT
- REAR SHOCK
- REAR SUSPENSION
- REGULATOR AND RELAYS
- SEAT
- SENSORS
- SIDE NETS
- STARTER DRIVE
- STATOR COVER W/ FLYWHEEL
- STEERING ASM.
- STORAGE BOX- REAR
- TAILGATE ASM.
- THERMOSTAT W/ COVER
- THROTTLE BODY W/ FUEL RAIL
- THROTTLE PEDAL
- TOOL KIT AND OWNERS MANUALS
- TORSION BAR - REAR
- VALVE COVER
- WATERPUMP W/ IMPELLER AND COVER
- WHEELS - FRONT
- WHEELS - REAR
- WIRE HARNESSES
