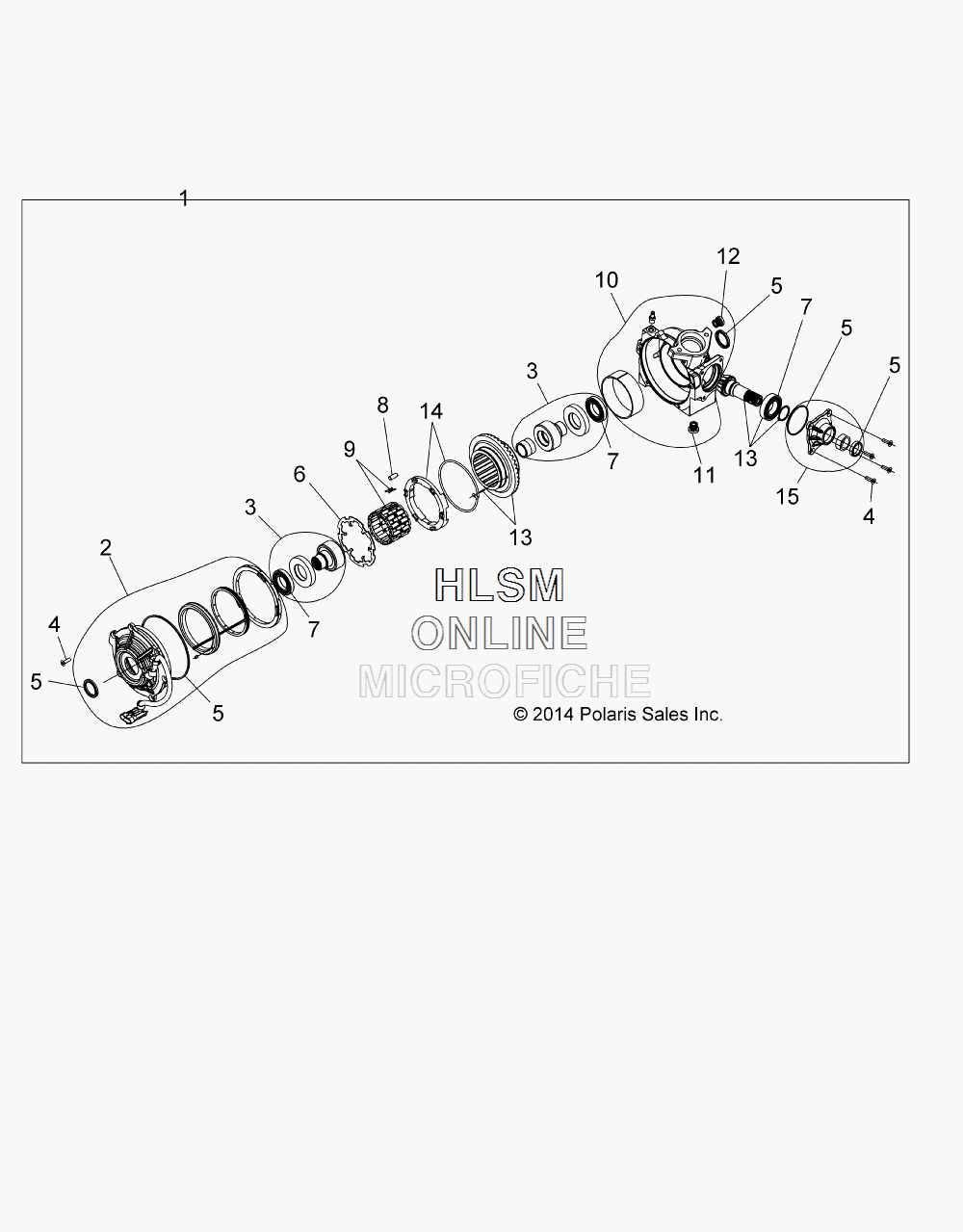

FRONT GEARCASE INTERNALS для Polaris RANGER CREW 570 EPS SUNSET RED [R15RNE57AS] - 2015 года выпуска

№

Артикул

Название
1

1333391 ASM., GEARCASE, FRONT (INCL. 1-15)

ASM., GEARCASE, FRONT (INCL. 1-15)

260 ₽
2

3235634 ASSY, COVR OUTLET (INCL. O-RING, 4WD COIL, SPACER, CLIP, INSERT, COVER, PIN, SEAL, WIRING)

ASSY, COVR OUTLET (INCL. O-RING, 4WD COIL, SPACER, CLIP, INSERT, COVER, PIN, SEAL, WIRING)

91 520 ₽
3

3235169 KIT, HUB ASSEMBLY (INCL. BEARINGS, BUSHING, HUBS, SPACERS)

KIT, HUB ASSEMBLY (INCL. BEARINGS, BUSHING, HUBS, SPACERS)

83 200 ₽
4

3235433 KIT, FASTENERS (INCL. QTY 10 FASTENERS)

KIT, FASTENERS (INCL. QTY 10 FASTENERS)

5 620 ₽
5

3235434 COMPLETE SEAL REPAIR (INCL. ALL O-RINGS, ALL SEALS)

COMPLETE SEAL REPAIR (INCL. ALL O-RINGS, ALL SEALS)

13 520 ₽
6

3235485 PLATE, 4WD ARMATURE

PLATE, 4WD ARMATURE

21 840 ₽
7

3235435 BEARINGS (INCL. ALL BEARINGS)

BEARINGS (INCL. ALL BEARINGS)

28 080 ₽
8

3235624 CLUTCH, ROLLERS (INCL. SET OF 20)

CLUTCH, ROLLERS (INCL. SET OF 20)

1 870 ₽
9

3235625 ASM., ROLL CAGE (INCL. CAGE, QTY 24 CLIPS)

ASM., ROLL CAGE (INCL. CAGE, QTY 24 CLIPS)

62 400 ₽
10

3235436 ASM., GEARCASE (INCL. CASE, BUSHING, PLUGS, SEAL, VENT)

ASM., GEARCASE (INCL. CASE, BUSHING, PLUGS, SEAL, VENT)

130 ₽
11

2203738 DRAIN PLUG

DRAIN PLUG

5 830 ₽
12

2203739 FILL PLUG

FILL PLUG

5 830 ₽
13

3235636 KIT, GEAR HOUSING AND PINION GEAR (INCL. PINION, PIN, BEARING, SNAP RING, RING GEAR)

KIT, GEAR HOUSING AND PINION GEAR (INCL. PINION, PIN, BEARING, SNAP RING, RING GEAR)

130 ₽
14

3235712 KIT, TORSION SPRING AND RETAINER

KIT, TORSION SPRING AND RETAINER

6 870 ₽
15

3235438 KIT, INPUT COVER (INCL. O-RING, COVER, BUSHING, SEAL)

KIT, INPUT COVER (INCL. O-RING, COVER, BUSHING, SEAL)

20 800 ₽
