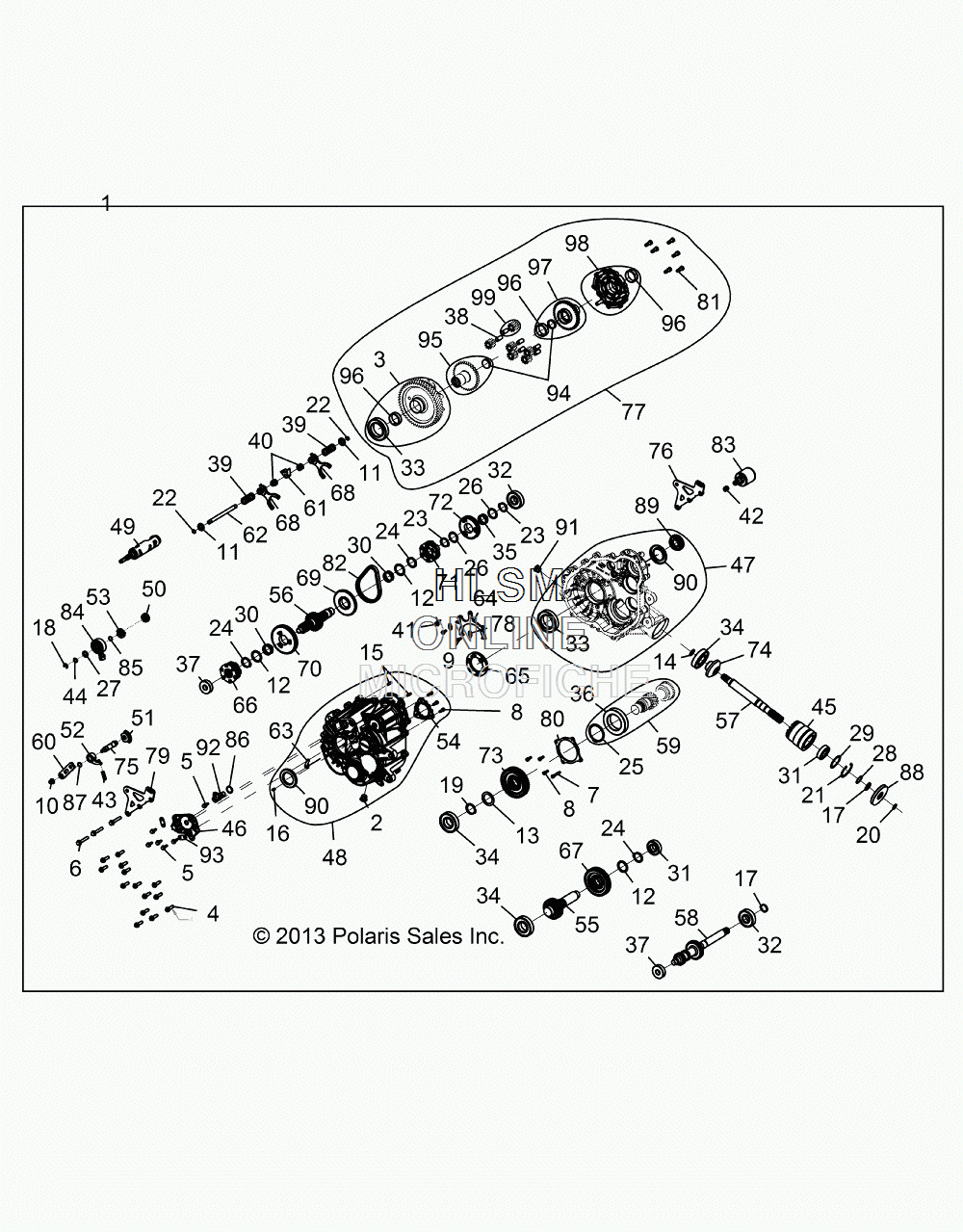

MAIN GEARCASE INTERNAL для Polaris RANGER CREW 900 SOLAR RED [R15RUA87AR] - 2015 года выпуска
-
№АртикулНазвание
-
11333145 ASM., GEARCASE (INCL. ALL)ASM., GEARCASE (INCL. ALL)
-
23234756 PLUG, MAGNETICPLUG, MAGNETIC
-
33235378 SUBASM., GEAR, 53TSUBASM., GEAR, 53T
-
43234898 SCREW, HEX FLANGE HEADSCREW, HEX FLANGE HEAD
-
53235206 SCREW, HEX FLANGE HEADSCREW, HEX FLANGE HEAD
-
63235207 SCREW, HEX FLANGESCREW, HEX FLANGE
-
73235208 SCREW, SOCKET HEAD, CAPSCREW, SOCKET HEAD, CAP
-
83235332 SCREW, SOCKET HEAD, CAPSCREW, SOCKET HEAD, CAP
-
93234329 SCREW. TORX, PAN HEADSCREW. TORX, PAN HEAD
-
103235210 NUT, LOCK HEX FLANGE, NYLONNUT, LOCK HEX FLANGE, NYLON
-
113234091 WASHER, CUPWASHER, CUP
-
123235211 WASHERWASHER
-
133235212 WASHERWASHER
-
143235213 WASHERWASHER
-
153234330 PIN, DOWELPIN, DOWEL
-
167043746 PIN, SPRING, SLOTTEDPIN, SPRING, SLOTTED
-
173233106 RING, RETAINING BASIC, EXTERNALRING, RETAINING BASIC, EXTERNAL
-
183233834 RING, SNAPRING, SNAP
-
193233364 RING, RETAINING, SHAFTRING, RETAINING, SHAFT
-
203234318 RING, RETAINING, EXTERNALRING, RETAINING, EXTERNAL
-
213234269 RING, RETAINING BASIC, INTERNALRING, RETAINING BASIC, INTERNAL
-
223234090 RING, RETAINING BASIC, EXTERNALRING, RETAINING BASIC, EXTERNAL
-
233234205 RING, RETAININGRING, RETAINING
-
243235214 RING, EXTERNAL SNAPRING, EXTERNAL SNAP
-
253235216 RING, RETAININGRING, RETAINING
-
263233378 WASHER, THRUSTWASHER, THRUST
-
273234642 WASHER, THRUSTWASHER, THRUST
-
283234272 SHIMSHIM
-
293234273 SHIMSHIM
-
303233014 BEARING, NEEDLE, CAGE ASM.BEARING, NEEDLE, CAGE ASM.
-
313233019 BEARING, BALLBEARING, BALL
-
323233020 BEARING, BALLBEARING, BALL
-
333233268 BEARING, BALLBEARING, BALL
-
343234065 BEARING, BALLBEARING, BALL
-
353233384 BEARING, NEEDLE, CAGE ASM.BEARING, NEEDLE, CAGE ASM.
-
363235218 BEARING, BALLBEARING, BALL
-
373234652 BEARING, BALLBEARING, BALL
-
38323439 BEARING, PLAINBEARING, PLAIN
-
393234078 SPRING, COMPRESSIONSPRING, COMPRESSION
-
403234089 SPRING, COMPRESSIONSPRING, COMPRESSION
-
413234276 SPRING, TORSION, RETURNSPRING, TORSION, RETURN
-
423234277 SPRING, COMPRESSIONSPRING, COMPRESSION
-
433233820 SPRING, COMPRESSIONSPRING, COMPRESSION
-
443235327 WASHER, SPRINGWASHER, SPRING
-
453234278 TUBE, SNORKEL MACHTUBE, SNORKEL MACH
-
463234188 COVER, SECTOR GEARS, MACHCOVER, SECTOR GEARS, MACH
-
473235422 SUBASM., LEFT HAND CASE (INCL. ALL HARDWARE)SUBASM., LEFT HAND CASE (INCL. ALL HARDWARE)
-
483235444 SUBASM., RIGHT HAND COVER (INCL. ALL HARDWARE)SUBASM., RIGHT HAND COVER (INCL. ALL HARDWARE)
-
493235463 DRUM, SHIFT MACHDRUM, SHIFT MACH
-
503233839 GEAR, SECTOR 16TGEAR, SECTOR 16T
-
513233832 GEAR, SECTOR, 31TGEAR, SECTOR, 31T
-
523235452 ROLLER, PAWLROLLER, PAWL
-
533235603 STAR, DETENTSTAR, DETENT
-
543235456 PLATE, PARKPLATE, PARK
-
553235223 SHAFT, IDLER, 29TSHAFT, IDLER, 29T
-
563235380 SHAFT, REVERSESHAFT, REVERSE
-
573235394 SHAFT, FRONT, OUTPUTSHAFT, FRONT, OUTPUT
-
583235429 SHAFT, PINIONSHAFT, PINION
-
593235336 SUBASM., PINION (INCL. BEARING, RETAINING RING)SUBASM., PINION (INCL. BEARING, RETAINING RING)
-
603235474 BELLCRANKBELLCRANK
-
613234073 COLLAR, SHIFTCOLLAR, SHIFT
-
623234079 RAIL, SHIFT SHAFTRAIL, SHIFT SHAFT
-
633234230 TUBE, VENTTUBE, VENT
-
643235455 FORK, SHIFTFORK, SHIFT
-
653234928 DOG, ENGAGEMENTDOG, ENGAGEMENT
-
663235457 DOG, SHIFT, PARKDOG, SHIFT, PARK
-
673235381 GEAR, 46T, STAGE 2GEAR, 46T, STAGE 2
-
683235454 SUBASM., SHIFT FORKSUBASM., SHIFT FORK
-
693235231 SPROCKET, 48T, 6-FACESPROCKET, 48T, 6-FACE
-
703235232 GEAR, LOW, 67TGEAR, LOW, 67T
-
713235233 DOG, ENGAGEMENT, 6-FACEDOG, ENGAGEMENT, 6-FACE
-
723235234 GEAR, 53TGEAR, 53T
-
733235236 GEAR, 46T STAGE 3GEAR, 46T STAGE 3
-
743235237 GEAR, 13T SNORKELGEAR, 13T SNORKEL
-
753235238 SHAFT, SHIFTSHAFT, SHIFT
-
763235399 BRACKET, REARBRACKET, REAR
-
773235373 DIFFERENTIAL, LOCKINGDIFFERENTIAL, LOCKING
-
783234934 RETAINER, FORKRETAINER, FORK
-
793235398 BRACKET, REAR MOUNTBRACKET, REAR MOUNT
-
803235241 COVER, BEARING, CENTER DRIVECOVER, BEARING, CENTER DRIVE
-
813235096 SCREW, CAPSCREW, CAP
-
823234737 CHAIN, SILENTCHAIN, SILENT
-
833235478 SOLENOIDSOLENOID
-
847661999 SWITCH, ROTARY , 2 PIN RESISTIVESWITCH, ROTARY , 2 PIN RESISTIVE
-
853233076 O-RINGO-RING
-
863234302 O-RINGO-RING
-
873233869 O-RINGO-RING
-
883234113 SEAL, TRIPLE LIPSEAL, TRIPLE LIP
-
893234851 SEALSEAL
-
903235052 SEAL, TRIPLE LIPSEAL, TRIPLE LIP
-
913234755 PLUGPLUG
-
924013908 SENSOR, SPEEDSENSOR, SPEED
-
933235350 BRACKET, WIRE HARNESSBRACKET, WIRE HARNESS
-
943234249 PLUG, EXPANSIONPLUG, EXPANSION
-
953235374 SUBASM., 39T SIDE GEAR (INCL. PLUG)SUBASM., 39T SIDE GEAR (INCL. PLUG)
-
963234241 BEARING, PLAINBEARING, PLAIN
-
973235375 SUBASM., 39T SIDE GEAR DISCONNECT (INCL. PLUG,BUSHING)SUBASM., 39T SIDE GEAR DISCONNECT (INCL. PLUG,BUSHING)
-
983235376 SUBASM., DIFF COVER (INCL. PINS,BUSHING)SUBASM., DIFF COVER (INCL. PINS,BUSHING)
-
993234469 SUBASM., GEAR (INCL. BUSHING)SUBASM., GEAR (INCL. BUSHING)
