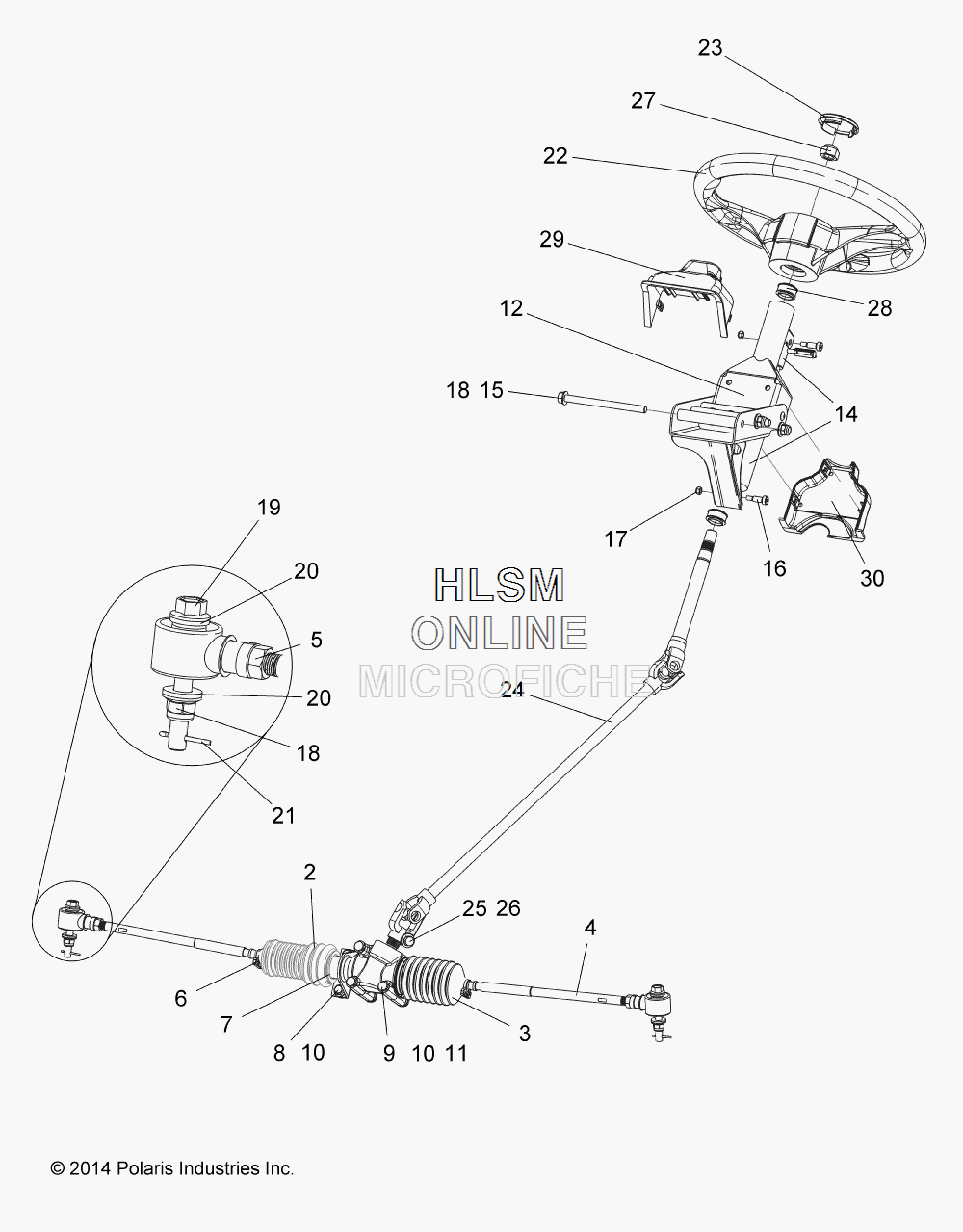

STEERING ASM. для Polaris RANGER ETX SAGE GREEN [R15RMA32AA] - 2015 года выпуска
-
№АртикулНазвание
-
11824147 ASM., GEAR BOX, STEERING (INCL. 2-7)ASM., GEAR BOX, STEERING (INCL. 2-7)
-
25412012 BOOT, DRIVER, SIDE RACKBOOT, DRIVER, SIDE RACK
-
35412013 BOOT, PASSENGER, SIDE RACKBOOT, PASSENGER, SIDE RACK
-
47061189 ROD, END, OUTERROD, END, OUTER
-
52205058 NUT, JAMNUT, JAM
-
67080978 CLAMP, BOOT, SMALLCLAMP, BOOT, SMALL
-
77080979 CLAMP, BOOT, LARGECLAMP, BOOT, LARGE
-
87518702 BOLT, HEX HEAD FLANGEBOLT, HEX HEAD FLANGE
-
97518935 BOLTBOLT
-
107547332 NUT, FLANGE, NYLOCNUT, FLANGE, NYLOC
-
117558402 WASHERWASHER
-
121824317-458 ASM., TILT, STEERING, BLACK (INCL. 13)ASM., TILT, STEERING, BLACK (INCL. 13)
-
133514686 BEARING, STEERINGBEARING, STEERING
-
147044098 ASM., SHOCKASM., SHOCK
-
157518665 BOLTBOLT
-
167518786 BOLT, SHOULDERBOLT, SHOULDER
-
177546703 NUT, NYLOKNUT, NYLOK
-
187547333 NUTNUT
-
197519854 SCREWSCREW
-
207556099 WASHER, FLATWASHER, FLAT
-
217661203 PIN, COTTERPIN, COTTER
-
221823623 WHEEL, STEERING, 14'WHEEL, STEERING, 14'
-
235436536 CAP, STEERING WHEELCAP, STEERING WHEEL
-
241543390 SHAFT, STEERING, UPPER/LOWERSHAFT, STEERING, UPPER/LOWER
-
257518644 SCREWSCREW
-
267547385 NUTNUT
-
277547506 NUT, HEXNUT, HEX
-
287556675 BUSHING, STEERINGBUSHING, STEERING
-
295451478-070 COVER, STEERING COLUMN, UPPER, BLACKCOVER, STEERING COLUMN, UPPER, BLACK
-
305451479-070 COVER, STEERING COLUMN, LOWER, BLACKCOVER, STEERING COLUMN, LOWER, BLACK
