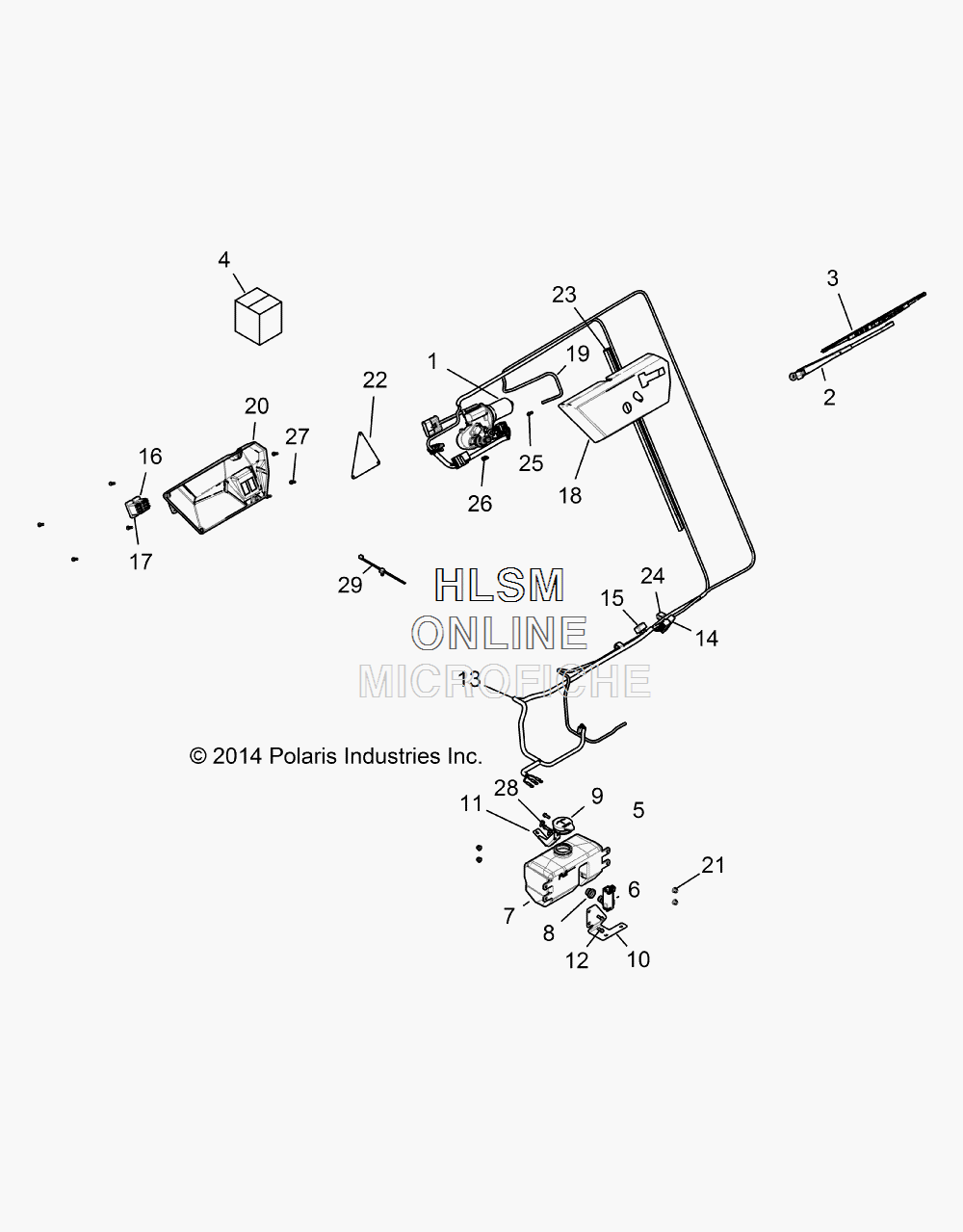

WINDSHIELD WIPER для Polaris RANGER XP 900 EPS NORTHSTAR EDITION [R15RTE87A2] - 2015 года выпуска
-
№АртикулНазвание
-
12204914 MOTOR, WIPER WSHLDMOTOR, WIPER WSHLD
-
22204915 ARM, WIPER WSHLDARM, WIPER WSHLD
-
32204916 BLADE, WIPER WSHLDBLADE, WIPER WSHLD
-
42205572 HDWR, WIPER MTR INSTL WSHLDHDWR, WIPER MTR INSTL WSHLD
-
52205139 ASSY, BOTTLE WASHER WSHLD INCL 6-9ASSY, BOTTLE WASHER WSHLD INCL 6-9
-
62205140 PUMP, WASHER WIPER FLUIDPUMP, WASHER WIPER FLUID
-
75450700 BOTTLE, WASHER WIPER FLUIDBOTTLE, WASHER WIPER FLUID
-
85414883 GROMMET, PUMP WSHR FLUIDGROMMET, PUMP WSHR FLUID
-
95450701 LID, BOTTLE WASHERLID, BOTTLE WASHER
-
105258010 BRACKET, WASHER BOTTLE FRONTBRACKET, WASHER BOTTLE FRONT
-
115258011 BRACKET, WASHER BOTTLE SIDEBRACKET, WASHER BOTTLE SIDE
-
127518548 SCREWSCREW
-
132412622 HARNESS, WIPER INCL 14 AND 15HARNESS, WIPER INCL 14 AND 15
-
144011998 RELAY, MICRO SPDTRELAY, MICRO SPDT
-
152410881 BREAKER CIRCUIT 20 AMPBREAKER CIRCUIT 20 AMP
-
164014071 SWITCH, WIPER WASHSWITCH, WIPER WASH
-
174014072 SWITCH, WIPER LOW HIGHSWITCH, WIPER LOW HIGH
-
185450703 MNT, WIPER WSHLDMNT, WIPER WSHLD
-
195414882 HOSE, WIPER WSHR FLUIDHOSE, WIPER WSHR FLUID
-
205450702 COVER, WIPER WSHLDCOVER, WIPER WSHLD
-
217547274 NUT, NYLOCKNUT, NYLOCK
-
225258170 RETAINER, MOTOR WIPERRETAINER, MOTOR WIPER
-
235414966 GUIDE, HARNESSGUIDE, HARNESS
-
245415017 GUIDE, HARNESSGUIDE, HARNESS
-
257052581 FITTING, BARB HOSEFITTING, BARB HOSE
-
267081936 CLIP, HARNESSCLIP, HARNESS
-
277512026 SCREWSCREW
-
287519045 SCREWSCREW
-
297081496 CLIP, ROUTINGCLIP, ROUTING
