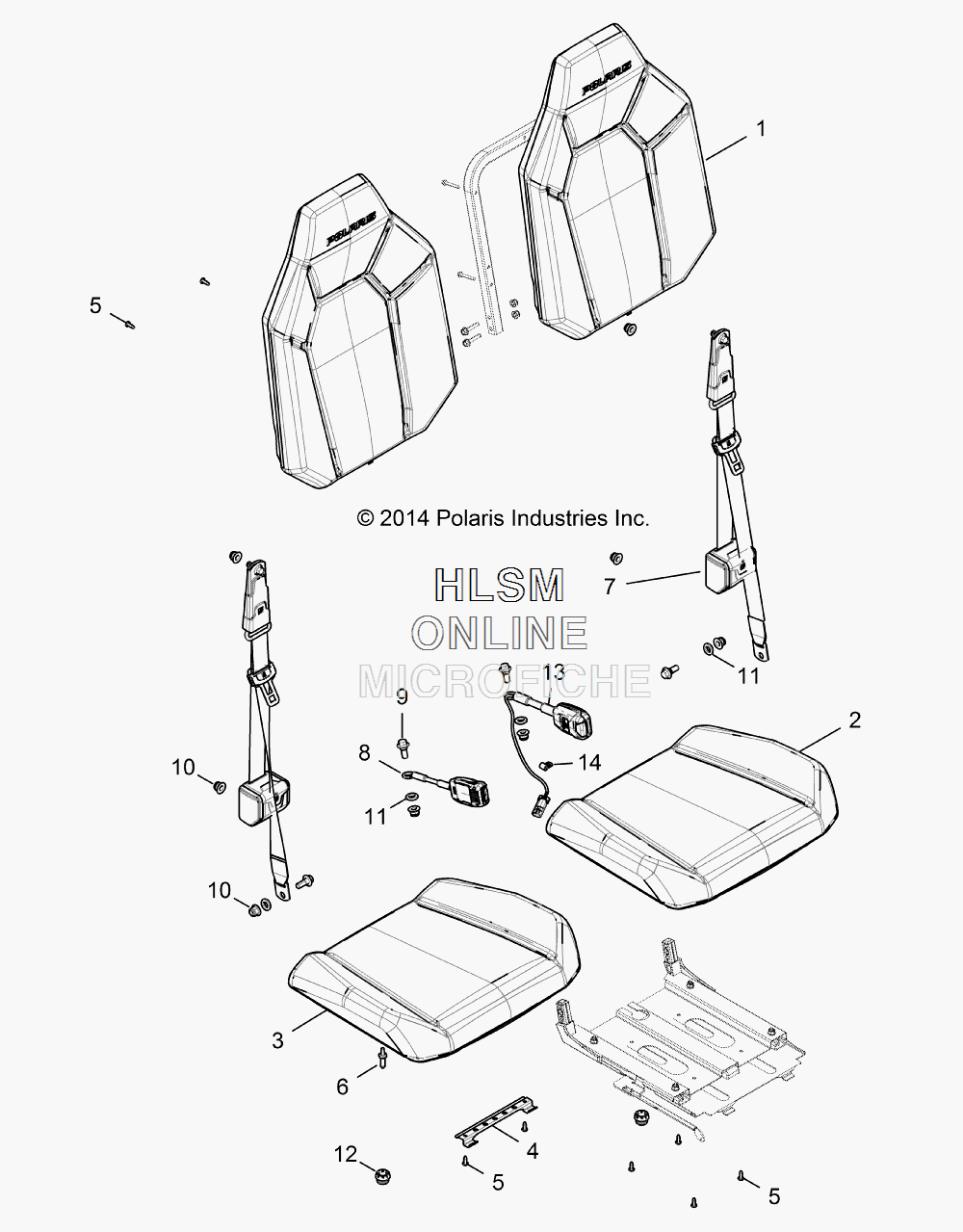

SEAT ASSY. для Polaris RANGER XP 900 EPS VOGUE SILVER DELUXE [R15RTE87AV] - 2015 года выпуска
-
№АртикулНазвание
-
12685836 ASM., SEAT BACK, BLACK/SILVERASM., SEAT BACK, BLACK/SILVER
-
12686362 COVER, SEAT BACK, BLACK/SILVERCOVER, SEAT BACK, BLACK/SILVER
-
22686359 ASM., SEAT, BOTTOM 40, BLACK/SILVERASM., SEAT, BOTTOM 40, BLACK/SILVER
-
22686363 COVER, BOTTOM 40, BLACK/SILVERCOVER, BOTTOM 40, BLACK/SILVER
-
32686360 ASM., SEAT, BOTTOM 40, BLACK/SILVER (INCL. 4, QTY 2 OF 5,6)ASM., SEAT, BOTTOM 40, BLACK/SILVER (INCL. 4, QTY 2 OF 5,6)
-
32686363 COVER, BOTTOM 40, BLACK/SILVERCOVER, BOTTOM 40, BLACK/SILVER
-
45256837 BRACKET, SEAT HINGE, DOUBLEBRACKET, SEAT HINGE, DOUBLE
-
57519045 SCREWSCREW
-
65910404 PIN, SEAT LATCHPIN, SEAT LATCH
-
72635118 ASM., SEAT BELT, 3 POINTASM., SEAT BELT, 3 POINT
-
82635235 BUCKLE, SEATBELT, 9.6, PASSENGERBUCKLE, SEATBELT, 9.6, PASSENGER
-
97519770 SCREWSCREW
-
107547441 NUTNUT
-
115813829 WASHER, SEATBELT, RUBBERWASHER, SEATBELT, RUBBER
-
125439179 GROMMETGROMMET
-
132635609 BUCKLE, SEATBELT, 90, SWITCHBUCKLE, SEATBELT, 90, SWITCH
-
147081246 CLAMP, WIRE/TUBE .25 DIACLAMP, WIRE/TUBE .25 DIA
