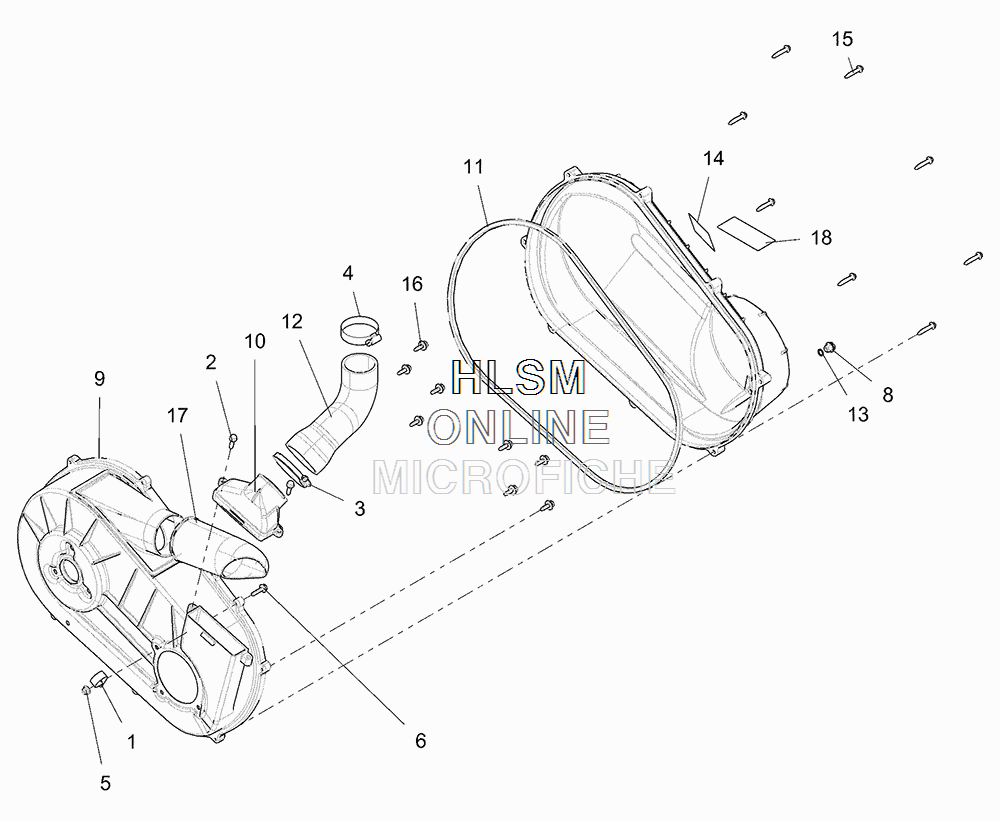

CLUTCH COVER AND DUCTING для Polaris RANGER 570 EPS (POLARIS PURSUIT CAMO (HUNTER EDITION) [RME57A9] - 2016 года выпуска
-
№АртикулНазвание
-
17081854 CLAMP, VINYL COATEDCLAMP, VINYL COATED
-
27512098 SCREWSCREW
-
37080707 CLAMP, NARROW BANDCLAMP, NARROW BAND
-
47080451 CLAMP, HOSECLAMP, HOSE
-
57547339 NUTNUT
-
67518533 BOLTBOLT
-
72634179 ASM., COVER, CLUTCH, OUTER (INCL. OUTER COVER, PLUG, O-RING)ASM., COVER, CLUTCH, OUTER (INCL. OUTER COVER, PLUG, O-RING)
-
85434264 PLUG, DRAINPLUG, DRAIN
-
92635045 ASM., COVER, CLUTCH, INNER (INCL. 2,9,10,17)ASM., COVER, CLUTCH, INNER (INCL. 2,9,10,17)
-
95438889 COVER, CLUTCH, INNERCOVER, CLUTCH, INNER
-
105438891 DUCT, CLUTCH, AIR INLETDUCT, CLUTCH, AIR INLET
-
115521831 SEAL, OUTER, CLUTCH COVERSEAL, OUTER, CLUTCH COVER
-
125414501 HOSE, INTAKE, CLUTCHHOSE, INTAKE, CLUTCH
-
135410542 O-RINGO-RING
-
147177469 DECAL, BELT, CAUTION/CHECKDECAL, BELT, CAUTION/CHECK
-
157519330 SCREWSCREW
-
167519278 ASM., BOLT/WASHERASM., BOLT/WASHER
-
175450181 DUCT, OUTLET, CLUTCHDUCT, OUTLET, CLUTCH
-
187175488 DECAL, WARNING, CLUTCH COVERDECAL, WARNING, CLUTCH COVER
