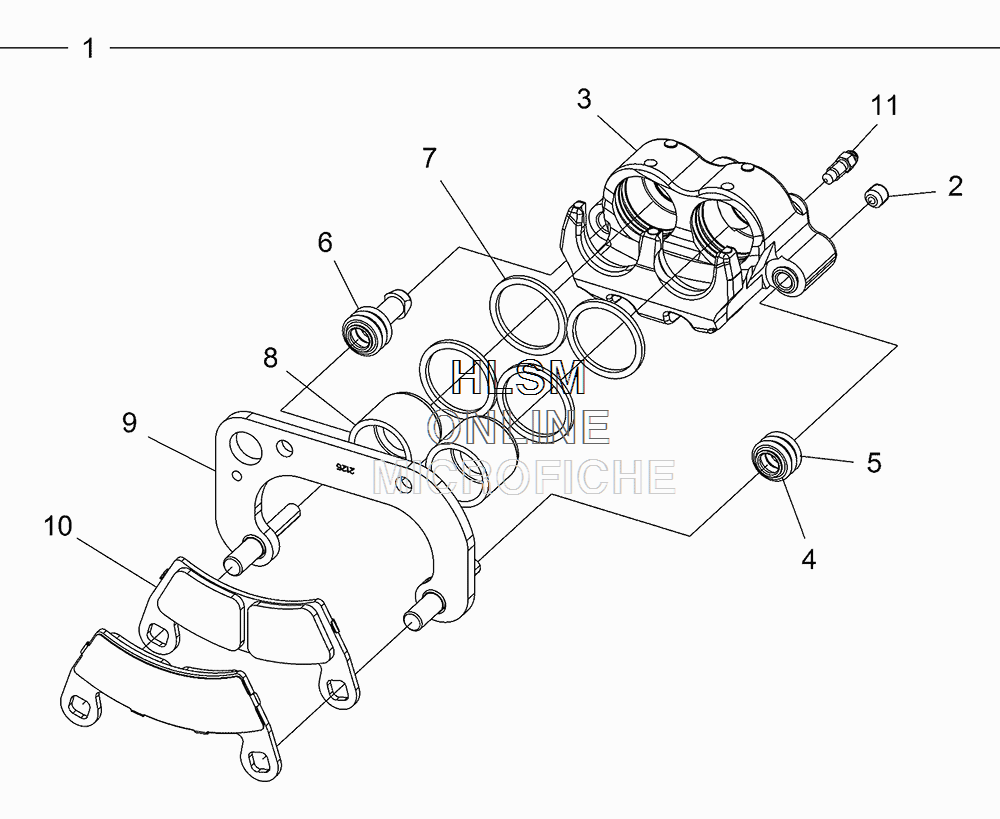

FRONT CALIPER для Polaris RANGER 570 FULL-SIZE (SAGE GREEN) [RCA57A1] - 2016 года выпуска
-
№АртикулНазвание
-
11912123 ASM-CALIPER,BRK,DB,1.375'',LH,M (INCL. 1-10)ASM-CALIPER,BRK,DB,1.375'',LH,M (INCL. 1-10)
-
11912124 ASM-CALIPER,BRK,DB,1.375'',RH,M (INCL. 1-10)ASM-CALIPER,BRK,DB,1.375'',RH,M (INCL. 1-10)
-
27518863 SCREW, SOCKET SETSCREW, SOCKET SET
-
41930642 KIT, FRONT BRAKE BOOT (INCL. 5,6)KIT, FRONT BRAKE BOOT (INCL. 5,6)
-
55412505 BOOT, BUSHINGBOOT, BUSHING
-
65412506 BOOT, PIN SEALBOOT, PIN SEAL
-
75412907 SEAL, CALIPER, INNERSEAL, CALIPER, INNER
-
85135134 PISTON-CALIPER,1.375''PISTON-CALIPER,1.375''
-
91912125 ASM-CALIPER MOUNT,DB1.375,MASM-CALIPER MOUNT,DB1.375,M
-
102205949 KIT, BRAKE PAD ASM. (CONTAINS 2 PADS)KIT, BRAKE PAD ASM. (CONTAINS 2 PADS)
-
117081343 SCREW, BLEEDERSCREW, BLEEDER
