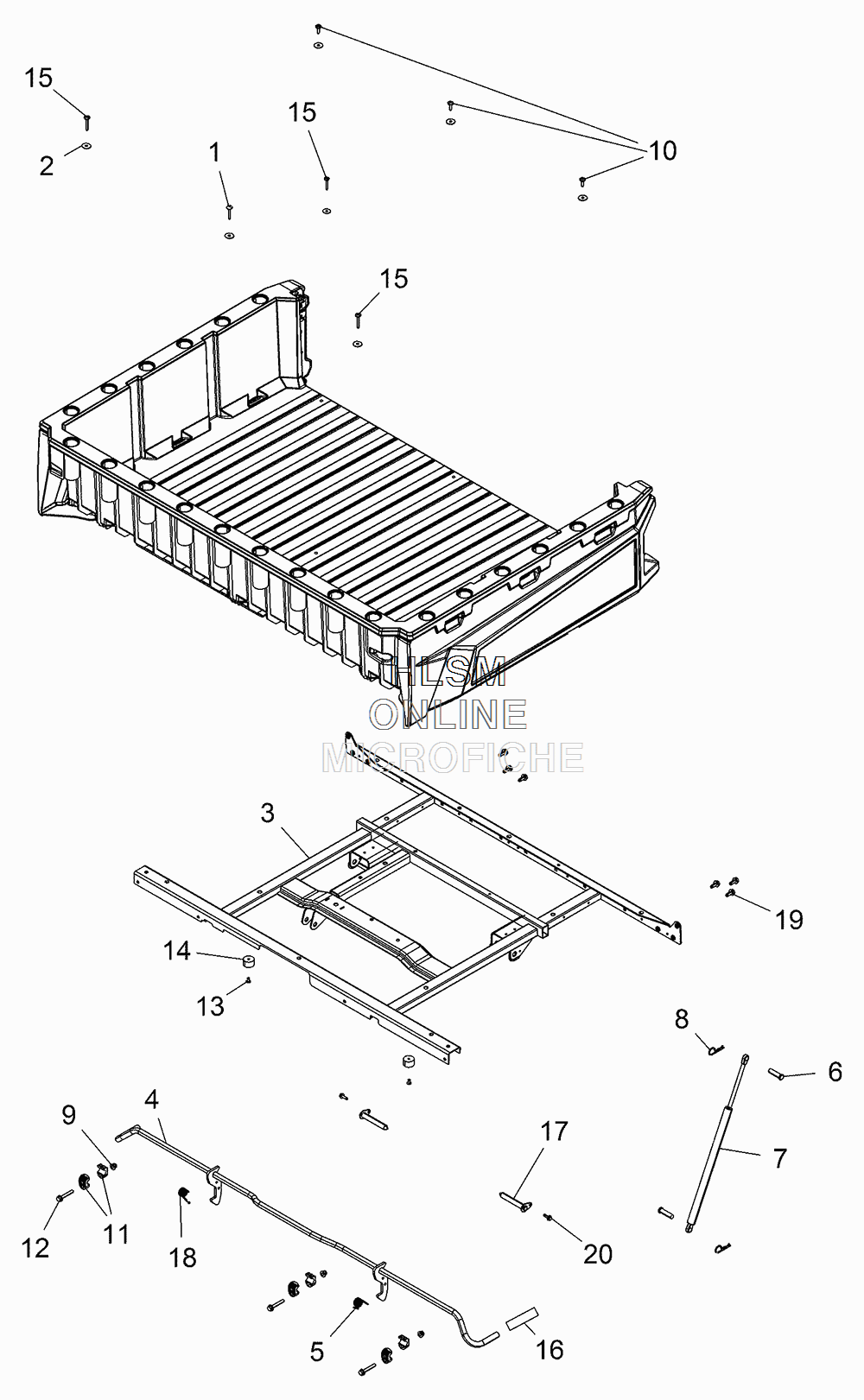

BOX SUPPORT W/SHOCK для Polaris RANGER 570 FULL-SIZE (SOLAR RED) [RCA57A4] - 2016 года выпуска
-
№АртикулНазвание
-
17519001 SCR-M6X1X40,TR/TX-BLACKSCR-M6X1X40,TR/TX-BLACK
-
27556329 WASHERWASHER
-
31021635-329 WELD-BOX SUPPORT,SHORT, BLACKWELD-BOX SUPPORT,SHORT, BLACK
-
41021682-458 WELD-BOX LATCH,M.BLACKWELD-BOX LATCH,M.BLACK
-
57044324 SPRING, LATCHSPRING, LATCH
-
67661878 PIN, CLEVISPIN, CLEVIS
-
77043641 SHOCK, DUMP BOXSHOCK, DUMP BOX
-
87661067 CLIPCLIP
-
97547317 NUT-M8X1.25,HXFLG,NYLON INSNUT-M8X1.25,HXFLG,NYLON INS
-
107519650 SCR-TXTH-M6X1.0X25 RIESCR-TXTH-M6X1.0X25 RIE
-
115434226 BUSHING, BOX, LATCHBUSHING, BOX, LATCH
-
127517793 SCR-M8X1.25X50 HX/FL-YSCR-M8X1.25X50 HX/FL-Y
-
137621460 RIVET-POP3/16(.376-.500)AL-LFBRIVET-POP3/16(.376-.500)AL-LFB
-
145414343 BUMPER, BOXBUMPER, BOX
-
157519722 SCR-TXTH-M6X1.0X45 RIESCR-TXTH-M6X1.0X45 RIE
-
165450278 HANDLE-BOX, LATCHHANDLE-BOX, LATCH
-
171016695-329 WELD-PIN,BOX HINGE, BLACKWELD-PIN,BOX HINGE, BLACK
-
187044325 SPRING, LATCHSPRING, LATCH
-
197518555 BOLTBOLT
-
208518529 SCREWSCREW
