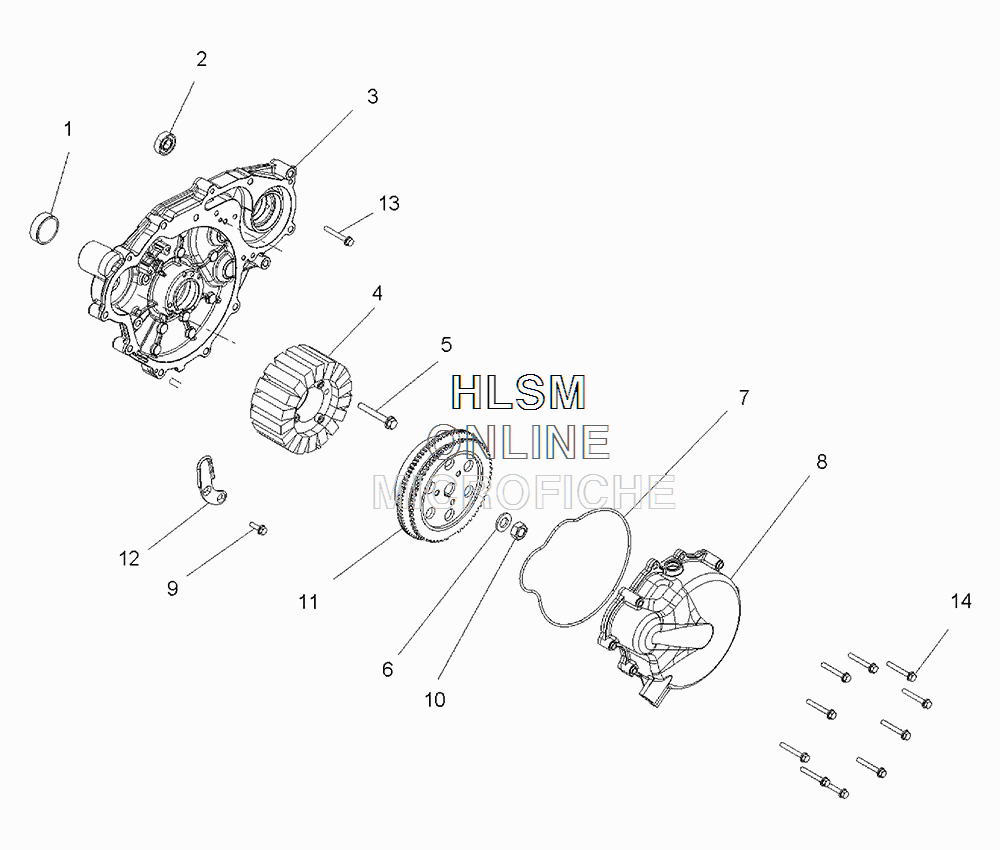

STATOR AND FLYWHEEL для Polaris RANGER 6X6 (AVALANCHE GRAY) [R16RAA76AJ] - 2016 года выпуска
-
№АртикулНазвание
-
15412881 SEAL, FLANGEDSEAL, FLANGED
-
25412455 SEAL, OILSEAL, OIL
-
31204712 ASM., ENGINE COVER (INCL. PINS)ASM., ENGINE COVER (INCL. PINS)
-
37661946 PIN, DOWELPIN, DOWEL
-
44014034 STATORSTATOR
-
57517848 SCREWSCREW
-
67555907 WASHERWASHER
-
75413972 SEAL, STATOR COVERSEAL, STATOR COVER
-
81204144 ASM., COVER, STATOR (INCL. BUSHING)ASM., COVER, STATOR (INCL. BUSHING)
-
83514553 BUSHINGBUSHING
-
97517598 SCREWSCREW
-
107547213 NUTNUT
-
114013968 FLYWHEELFLYWHEEL
-
125256627 BRACKET, STATOR, WIRE HOLDDOWNBRACKET, STATOR, WIRE HOLDDOWN
-
137516818 SCREWSCREW
-
147519209 SCREWSCREW
