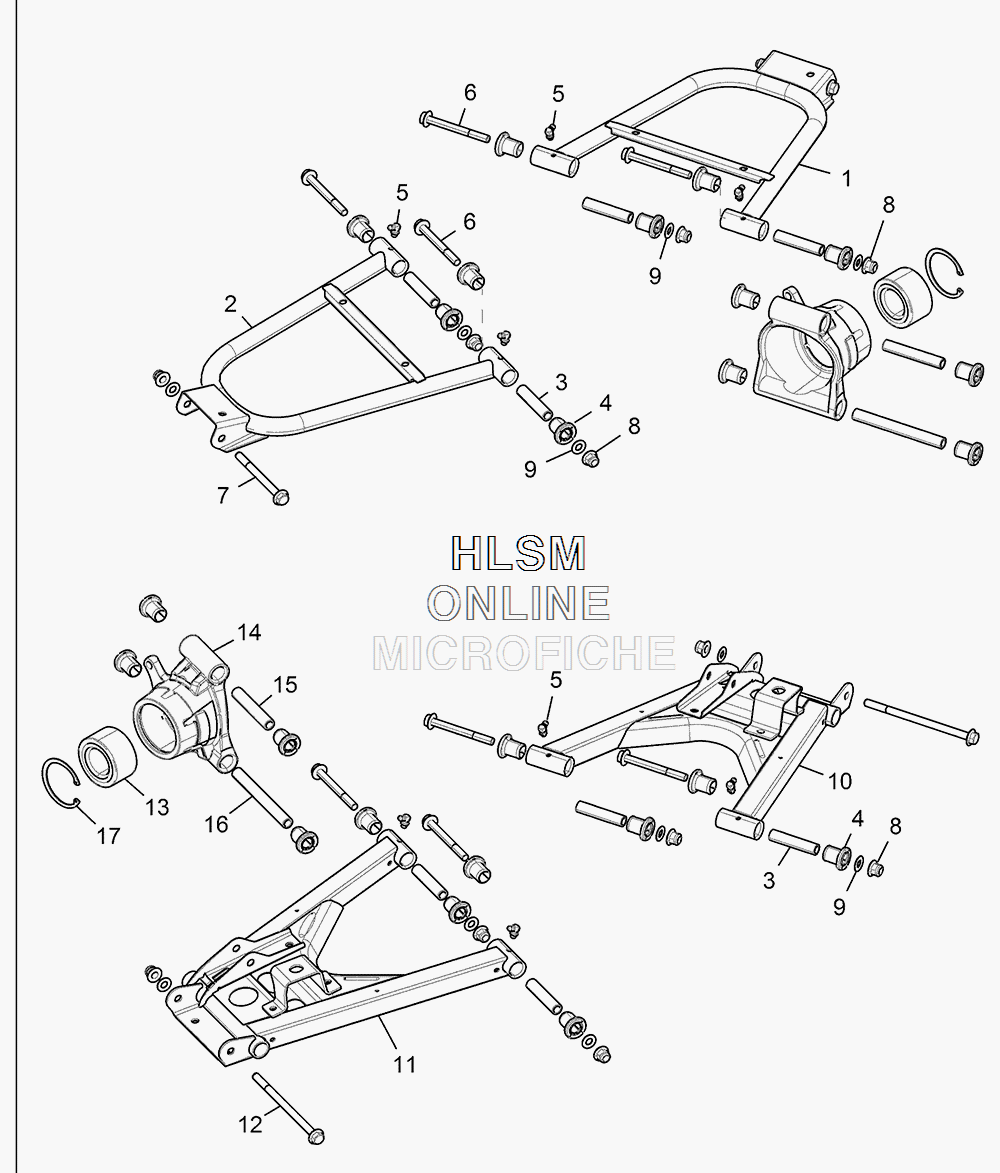

REAR SUSPENSION для Polaris RANGER CREW 900-6 EPS (VELOCITY BLUE) [R16RVE87AV] - 2016 года выпуска
-
№АртикулНазвание
-
11018465-689 ARM, CONTROL, RR, UPPER (LEFT HAND) - (VELOCITY BLUE) - (E87AV)ARM, CONTROL, RR, UPPER (LEFT HAND) - (VELOCITY BLUE) - (E87AV)
-
21018466-689 ARM, CONTROL, RR, UPPER (RIGHT HAND) - (VELOCITY BLUE) - (E87AV)ARM, CONTROL, RR, UPPER (RIGHT HAND) - (VELOCITY BLUE) - (E87AV)
-
35138797 SHAFT, PIVOT,70.99MM,15.88ODSHAFT, PIVOT,70.99MM,15.88OD
-
45439874 BUSHING, STANDARDBUSHING, STANDARD
-
57080510 FITTING, ZERK,90 DEGFITTING, ZERK,90 DEG
-
67519043 SCREWSCREW
-
77519365 SCREWSCREW
-
87547333 NUT, FLANGE NYLOKNUT, FLANGE NYLOK
-
97556153 WASHERWASHER
-
101018460-689 ARM, CONTROL, RR, LOWER (LEFT HAND) - (VELOCITY BLUE) - (E87AV)ARM, CONTROL, RR, LOWER (LEFT HAND) - (VELOCITY BLUE) - (E87AV)
-
111018461-689 ARM, CONTROL, RR, LOWER (RIGHT HAND) - (VELOCITY BLUE) - (E87AV)ARM, CONTROL, RR, LOWER (RIGHT HAND) - (VELOCITY BLUE) - (E87AV)
-
127519042 SCREWSCREW
-
133514635 BEARING, WHEEL,40X74X40MMBEARING, WHEEL,40X74X40MM
-
145138052 CARRIER, BEARING, WHEEL (LEFT HAND)CARRIER, BEARING, WHEEL (LEFT HAND)
-
145138053 CARRIER, BEARING, WHEEL (RIGHT HAND)CARRIER, BEARING, WHEEL (RIGHT HAND)
-
155138794 SHAFT, PIVOT,89.71MM,15.88ODSHAFT, PIVOT,89.71MM,15.88OD
-
165138796 SHAFT, PIVOT,139.1MM,15.88ODSHAFT, PIVOT,139.1MM,15.88OD
-
177710440 RING, RETAINING, INTERNALRING, RETAINING, INTERNAL
