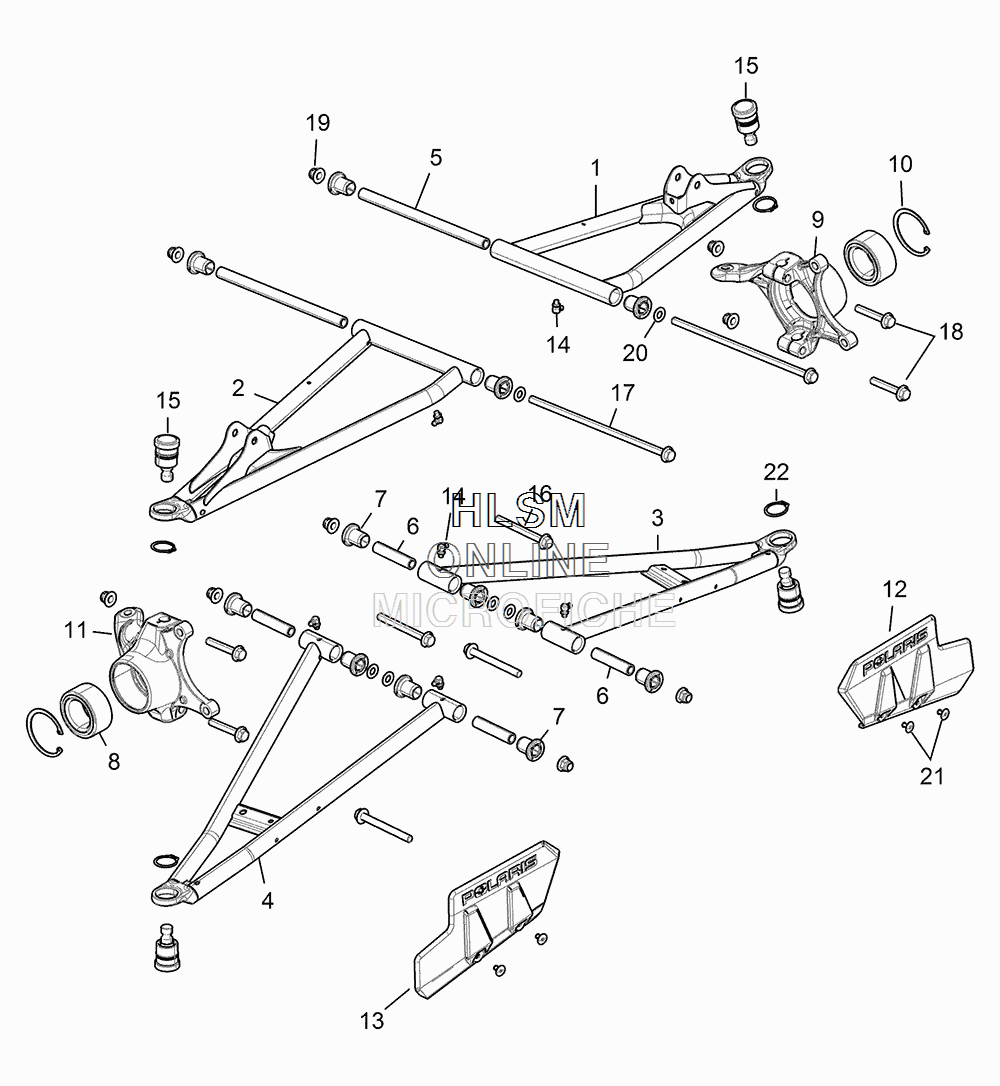

CONTROL ARMS - FRONT для Polaris RANGER CREW DIESEL (SAGE GREEN) [R16RVAD1A1] - 2016 года выпуска
-
№АртикулНазвание
-
11020887-458 ARM, CONTROL, UPPER, FRONT (LEFT HAND) (MATTE BLACK)ARM, CONTROL, UPPER, FRONT (LEFT HAND) (MATTE BLACK)
-
21020888-458 ARM, CONTROL, UPPER, FRONT (RIGHT HAND) (MATTE BLACK)ARM, CONTROL, UPPER, FRONT (RIGHT HAND) (MATTE BLACK)
-
31019668-458 A-ARM, FRONT, LOWER (LEFT HAND) (MATTE BLACK)A-ARM, FRONT, LOWER (LEFT HAND) (MATTE BLACK)
-
41019669-458 A-ARM, FRONT, LOWER (RIGHT HAND) (MATTE BLACK)A-ARM, FRONT, LOWER (RIGHT HAND) (MATTE BLACK)
-
55138791 SHAFT, PIVOTSHAFT, PIVOT
-
65138797 SHAFT, PIVOTSHAFT, PIVOT
-
75439874 BUSHING, STANDARDBUSHING, STANDARD
-
83514699 BEARING, BALL, SEALEDBEARING, BALL, SEALED
-
95139976 CARRIER, BEARING, FRONT (LEFT HAND)CARRIER, BEARING, FRONT (LEFT HAND)
-
107710780 RING, RETAINING,INTERNALRING, RETAINING,INTERNAL
-
115139977 CARRIER, BEARING, FRONT (RIGHT HAND)CARRIER, BEARING, FRONT (RIGHT HAND)
-
125437544-070 SHIELD, CV, FRONT (LEFT HAND) (BLACK)SHIELD, CV, FRONT (LEFT HAND) (BLACK)
-
135437545-070 SHIELD, CV, FRONT (RIGHT HAND) (BLACK)SHIELD, CV, FRONT (RIGHT HAND) (BLACK)
-
147080510 FITTING, ZERKFITTING, ZERK
-
157081991 JOINT, BALLJOINT, BALL
-
167519043 SCREWSCREW
-
177519087 SCREWSCREW
-
187519306 SCREWSCREW
-
197547333 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
207556153 WASHERWASHER
-
217621472 RIVETRIVET
-
227710533 RING, RETAINER, EXTERNALRING, RETAINER, EXTERNAL
