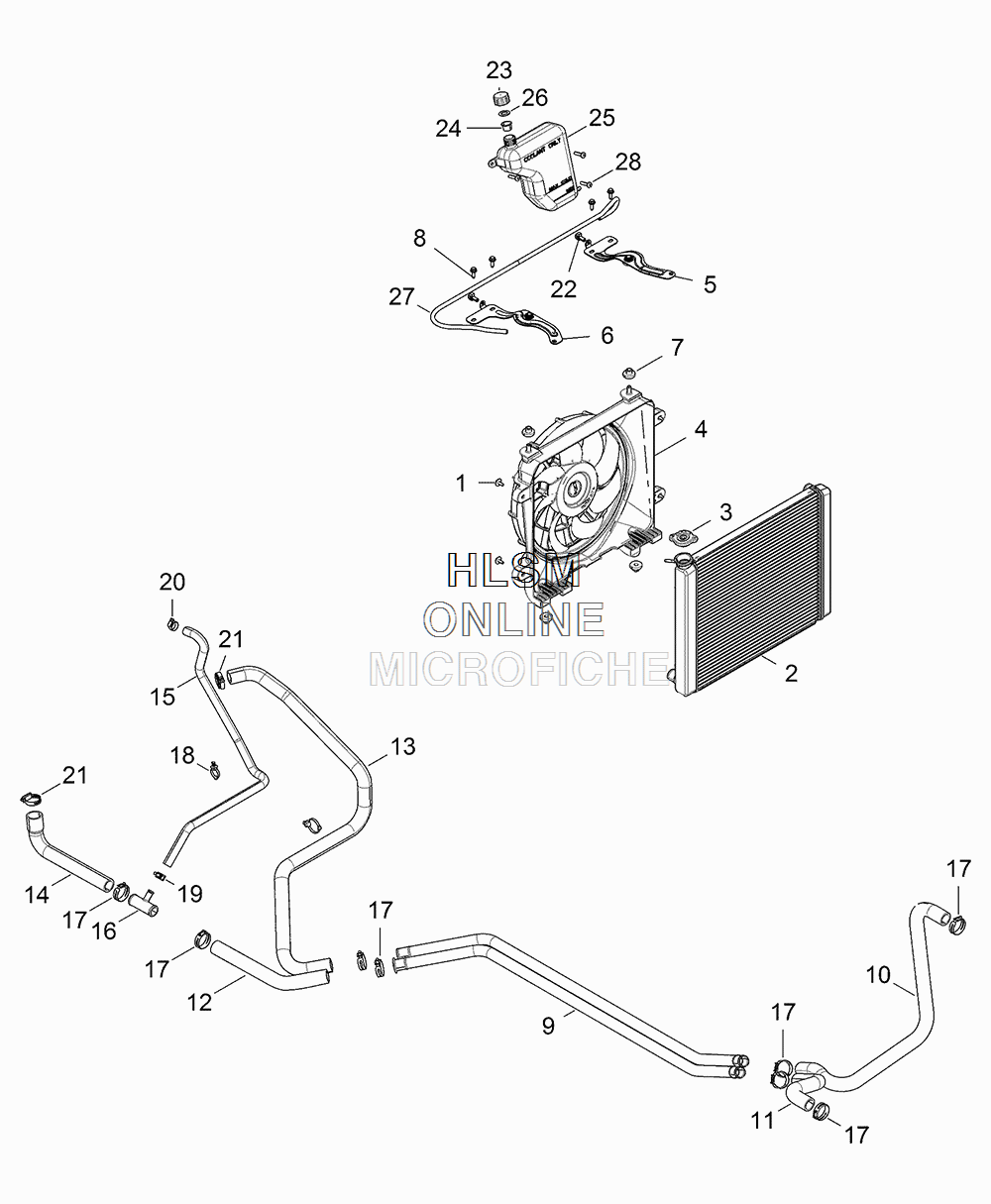

COOLING SYSTEM для Polaris RANGER CREW XP 570-6 (SAGE GREEN) [R16RVA57A1] - 2016 года выпуска
-
№АртикулНазвание
-
17519585 BOLT, M6X15MMBOLT, M6X15MM
-
21240664 ASM., RADIATOR, COREASM., RADIATOR, CORE
-
31240694 CAPCAP
-
42413196 ASM., FAN, SHROUDASM., FAN, SHROUD
-
55256596-329 BRACKET, RADIATOR MOUNT, (LEFT HAND), BLACKBRACKET, RADIATOR MOUNT, (LEFT HAND), BLACK
-
65256597-329 BRACKET, RADIATOR MOUNT, (RIGHT HAND), BLACKBRACKET, RADIATOR MOUNT, (RIGHT HAND), BLACK
-
77052028 GROMMET, FLANGEDGROMMET, FLANGED
-
87516822 SCREWSCREW
-
95138504 TUBE, COOLANT, 1''TUBE, COOLANT, 1''
-
105415596 HOSE, UPPER, RADIATORHOSE, UPPER, RADIATOR
-
115415595 HOSE, LOWER, RADIATORHOSE, LOWER, RADIATOR
-
125415170 HOSE, ENGINE, INHOSE, ENGINE, IN
-
135415171 HOSE, ENGINE, OUTHOSE, ENGINE, OUT
-
145415185 HOSE, ENGINE, INLET/BYPASSHOSE, ENGINE, INLET/BYPASS
-
155415186 HOSE, BYPASSHOSE, BYPASS
-
167052530 CONNECTOR, TEECONNECTOR, TEE
-
177080844 SPRING, BAND, CLAMPSPRING, BAND, CLAMP
-
187081496 CLIP, ROUTINGCLIP, ROUTING
-
197081719 CLAMP, HOSE, SPRINGCLAMP, HOSE, SPRING
-
207080474 CLAMP, HOSECLAMP, HOSE
-
217081192 CLAMP, HOSECLAMP, HOSE
-
227670102 CLIP, SILENCER BOX-CCLIP, SILENCER BOX-C
-
235430743 CAP, OVER FLOW BOTTLE, DRILLEDCAP, OVER FLOW BOTTLE, DRILLED
-
245433774 PLUG, CAP, GREENPLUG, CAP, GREEN
-
255439202 TANK, SURGETANK, SURGE
-
265810279 GASKET, OVERFLOW, CAPGASKET, OVERFLOW, CAP
-
278450003-95 FUEL, LINEFUEL, LINE
-
287518158 SCREWSCREW
