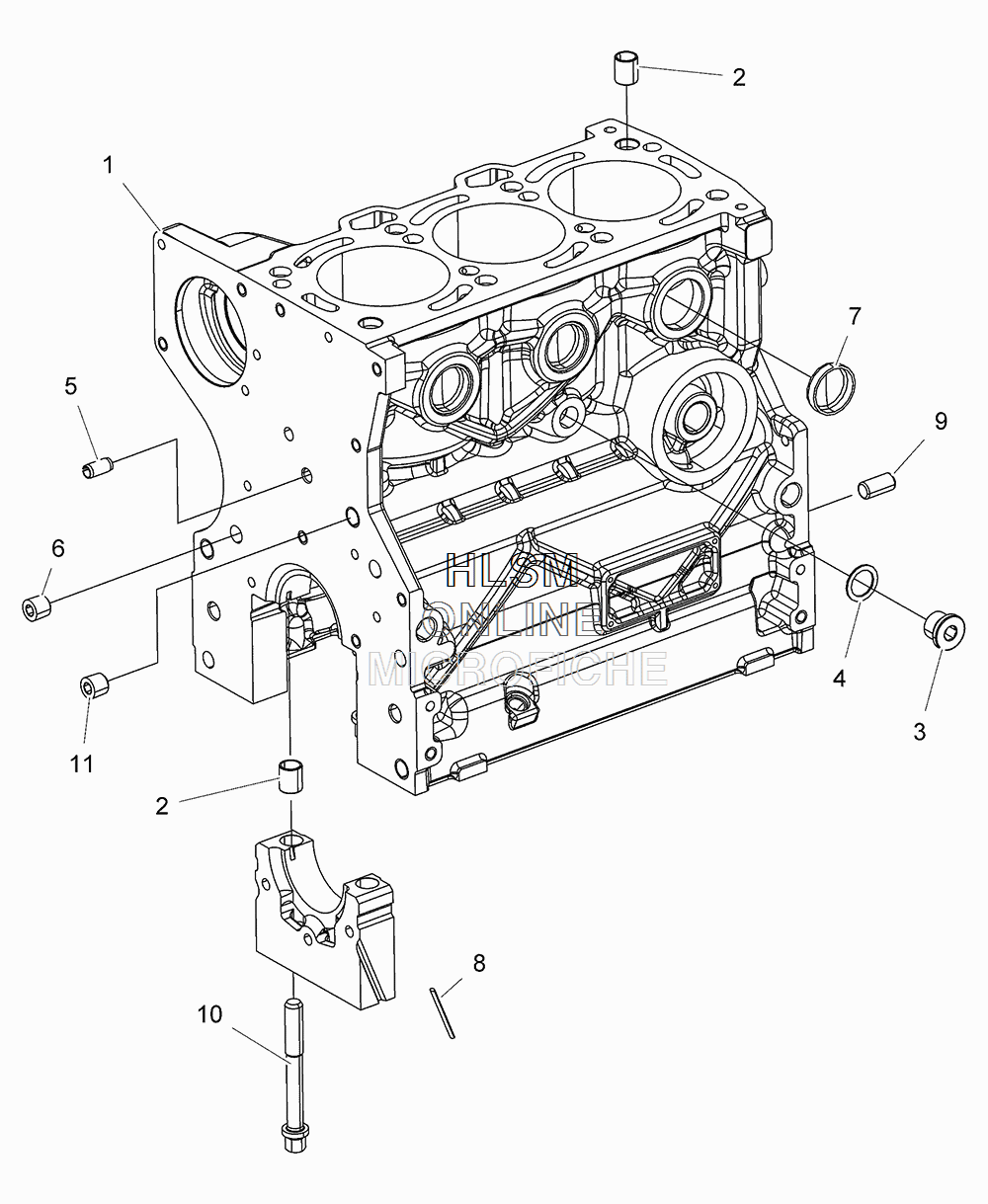

CRANKCASE для Polaris RANGER DIESEL (SAGE GREEN) [R16RTAD1A1] - 2016 года выпуска
-
№АртикулНазвание
-
13040253 ASM., CRANKCASE (INCL. 5-8,10)ASM., CRANKCASE (INCL. 5-8,10)
-
23040035 SLEEVESLEEVE
-
33040249 PLUG, M10PLUG, M10
-
43040248 GASKET, COPPER, DIAM. 10GASKET, COPPER, DIAM. 10
-
53040182 TAPER PIN, 8X16TAPER PIN, 8X16
-
63040198 TAPER PLUG, M12TAPER PLUG, M12
-
73040189 PLUG, DIAM. 30PLUG, DIAM. 30
-
83040071 GASKETGASKET
-
93040180 DOWEL PIN, 10X20DOWEL PIN, 10X20
-
103040244 FIX. SCREWFIX. SCREW
-
113040308 TAPER PIN, M12TAPER PIN, M12
