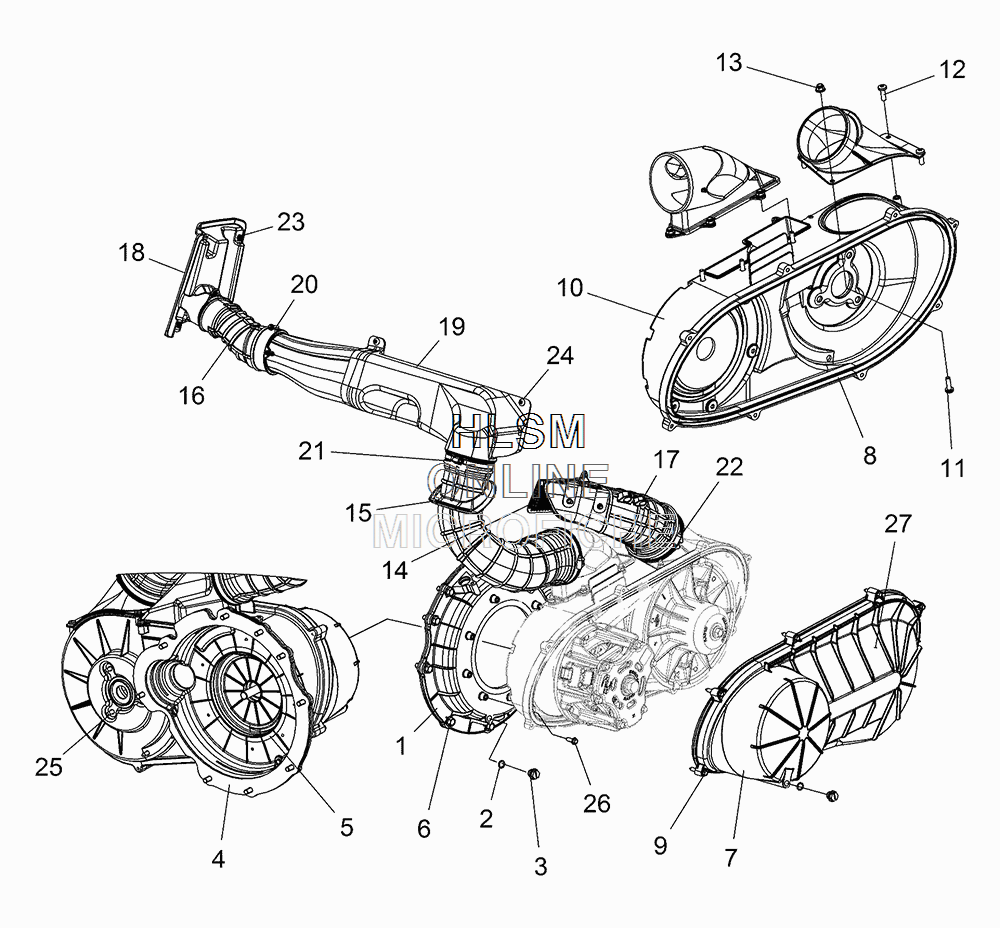

CLUTCH COVER AND DUCTING для Polaris RANGER DIESEL (SAGE GREEN) [R16RTAD1E1] - 2016 года выпуска
-
№АртикулНазвание
-
12635432 ASM., COVER, FLY WHEEL (INCL QTY1 OF 2,QTY1 OF 3)ASM., COVER, FLY WHEEL (INCL QTY1 OF 2,QTY1 OF 3)
-
25410542 O-RINGO-RING
-
35434264 PLUG, DRAIN, CLUTCH COVERPLUG, DRAIN, CLUTCH COVER
-
45814108 SEAL, FLY WHEEL, COVERSEAL, FLY WHEEL, COVER
-
55814109 SEAL, CLUTCH COVER, INNERSEAL, CLUTCH COVER, INNER
-
67518514 BOLT, M8BOLT, M8
-
72635337 ASM., COVER, CLUTCH, OUTER DSL (INCL QTY1 OF 2,QTY1 OF 3)ASM., COVER, CLUTCH, OUTER DSL (INCL QTY1 OF 2,QTY1 OF 3)
-
85521831 SEAL, OUTER CLUTCH COVERSEAL, OUTER CLUTCH COVER
-
97519330 SCREWSCREW
-
102635338 ASM., COVER, CLUTCH, INNER DSL (INCL 11-13)ASM., COVER, CLUTCH, INNER DSL (INCL 11-13)
-
117518546 SCREWSCREW
-
127519205 SCREWSCREW
-
137547453 NUTNUT
-
145256957 BRACKET, SCREEN, BELTBRACKET, SCREEN, BELT
-
155414565 HOSE, CLUTCH, AIR INLETHOSE, CLUTCH, AIR INLET
-
165414854 HOSE, INTAKE, CLUTCHHOSE, INTAKE, CLUTCH
-
175415152 HOSE, CLUTCH, AIR OUTLET, DSLHOSE, CLUTCH, AIR OUTLET, DSL
-
185450695 INTAKE, FENDER, REARINTAKE, FENDER, REAR
-
195451066 DUCT, INTAKE, CLUTCHDUCT, INTAKE, CLUTCH
-
207080707 CLAMP, BAND, NARROW, 60-80MMCLAMP, BAND, NARROW, 60-80MM
-
217081279 CLAMP, BAND, NARROW, 70-90MMCLAMP, BAND, NARROW, 70-90MM
-
227081626 CLAMP, WORM DRIVECLAMP, WORM DRIVE
-
237518238 SCREWSCREW
-
247519045 SCREWSCREW
-
257519278 ASM., BOLT/WASHER, 20MM (INCL. 26,27)ASM., BOLT/WASHER, 20MM (INCL. 26,27)
-
267520055 SCREW HI/LOSCREW HI/LO
-
277177469 DECAL, BELT, CAUTION/CHECKDECAL, BELT, CAUTION/CHECK
