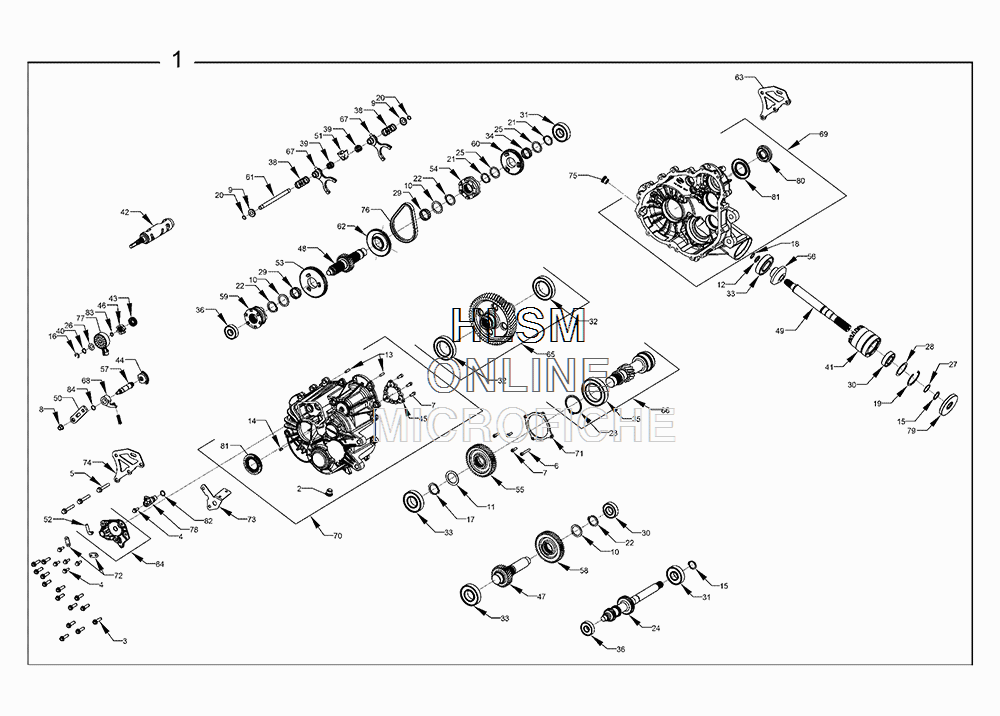

MAIN GEARCASE для Polaris RANGER ETX (SAGE GREEN) [RMA32A1] - 2016 года выпуска
-
№АртикулНазвание
-
11333506 ASM.,MAIN GEARCASE (INCL. ALL)ASM.,MAIN GEARCASE (INCL. ALL)
-
23234756 PLUG, M18 X 1.5, MAGNETICPLUG, M18 X 1.5, MAGNETIC
-
33234898 SCREW, HEX FLANGE HEAD, M8 X 1.25 X 30SCREW, HEX FLANGE HEAD, M8 X 1.25 X 30
-
43235206 SCREW, HEX FLANGE HEAD, M6 X 1 X 20SCREW, HEX FLANGE HEAD, M6 X 1 X 20
-
53235207 SCREW, HEX FLANGE M8 X 50SCREW, HEX FLANGE M8 X 50
-
63235208 SCREW, SOCKET HEAD, CAP, M6 X 1.0 X 40SCREW, SOCKET HEAD, CAP, M6 X 1.0 X 40
-
73235332 SCREW, SOCKET HEAD, CAP, M6 X 1.0 X 18SCREW, SOCKET HEAD, CAP, M6 X 1.0 X 18
-
83235210 NUT, LOCK HEX FLANGE, NYLON M8 X 1.25NUT, LOCK HEX FLANGE, NYLON M8 X 1.25
-
93234091 WASHER, CUPWASHER, CUP
-
103235211 WASHER, 32.3 X 42 X 1.5WASHER, 32.3 X 42 X 1.5
-
113235212 WASHER, 35.6 X 57 X 1.5WASHER, 35.6 X 57 X 1.5
-
123235213 WASHER, 17.3 X 25 X 1.5WASHER, 17.3 X 25 X 1.5
-
133234330 PIN, DOWEL, 6 X 20PIN, DOWEL, 6 X 20
-
147043746 PIN, SPRING, SLOTTED 6 X 12PIN, SPRING, SLOTTED 6 X 12
-
153233106 RING, RETAINING BASIC, EXTERNAL .984RING, RETAINING BASIC, EXTERNAL .984
-
163233834 RING, SNAPRING, SNAP
-
173233364 RING, RETAINING, SHAFT, DIA. 1.375RING, RETAINING, SHAFT, DIA. 1.375
-
183234318 RING, RETAINING, EXTERNAL SHR-66RING, RETAINING, EXTERNAL SHR-66
-
193234269 RING, RETAINING BASIC, INTERNAL 2.047RING, RETAINING BASIC, INTERNAL 2.047
-
203234090 RING, RETAINING BASIC, EXTERNAL .428RING, RETAINING BASIC, EXTERNAL .428
-
213234205 RING, RETAININGRING, RETAINING
-
223235214 RING, RETAINING BASIC, EXTERNAL MSR-32RING, RETAINING BASIC, EXTERNAL MSR-32
-
233235216 RING, RETAINING, VSH-237RING, RETAINING, VSH-237
-
243235533 SHAFT, INPUT BOSS L/W UTILITYSHAFT, INPUT BOSS L/W UTILITY
-
253233378 WASHER, THRUST, 1.187 X 1.500 X .0600WASHER, THRUST, 1.187 X 1.500 X .0600
-
263234642 WASHER, THRUST, .446 X .88 X .025WASHER, THRUST, .446 X .88 X .025
-
273234272 SHIM, 1.180 OD X .995 IDSHIM, 1.180 OD X .995 ID
-
283234273 SHIM, 2.040 OD X 1.63 IDSHIM, 2.040 OD X 1.63 ID
-
293233014 BEARING, NEEDLE, CAGE ASSYBEARING, NEEDLE, CAGE ASSY
-
303233019 BEARING, BALL, 6205 C3 25X52X15BEARING, BALL, 6205 C3 25X52X15
-
313233020 BEARING, BALL, 6305 C3, 25 X 62 X 17BEARING, BALL, 6305 C3, 25 X 62 X 17
-
323233268 BEARING, BALL, 6010 C3 50X80X16BEARING, BALL, 6010 C3 50X80X16
-
333234065 BEARING, BALL, 6207 C3 35X72X17BEARING, BALL, 6207 C3 35X72X17
-
343233384 BEARING, NEEDLE, CAGE ASSYBEARING, NEEDLE, CAGE ASSY
-
353235218 BEARING, BALL, 6012 C3 60 X 95 X 18BEARING, BALL, 6012 C3 60 X 95 X 18
-
363234652 BEARING, BALL 6303, 17 X 47 X 14BEARING, BALL 6303, 17 X 47 X 14
-
373233830 SPRING, COMPRESSION, .360 OD X 1.125SPRING, COMPRESSION, .360 OD X 1.125
-
383234078 SPRING, COMPRESSION, .92 O.D. X 2.000SPRING, COMPRESSION, .92 O.D. X 2.000
-
393234089 SPRING, COMPRESSION, .46 I.D. X .73SPRING, COMPRESSION, .46 I.D. X .73
-
403235327 SPRING, WASHERSPRING, WASHER
-
413234278 TUBE, SNORKEL MACHTUBE, SNORKEL MACH
-
423235463 DRUM, SHIFT MACHDRUM, SHIFT MACH
-
433233839 GEAR, SECTOR 16TGEAR, SECTOR 16T
-
443233832 GEAR, SECTOR, 31TGEAR, SECTOR, 31T
-
453235456 PLATE, PARK, 12-FACEPLATE, PARK, 12-FACE
-
463235603 STAR, DETENTSTAR, DETENT
-
473235223 SHAFT, IDLER 29TSHAFT, IDLER 29T
-
483235451 SHAFT, REVERSE 25TSHAFT, REVERSE 25T
-
493235394 SHAFT, FRONT OUTPUTSHAFT, FRONT OUTPUT
-
503235474 BELLCRANK, TITANBELLCRANK, TITAN
-
513234073 COLLAR, SHIFTCOLLAR, SHIFT
-
523234230 TUBE, VENT, 90 -1/4'' HOSETUBE, VENT, 90 -1/4'' HOSE
-
533235232 GEAR, LOW 67TGEAR, LOW 67T
-
543235233 ENGAGEMENT DOG, 6-FACEENGAGEMENT DOG, 6-FACE
-
553235236 GEAR, 46T STAGE 3GEAR, 46T STAGE 3
-
563235237 GEAR, 13T SNORKELGEAR, 13T SNORKEL
-
573235238 SHAFT, SHIFTSHAFT, SHIFT
-
583235450 GEAR 48T STAGE 2GEAR 48T STAGE 2
-
593235457 SHIFT DOG, PARKSHIFT DOG, PARK
-
603235534 GEAR, 56TGEAR, 56T
-
613235542 RAIL, SHIFT SHAFTRAIL, SHIFT SHAFT
-
623235755 SPROCKET 48T, 6-FACESPROCKET 48T, 6-FACE
-
633235510 WELDMENT, REAR MOUNT BRACKETWELDMENT, REAR MOUNT BRACKET
-
643235713 SUBASSEMBLY, SECTION COVER (INCLUDES ALL HARDWARE)SUBASSEMBLY, SECTION COVER (INCLUDES ALL HARDWARE)
-
653235335 SUBASSEMBLY, OUTPUT (INCLUDES BEARINGS)SUBASSEMBLY, OUTPUT (INCLUDES BEARINGS)
-
663235336 SUBASSEMBLY, PINION, (BEARING AND RET. RING)SUBASSEMBLY, PINION, (BEARING AND RET. RING)
-
673235454 SUBASSEMBLY FORK, SHIFTSUBASSEMBLY FORK, SHIFT
-
683235452 SUBASSEMBLY, PAWL, DETENT, ROLLERSUBASSEMBLY, PAWL, DETENT, ROLLER
-
693235550 SUBASSEMBLY, LEFT HAND CASE (INCLUDES ALL HARDWARE)SUBASSEMBLY, LEFT HAND CASE (INCLUDES ALL HARDWARE)
-
703235792 SUBASSEMBLY, RIGHT HAND COVER (INCLUDES ALL HARDWARE)SUBASSEMBLY, RIGHT HAND COVER (INCLUDES ALL HARDWARE)
-
713235241 COVER, BEARING, CENTER DRIVECOVER, BEARING, CENTER DRIVE
-
723235350 BRACKET, WIRE HARNESSBRACKET, WIRE HARNESS
-
735257251 BRACKET, WIRE HARNESSBRACKET, WIRE HARNESS
-
743235511 BRACKET REAR MOUNTBRACKET REAR MOUNT
-
753234755 PLUG, M18 X 1.5PLUG, M18 X 1.5
-
763234737 CHAIN, SILENT, TYPE 101, .25P X .40W X 58LCHAIN, SILENT, TYPE 101, .25P X .40W X 58L
-
777661999 SWITCH, ROTARY , 2 PIN RESISTIVESWITCH, ROTARY , 2 PIN RESISTIVE
-
784013908 SENSOR, SPEEDSENSOR, SPEED
-
793234113 SEAL, TRIPLE LIP, 25 X 80 X 10SEAL, TRIPLE LIP, 25 X 80 X 10
-
803234851 SEAL, DUAL LIP, 25 X 47 VITONSEAL, DUAL LIP, 25 X 47 VITON
-
813235052 SEAL, TRIPLE LIP, VITON, 40 X 70 X 7SEAL, TRIPLE LIP, VITON, 40 X 70 X 7
-
823234302 O-RING, -113O-RING, -113
-
833233836 O-RING, -012 VITONO-RING, -012 VITON
-
843233828 O-RING, -014 VITONO-RING, -014 VITON
