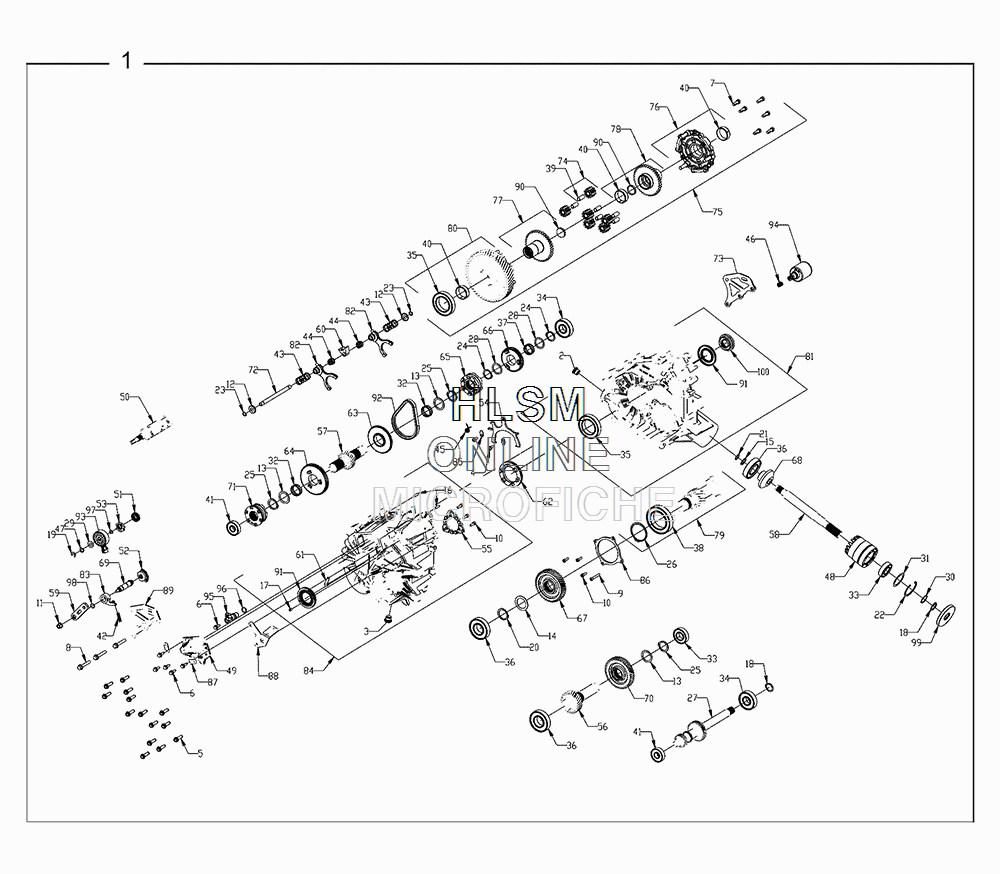

MAIN GEARCASE для Polaris RANGER XP 570 (SAGE GREEN) [RTA57A1] - 2016 года выпуска
-
№АртикулНазвание
-
11333469 ASM., MAIN GEARCASE (INCL. ALL)ASM., MAIN GEARCASE (INCL. ALL)
-
23234755 PLUGPLUG
-
33234756 PLUG, MAGNETICPLUG, MAGNETIC
-
43234309 SCREW, TORX PAN HEADSCREW, TORX PAN HEAD
-
53234898 SCREW, HEX FLANGE HEADSCREW, HEX FLANGE HEAD
-
63235206 SCREW, HEX FLANGE HEADSCREW, HEX FLANGE HEAD
-
73235096 SCREW, CAP HHSCREW, CAP HH
-
83235207 SCREW, HEX FLANGESCREW, HEX FLANGE
-
93235208 SCREW, SOCKET HEAD, CAPSCREW, SOCKET HEAD, CAP
-
103235332 SCREW, SOCKET HEAD, CAPSCREW, SOCKET HEAD, CAP
-
113235210 NUT, HEX FLANGE, NYLONNUT, HEX FLANGE, NYLON
-
123234091 WASHER, CUPWASHER, CUP
-
133235211 WASHERWASHER
-
143235212 WASHERWASHER
-
153235213 WASHERWASHER
-
163234330 PIN, SOLIDPIN, SOLID
-
177043746 SPRING, PIN, SLOTTEDSPRING, PIN, SLOTTED
-
183233106 RING, RETAINING, BASIC, EXTERNALRING, RETAINING, BASIC, EXTERNAL
-
193233834 RING, SNAPRING, SNAP
-
203233364 RING, RETAININGRING, RETAINING
-
213234318 RING, RETAINING, EXTERNALRING, RETAINING, EXTERNAL
-
223234269 RING, RETAINING, BASIC, INTERNALRING, RETAINING, BASIC, INTERNAL
-
233234090 RING, RETAININGRING, RETAINING
-
243234205 RING, RETAININGRING, RETAINING
-
253235214 RING, RETAINING, EXTERNALRING, RETAINING, EXTERNAL
-
263235216 RING, RETAININGRING, RETAINING
-
273235429 INPUT, SHAFT BOSS L/W UTILITYINPUT, SHAFT BOSS L/W UTILITY
-
283233378 WASHER, THRUSTWASHER, THRUST
-
293234642 WASHER, THRUSTWASHER, THRUST
-
303234272 SHIMSHIM
-
313234273 SHIMSHIM
-
323233014 BEARING, NEEDLEBEARING, NEEDLE
-
333233019 BEARINGBEARING
-
343233020 BEARINGBEARING
-
353233268 BEARING, BALLBEARING, BALL
-
363234065 BEARING, BALLBEARING, BALL
-
373233384 BEARING, NEEDLEBEARING, NEEDLE
-
383235218 BEARING, BALLBEARING, BALL
-
393234239 BEARING, PLAINBEARING, PLAIN
-
403234241 BEARING, PLAINBEARING, PLAIN
-
413234652 BEARING, BALLBEARING, BALL
-
423233830 SPRING, COMPRESSIONSPRING, COMPRESSION
-
433234078 SPRING, COMPRESSIONSPRING, COMPRESSION
-
443234089 SPRING, COMPRESSIONSPRING, COMPRESSION
-
453234276 SPRING, TORSION, RETURNSPRING, TORSION, RETURN
-
463234277 SPRING, COMPRESSIONSPRING, COMPRESSION
-
473235327 SPRING, TORSIONSPRING, TORSION
-
483234278 TUBETUBE
-
493234188 COVER, SECTOR GEARSCOVER, SECTOR GEARS
-
503235463 DRUM, SHIFTDRUM, SHIFT
-
513233839 GEAR, SECTOR, 16TGEAR, SECTOR, 16T
-
523233832 GEAR, SECTOR, 31TGEAR, SECTOR, 31T
-
533235453 STAR, DETENTSTAR, DETENT
-
543235455 FORK, SHIFTFORK, SHIFT
-
553235456 PLATE, PARKPLATE, PARK
-
563235223 SHAFT, IDLER, 29TSHAFT, IDLER, 29T
-
573235451 SHAFT, REVERSE, 25TSHAFT, REVERSE, 25T
-
583235394 SHAFT, FRONT OUTPUTSHAFT, FRONT OUTPUT
-
593235474 BELLCRANKBELLCRANK
-
603234073 COLLAR, SHIFTCOLLAR, SHIFT
-
613234230 TUB, VENTTUB, VENT
-
623234928 DOG, ENGAGEMENTDOG, ENGAGEMENT
-
633235231 SPROCKET, 48T, 6-FACESPROCKET, 48T, 6-FACE
-
643235232 GEAR, LOW, 67TGEAR, LOW, 67T
-
653235233 DOG, ENGAGEMENT, 6-FACEDOG, ENGAGEMENT, 6-FACE
-
663235234 GEAR, 53TGEAR, 53T
-
673235236 GEAR, 46T, STAGE 3GEAR, 46T, STAGE 3
-
693235238 SHAFT, SHIFTSHAFT, SHIFT
-
683235237 GEAR, 13T, FRONT OUTPUTGEAR, 13T, FRONT OUTPUT
-
703235450 GEAR, 48T, STAGE 2GEAR, 48T, STAGE 2
-
713235457 DOG, SHIFT, PARK/LOWDOG, SHIFT, PARK/LOW
-
723235542 RAIL, SHIFT SHAFTRAIL, SHIFT SHAFT
-
733235510 BRACKET, REAR MOUNTBRACKET, REAR MOUNT
-
743234469 SUBASM., GEAR (INCL. BUSHING)SUBASM., GEAR (INCL. BUSHING)
-
753235373 DIFFERENTIAL, LOCKINGDIFFERENTIAL, LOCKING
-
763235376 SUBASM., DIFFERENTIAL COVER (INCL. PLUG, BUSHING)SUBASM., DIFFERENTIAL COVER (INCL. PLUG, BUSHING)
-
773235374 SUBASM., GEAR, 39T, GEAR SIDE (INCL. PLUG)SUBASM., GEAR, 39T, GEAR SIDE (INCL. PLUG)
-
783235375 SUBASM., 39T, GEAR SIDESUBASM., 39T, GEAR SIDE
-
793235336 SUBASM., PINION SHAFT (INCL. BEARING, RETAINING RING)SUBASM., PINION SHAFT (INCL. BEARING, RETAINING RING)
-
803235378 SUBASM., GEAR, 53T (INCL. PINS, BUSHING, BEARING)SUBASM., GEAR, 53T (INCL. PINS, BUSHING, BEARING)
-
813235422 SUBASM., LEFT HAND CASE (INCL. HARDWARE)SUBASM., LEFT HAND CASE (INCL. HARDWARE)
-
823235454 SUBASM., SHIFT FORKSUBASM., SHIFT FORK
-
833235452 PAWL, ROLLERPAWL, ROLLER
-
843235444 SUBASM., RIGHT HAND CASE (INCL. HARDWARE)SUBASM., RIGHT HAND CASE (INCL. HARDWARE)
-
853234934 RETAINER, FORKRETAINER, FORK
-
863235241 COVER, BEARING, CENTER DRIVECOVER, BEARING, CENTER DRIVE
-
873235350 BRACKET, WIRE HARNESSBRACKET, WIRE HARNESS
-
885257251 BRACKET, HARNESS MOUNTBRACKET, HARNESS MOUNT
-
893235511 BRACKET, MOUNT, REARBRACKET, MOUNT, REAR
-
903234249 PLUG, EXPANSIONPLUG, EXPANSION
-
913235243 SPACERSPACER
-
923234737 CHAIN, SILENTCHAIN, SILENT
-
937661999 SWITCH, ROTARYSWITCH, ROTARY
-
943235478 SOLENOIDSOLENOID
-
954013908 SENSOR, SPEEDSENSOR, SPEED
-
963234302 O-RINGO-RING
-
973233836 O-RINGO-RING
-
983233828 O-RINGO-RING
-
993234113 SEAL, TRIPLE LIPSEAL, TRIPLE LIP
-
1003234851 SEALSEAL
-
1013235052 SEAL, TRIPLE LIPSEAL, TRIPLE LIP
