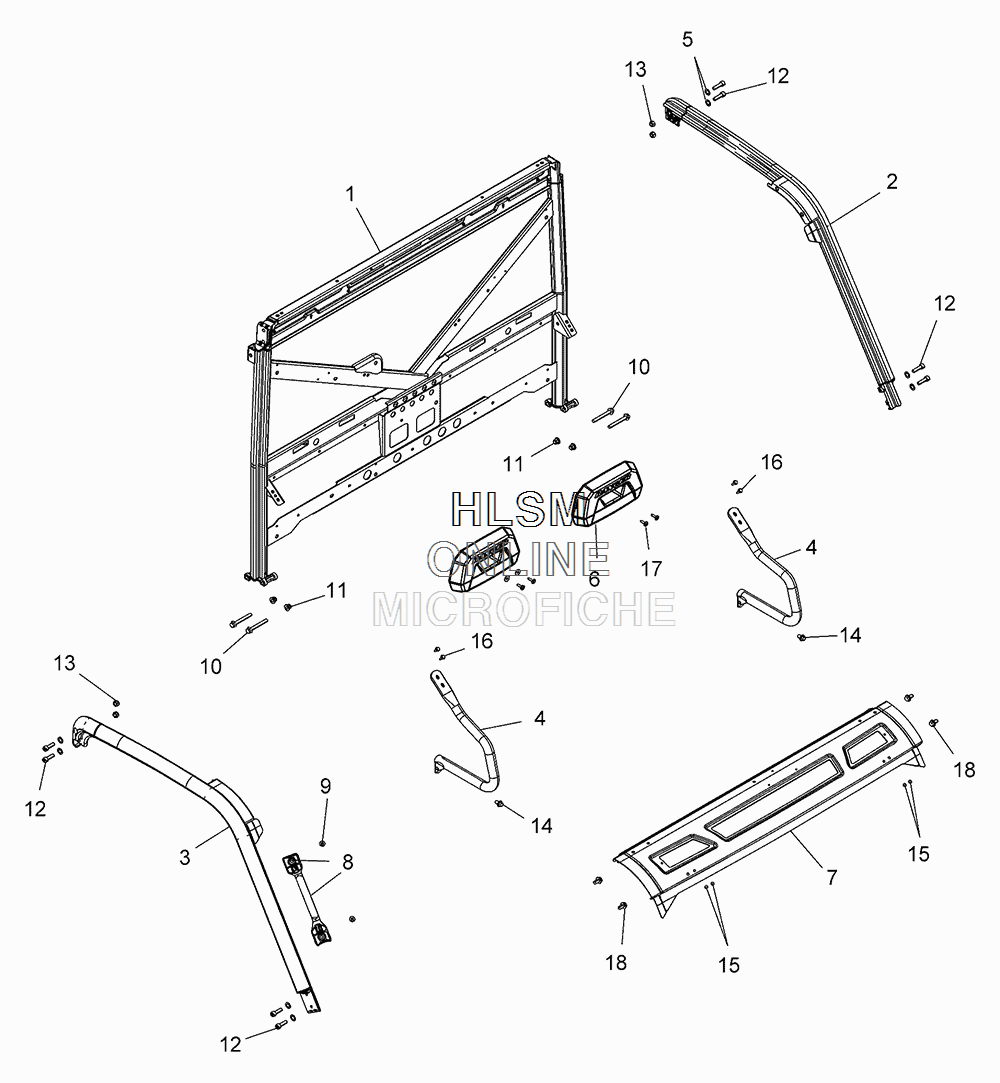

CAB FRAME для Polaris RANGER XP 900 (BLUE FIRE (TRAIL EDITION) [R16RTU87AB] - 2016 года выпуска
-
№АртикулНазвание
-
11021852-458 FRAME, CAB, REAR, MATTE BLACKFRAME, CAB, REAR, MATTE BLACK
-
21018082-458 FRAME, CAB, FRONT, (LEFT HAND), MATTE BLACKFRAME, CAB, FRONT, (LEFT HAND), MATTE BLACK
-
31018083-458 FRAME, CAB, FRONT, (RIGHT HAND), MATTE BLACKFRAME, CAB, FRONT, (RIGHT HAND), MATTE BLACK
-
45338917-458 HIP, BOLSTER, MATTE BLACK {NOT USED WITH (M87AL) (U87A9)HIP, BOLSTER, MATTE BLACK {NOT USED WITH (M87AL) (U87A9)
-
57555923 WASHERWASHER
-
65439110-070 HEADREST, BLACKHEADREST, BLACK
-
75255166-458 PLATE, WINDSHIELD MOUNT, UPPER, MATTE BLACKPLATE, WINDSHIELD MOUNT, UPPER, MATTE BLACK
-
85450844-070 HANDLE, GRAB, ROPS, BLACKHANDLE, GRAB, ROPS, BLACK
-
97518555 BOLTBOLT
-
107519363 SCREWSCREW
-
117547333 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
127519959 SCREWSCREW
-
137547268 NUT, NYLOKNUT, NYLOK
-
147517956 SCREW ({NOT USED WITH (M87AL) (U87A9)SCREW ({NOT USED WITH (M87AL) (U87A9)
-
157671178 PLUG, FENDER, REARPLUG, FENDER, REAR
-
167519650 SCREW ({NOT USED WITH (M87AL) (U87A9)SCREW ({NOT USED WITH (M87AL) (U87A9)
-
177621460 RIVETRIVET
-
187518460 BOLTBOLT
