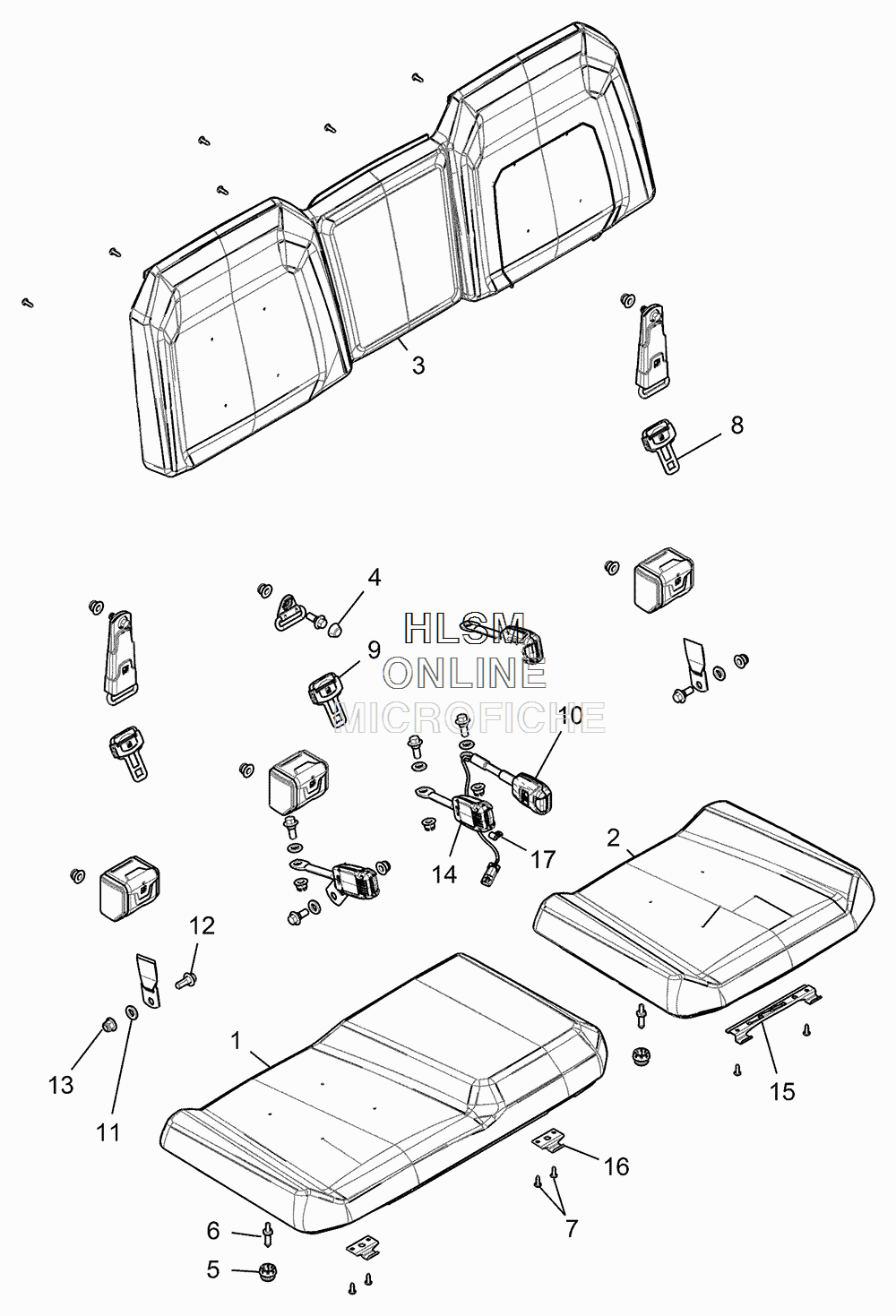

SEAT- 60/40 FULL BACK для Polaris RANGER XP 900 (SOLAR RED) [R16RTA87A4] - 2016 года выпуска
-
№АртикулНазвание
-
12684965-070 ASM., SEAT, BOTTOM, 60, BLACK (INCL.16, QTY 4 OF 7)ASM., SEAT, BOTTOM, 60, BLACK (INCL.16, QTY 4 OF 7)
-
22684966-070 ASM., SEAT, BOTTOM, 40, BLACK (INCL. 15, QTY 2 OF 7)ASM., SEAT, BOTTOM, 40, BLACK (INCL. 15, QTY 2 OF 7)
-
32685653-070 ASM., SEAT, BACK, BLACKASM., SEAT, BACK, BLACK
-
45450708 CAP, BOLT HEADCAP, BOLT HEAD
-
55439179 GROMMETGROMMET
-
65910404 PIN, SEAT LATCHPIN, SEAT LATCH
-
77519045 SCREWSCREW
-
82635118 ASM., SEAT BELT, 3 POINTASM., SEAT BELT, 3 POINT
-
92635052 ASM., SEAT BELT, 3 POINT, CENTERASM., SEAT BELT, 3 POINT, CENTER
-
102635609 BUCKLE, SEAT BELT, SWITCHBUCKLE, SEAT BELT, SWITCH
-
115813829 WASHER, RUBBERWASHER, RUBBER
-
127519770 SCREWSCREW
-
137547441 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
142635235 BUCKLE, SEAT BELT, PASSENGERBUCKLE, SEAT BELT, PASSENGER
-
155259065 BRACKET, SEAT HINGE, DOUBLEBRACKET, SEAT HINGE, DOUBLE
-
165259064 BRACKET, SEAT HINGEBRACKET, SEAT HINGE
-
177081246 CLAMP, WIRE/TUBECLAMP, WIRE/TUBE
