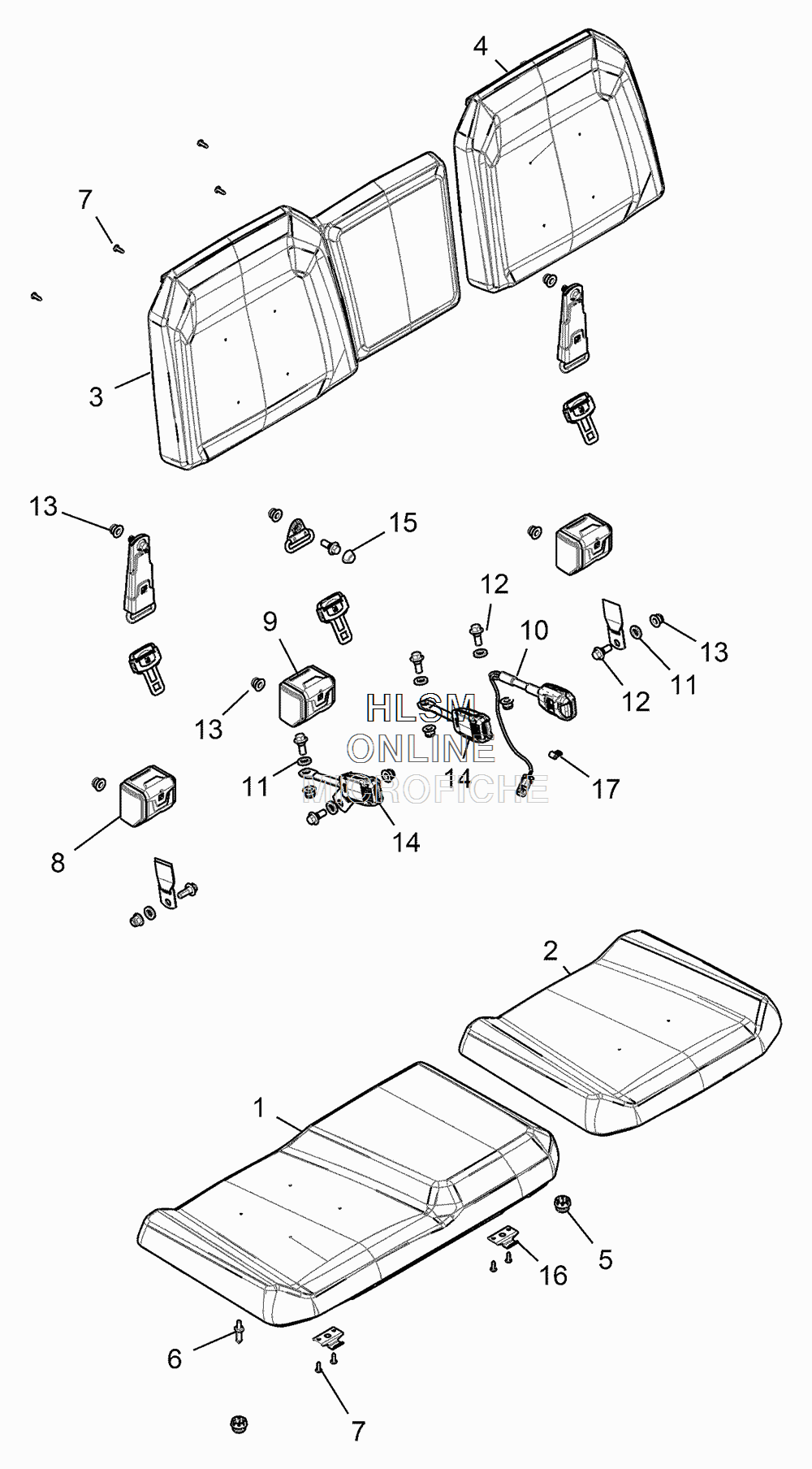

SEAT- 60/40 для Polaris RANGER XP 900 (STEALTH BLACK (HIGH LIFTER EDITION) [R16RTM87AL] - 2016 года выпуска
-
№АртикулНазвание
-
12686240 ASM-SEAT, BTM, 60, O.MAD/WHT (INCL 6, QTY 4 OF 7) (M87AL)ASM-SEAT, BTM, 60, O.MAD/WHT (INCL 6, QTY 4 OF 7) (M87AL)
-
12686286 CVR-SEAT BTM, 60, O.MAD/WHT (M87AL)CVR-SEAT BTM, 60, O.MAD/WHT (M87AL)
-
12686240 ASM., SEAT, BOTTOM, 60, O.MADNESS/WHITE (INCL 6, QTY 4 OF 7) (M87AL)ASM., SEAT, BOTTOM, 60, O.MADNESS/WHITE (INCL 6, QTY 4 OF 7) (M87AL)
-
12686286 COVERING, BOTTOM, 60, O. MADNESS/WHITE (M87AL)COVERING, BOTTOM, 60, O. MADNESS/WHITE (M87AL)
-
22686242 ASM-SEAT, BTM, 40, O.MAD/WHT (M87AL)ASM-SEAT, BTM, 40, O.MAD/WHT (M87AL)
-
22686288 CVR-SEAT BTM, 40, O.MAD/WHT (M87AL)CVR-SEAT BTM, 40, O.MAD/WHT (M87AL)
-
22686241 ASM., SEAT, BOTTOM, 40, O. MADNESS/WHITE (M87AL)ASM., SEAT, BOTTOM, 40, O. MADNESS/WHITE (M87AL)
-
22686287 COVERING, BOTTOM, 40, O. MADNESS/WHITE (M87AL)COVERING, BOTTOM, 40, O. MADNESS/WHITE (M87AL)
-
32686239 ASM-SEAT, BACK, 60, O.MAD/WHT (M87AL)ASM-SEAT, BACK, 60, O.MAD/WHT (M87AL)
-
32686285 CVR-SEAT BACK, 60, O.MAD/WHT (M87AL)CVR-SEAT BACK, 60, O.MAD/WHT (M87AL)
-
32686239 ASM., SEAT, BACK, 60, O. MADNESS/WHITE (M87AL)ASM., SEAT, BACK, 60, O. MADNESS/WHITE (M87AL)
-
32686285 COVERING, BACK, 60, O. MADNESS/WHITE (M87AL)COVERING, BACK, 60, O. MADNESS/WHITE (M87AL)
-
42686241 ASM-SEAT, BACK, 40, O.MAD/WHT (M87AL)ASM-SEAT, BACK, 40, O.MAD/WHT (M87AL)
-
42686287 CVR-SEAT BACK, 40, O.MAD/WHT (M87AL)CVR-SEAT BACK, 40, O.MAD/WHT (M87AL)
-
42686242 ASM., SEAT, BACK, 40, O.MADNESS/WHITE (M87AL)ASM., SEAT, BACK, 40, O.MADNESS/WHITE (M87AL)
-
42686288 COVERING, BACK, 40, O.MADNESS/WHITE (M87AL)COVERING, BACK, 40, O.MADNESS/WHITE (M87AL)
-
55439179 GROMMETGROMMET
-
65910404 PIN, SEAT LATCHPIN, SEAT LATCH
-
77519045 SCREWSCREW
-
82635118 ASM., SEAT BELT, 3 POINTASM., SEAT BELT, 3 POINT
-
92635052 ASM., SEAT BELT, 3 POINT, CENTERASM., SEAT BELT, 3 POINT, CENTER
-
102635609 BUCKLE, SEAT BELT, 90, SWITCHBUCKLE, SEAT BELT, 90, SWITCH
-
115813829 WASHER, RUBBERWASHER, RUBBER
-
127519770 SCREWSCREW
-
137547441 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
142635235 BUCKLE, SEAT BELT, PASSENGERBUCKLE, SEAT BELT, PASSENGER
-
155450708 CAP, BOLT HEADCAP, BOLT HEAD
-
165256836 BRACKET, SEAT HINGEBRACKET, SEAT HINGE
-
177081246 CLAMP, WIRE/TUBE .25 DIACLAMP, WIRE/TUBE .25 DIA
