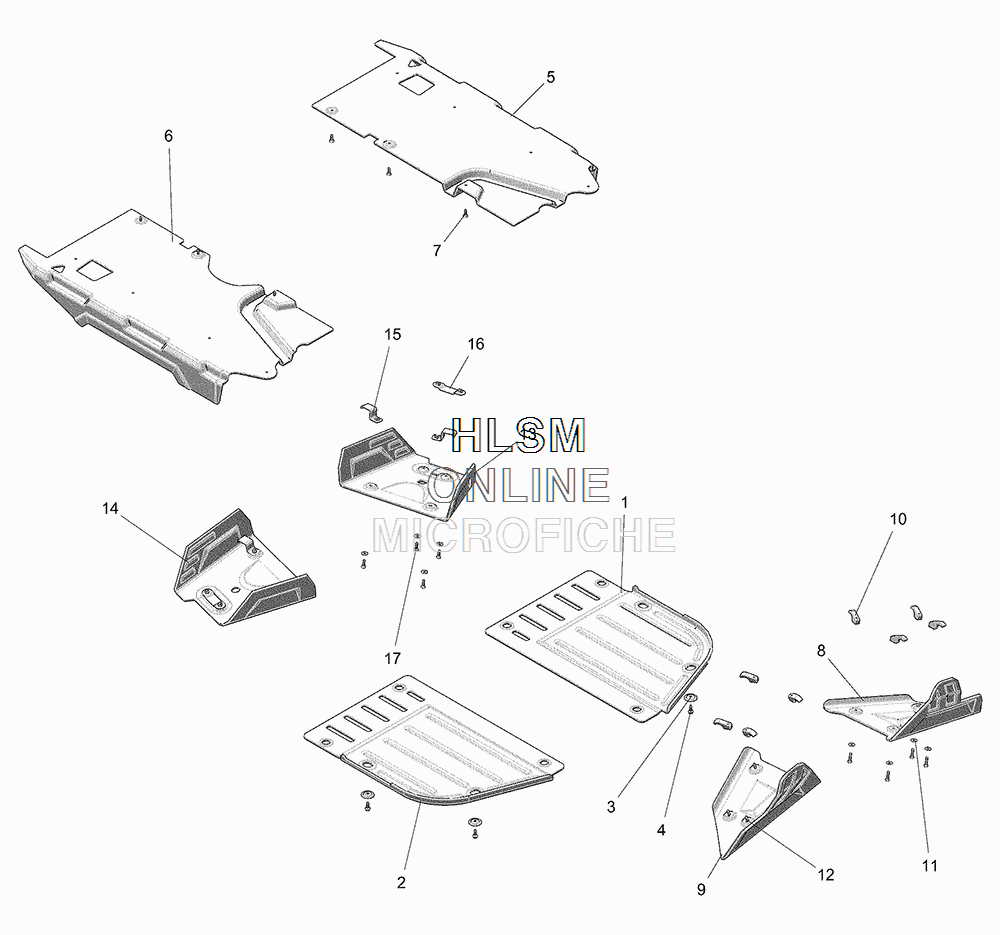

SKID PLATE для Polaris RANGER XP 900 (SUNSET RED) [R16RTE87AS] - 2016 года выпуска
-
№АртикулНазвание
-
15450877 PLATE-SKID,LH,TTNPLATE-SKID,LH,TTN
-
25450878 PLATE-SKID,RH,TTNPLATE-SKID,RH,TTN
-
37556065 WASHER-SKID PLATEWASHER-SKID PLATE
-
47518529 SCREWSCREW
-
55452556 PROTECTOR-UNDER BOX,LH,RGRPROTECTOR-UNDER BOX,LH,RGR
-
65452557 PROTECTOR-UNDER BOX,RH,RGRPROTECTOR-UNDER BOX,RH,RGR
-
77519731 SCREWSCREW
-
85452558 GUARD-A ARM,LH,F,RGRGUARD-A ARM,LH,F,RGR
-
95452559 GUARD-A ARM,RH,F,RGRGUARD-A ARM,RH,F,RGR
-
105140242 CLAMP-A ARM GUARD,FRCLAMP-A ARM GUARD,FR
-
117556064 WSHR-6.4X18.0X1.6 ZPBWSHR-6.4X18.0X1.6 ZPB
-
127518535 SCREWSCREW
-
135452560 GUARD-A ARM,LH,R,RGRGUARD-A ARM,LH,R,RGR
-
145452561 GUARD-A ARM,RH,R,RGRGUARD-A ARM,RH,R,RGR
-
155261708 CLAMP-A ARM GUARD,RR,INNERCLAMP-A ARM GUARD,RR,INNER
-
165261709 CLAMP-A ARM GUARD,RR,OUTERCLAMP-A ARM GUARD,RR,OUTER
-
177518546 SCREWSCREW
