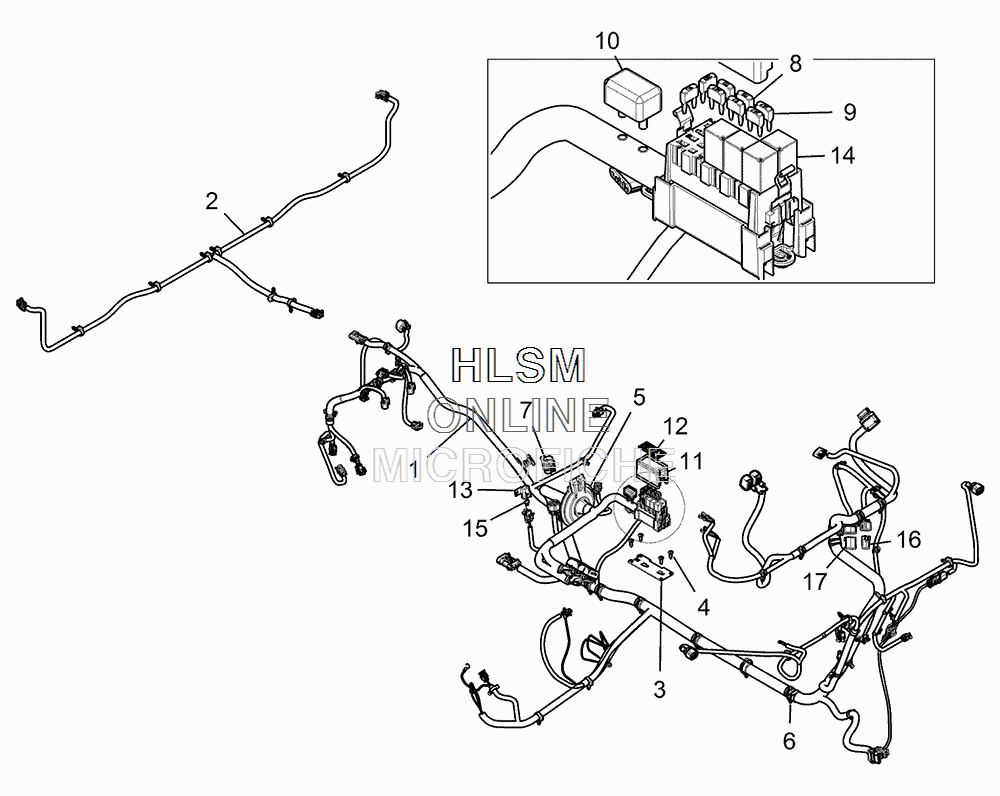

WIRE HARNESS для Polaris RANGER XP 900 (VELOCITY BLUE) [R16RTE87AV] - 2016 года выпуска
-
№АртикулНазвание
-
12413126 HARNESS, CHASSIS (INCL. 5-15)HARNESS, CHASSIS (INCL. 5-15)
-
22411801 HARNESS, BOXHARNESS, BOX
-
35258150 PLATE, FUSE, MOUNTPLATE, FUSE, MOUNT
-
47519045 SCREWSCREW
-
55414435 GROMMET, CHASSIS HARNESSGROMMET, CHASSIS HARNESS
-
67081496 CLIP, ROUTINGCLIP, ROUTING
-
74012170 COVER, DIAGNOSTIC W/CLIPCOVER, DIAGNOSTIC W/CLIP
-
82434016 FUSE, IGNITION, 10 AMPFUSE, IGNITION, 10 AMP
-
92434017 FUSE, PARK, 20 AMPFUSE, PARK, 20 AMP
-
102410881 BREAKER, CIRCUIT, 20 AMPBREAKER, CIRCUIT, 20 AMP
-
115438758 COVER, RELAY, RELAY/FUSE CENTERCOVER, RELAY, RELAY/FUSE CENTER
-
127177866 DECAL, RELAY/FUSE BLOCKDECAL, RELAY/FUSE BLOCK
-
134012260 COVER, FUSE HOLDERCOVER, FUSE HOLDER
-
144011283 RELAY, SEALEDRELAY, SEALED
-
152434015 FUSE, MAIN, 30AMPFUSE, MAIN, 30AMP
-
164014235 CONNECTOR, CAP, EPS SIGNAL (NON EPS MODELS)CONNECTOR, CAP, EPS SIGNAL (NON EPS MODELS)
-
174014236 CONNECTOR, CAP, EPS POWER (NON EPS MODELS)CONNECTOR, CAP, EPS POWER (NON EPS MODELS)
