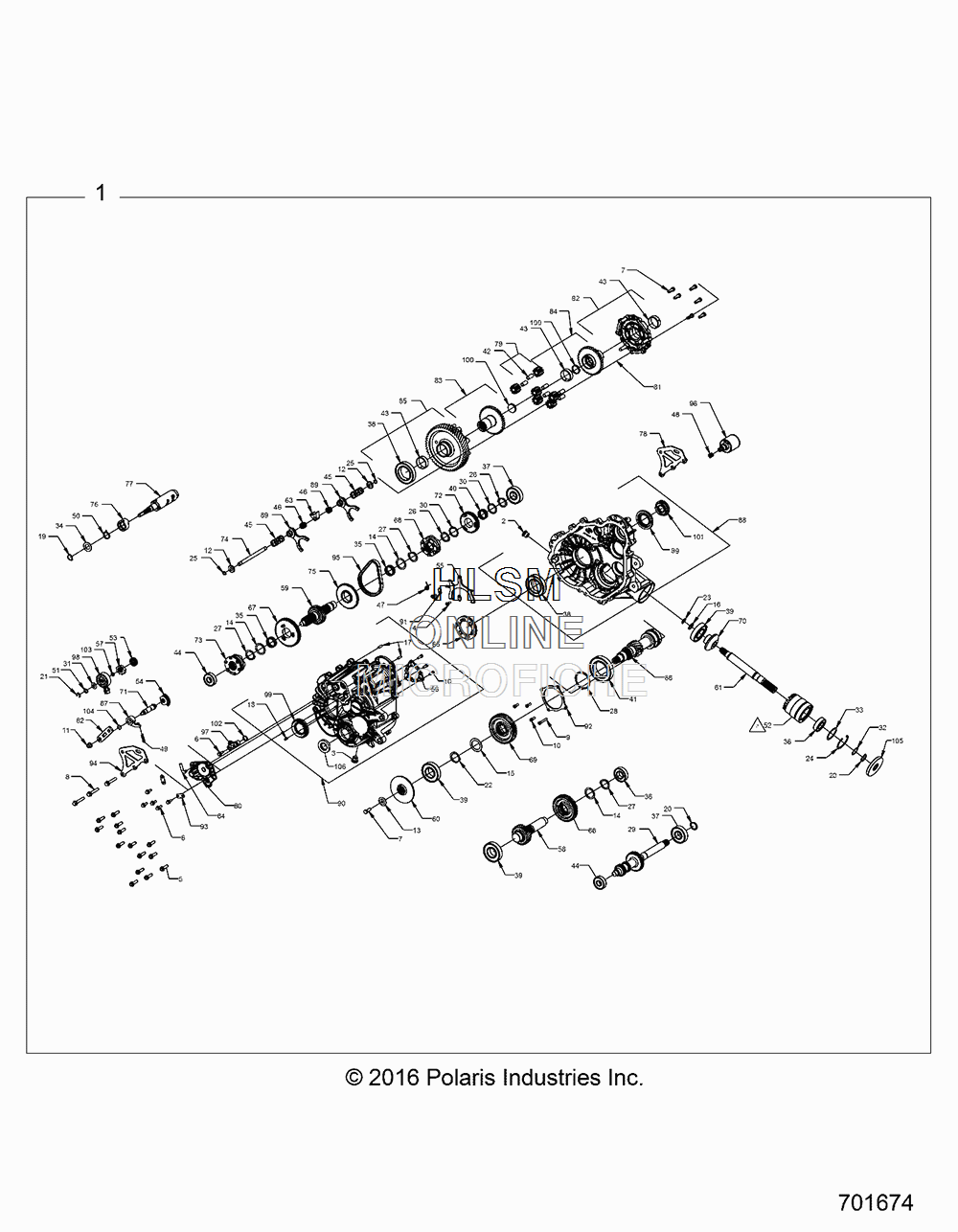

MAIN GEARCASE INTERNAL (2X4) для Polaris RANGER 1000 DIESEL POLAND (R05) - [R17RTED1F1] - 2017 года выпуска`
-
№АртикулНазвание
-
11333777 ASM-GEARCASE, DIESEL, EU/TR [INCL ALL]ASM-GEARCASE, DIESEL, EU/TR [INCL ALL]
-
23234755 PLUG, M18 X 1.5PLUG, M18 X 1.5
-
33234756 PLUG, M18 X 1.5, MAGNETICPLUG, M18 X 1.5, MAGNETIC
-
43234309 SCREW, TORX PAN HD M6 X 1 X 16SCREW, TORX PAN HD M6 X 1 X 16
-
53234898 SCREW, HEX FLANGE HEAD, M8 X 1.25 X 30SCREW, HEX FLANGE HEAD, M8 X 1.25 X 30
-
63235206 SCREW, HEX FLANGE HEAD, M6 X 1 X 20SCREW, HEX FLANGE HEAD, M6 X 1 X 20
-
73235096 SCREW, CAP HH M8 X 1.25 X 25SCREW, CAP HH M8 X 1.25 X 25
-
83235207 SCREW, HEX FLANGE M8 X 50SCREW, HEX FLANGE M8 X 50
-
93235208 SCREW, SOCKET HEAD, CAP, M6 X 1 X 40SCREW, SOCKET HEAD, CAP, M6 X 1 X 40
-
103235332 SCREW, SOCKET HEAD, CAP, M6 X 1 X 18SCREW, SOCKET HEAD, CAP, M6 X 1 X 18
-
113235210 NUT, LOCK HEX FLANGE, NYLON M8 X 1.25NUT, LOCK HEX FLANGE, NYLON M8 X 1.25
-
123234091 WASHER, CUPWASHER, CUP
-
133234952 WASHER, FENDER, 42506 X 1.25 X 0.0655WASHER, FENDER, 42506 X 1.25 X 0.0655
-
143235211 WASHER, 32.3 X 42 X 1.5WASHER, 32.3 X 42 X 1.5
-
153235212 WASHER, 35.6 X 50 X 1.5WASHER, 35.6 X 50 X 1.5
-
163235213 WASHER, 17.3 X 25 X 1.5WASHER, 17.3 X 25 X 1.5
-
173234330 PIN, DOWEL, 6 X 20PIN, DOWEL, 6 X 20
-
187043746 PIN, SPRING, SLOTTED 6 X 12PIN, SPRING, SLOTTED 6 X 12
-
193233045 RING, RETAINING, BASIC EXTERNAL 0.75RING, RETAINING, BASIC EXTERNAL 0.75
-
203233106 RING, RETAINING BASIC, EXTERNAL 0.984RING, RETAINING BASIC, EXTERNAL 0.984
-
213233834 RING, SNAPRING, SNAP
-
223233364 RING, RETAINING, SHAFT, DIA. 1.375RING, RETAINING, SHAFT, DIA. 1.375
-
233234318 RING, RETAINING, EXTERNAL SHR-66RING, RETAINING, EXTERNAL SHR-66
-
243234269 RING, RETAINING BASIC, INTERNAL 2.047RING, RETAINING BASIC, INTERNAL 2.047
-
253234090 RING, RETAINING BASIC, EXTERNAL 0.428RING, RETAINING BASIC, EXTERNAL 0.428
-
263234205 RING, RETAININGRING, RETAINING
-
273235214 RING, RETAINING BASIC, EXTERNAL MSR-32RING, RETAINING BASIC, EXTERNAL MSR-32
-
283235216 RING, RETAINING, VSH-237RING, RETAINING, VSH-237
-
293235395 SHAFT, BOSS LW UTILITY, INPUT, AVALANCHESHAFT, BOSS LW UTILITY, INPUT, AVALANCHE
-
303233378 WASHER, THRUST, 1.187 X 1.5 X 0.06WASHER, THRUST, 1.187 X 1.5 X 0.06
-
313234642 WASHER, THRUST, 0.446 X 0.88 X 0.025WASHER, THRUST, 0.446 X 0.88 X 0.025
-
323234272 SHIM, 1.18 OD X 0.995 IDSHIM, 1.18 OD X 0.995 ID
-
333234273 SHIM, 2.04 OD X 1.63 IDSHIM, 2.04 OD X 1.63 ID
-
343235883 SPACER, 19.4 X 34 X 2SPACER, 19.4 X 34 X 2
-
353233014 BEARING, NEEDLE, CAGE ASSYBEARING, NEEDLE, CAGE ASSY
-
363233019 BEARING, BALL, 6205 C3 25X52X15BEARING, BALL, 6205 C3 25X52X15
-
373233020 BEARING, BALL, 6305 C3, 25 X 62 X 17BEARING, BALL, 6305 C3, 25 X 62 X 17
-
383233268 BEARING, BALL, 6010 C3 50X80X16BEARING, BALL, 6010 C3 50X80X16
-
393234065 BEARING, BALL, 6207 C3 35X72X17BEARING, BALL, 6207 C3 35X72X17
-
403233384 BEARING, NEEDLE, CAGE ASSYBEARING, NEEDLE, CAGE ASSY
-
413235218 BEARING, BALL, 6012 C3 60 X 95 X 18BEARING, BALL, 6012 C3 60 X 95 X 18
-
423234239 BEARING, PLAIN 10 X 12 X 25BEARING, PLAIN 10 X 12 X 25
-
433234241 BEARING, PLAIN 40 X 44 X 15BEARING, PLAIN 40 X 44 X 15
-
443234652 BEARING, BALL 6303, 17 X 47 X 14BEARING, BALL 6303, 17 X 47 X 14
-
453234078 SPRING, COMPRESSION, 0.92 O.D. X 2SPRING, COMPRESSION, 0.92 O.D. X 2
-
463234089 SPRING, COMPRESSION, 0.46 I.D. X 0.73SPRING, COMPRESSION, 0.46 I.D. X 0.73
-
473234276 SPRING, TORSION, RETURNSPRING, TORSION, RETURN
-
483234277 SPRING, COMPRESSION, 0.54 X 0.44 X 0.05 WIRESPRING, COMPRESSION, 0.54 X 0.44 X 0.05 WIRE
-
493234578 SPRING, COMPRESSIONSPRING, COMPRESSION
-
503235885 SPRING, TORSIONSPRING, TORSION
-
513235327 SPRING, WASHERSPRING, WASHER
-
523234278 TUBE, SNORKEL MACHTUBE, SNORKEL MACH
-
533233839 GEAR, SECTOR 16TGEAR, SECTOR 16T
-
543233832 GEAR, SECTOR, 31TGEAR, SECTOR, 31T
-
553235455 FORK, PIVOT SHIFT REAR DIFFFORK, PIVOT SHIFT REAR DIFF
-
563235456 PLATE, PARK 12-FACEPLATE, PARK 12-FACE
-
573235982 STAR, DETENTSTAR, DETENT
-
583235223 SHAFT, IDLER 29TSHAFT, IDLER 29T
-
593235224 SHAFT, REVERSE 29TSHAFT, REVERSE 29T
-
603235372 DISC, BRAKEDISC, BRAKE
-
613235394 SHAFT, FRONT OUTPUTSHAFT, FRONT OUTPUT
-
623235474 BELLCRANK, TITANBELLCRANK, TITAN
-
633234073 COLLAR, SHIFTCOLLAR, SHIFT
-
643234230 TUBE, VENT, 90 -1/4" HOSETUBE, VENT, 90 -1/4" HOSE
-
653234928 DOG, ENGAGEMENTDOG, ENGAGEMENT
-
663235229 GEAR, 44T STAGE 2GEAR, 44T STAGE 2
-
673233852 GEAR, LOW 67TGEAR, LOW 67T
-
683235233 DOG, ENGAGEMENT 6-FACEDOG, ENGAGEMENT 6-FACE
-
693235236 GEAR, 46T STAGE 3GEAR, 46T STAGE 3
-
703235237 GEAR, 13T SNORKELGEAR, 13T SNORKEL
-
713235238 SHAFT, SHIFTSHAFT, SHIFT
-
723235396 GEAR, 49TGEAR, 49T
-
733235457 SHIFT DOG, PARKSHIFT DOG, PARK
-
743235542 RAIL, SHIFT SHAFTRAIL, SHIFT SHAFT
-
753235755 SPROCKET, 48T 6-FACESPROCKET, 48T 6-FACE
-
763235983 PARK CAMPARK CAM
-
773235984 DRUM, SHIFT MACHDRUM, SHIFT MACH
-
783235510 WELDMENT, REAR MOUNT BRACKETWELDMENT, REAR MOUNT BRACKET
-
793234469 SUBASSEMBLY, PLANET GEAR (INCLUDES BUSHING)SUBASSEMBLY, PLANET GEAR (INCLUDES BUSHING)
-
803235713 SUBASSEMBLY, SECTOR COVER (INCLUDES ALL HARDWARE)SUBASSEMBLY, SECTOR COVER (INCLUDES ALL HARDWARE)
-
813235373 SUBASSEMBLY, AVALANCHE DIFFERENTIALSUBASSEMBLY, AVALANCHE DIFFERENTIAL
-
823235376 SUBASSEMBLY, DIFF COVER (INCLUDES PLUG, BUSHING)SUBASSEMBLY, DIFF COVER (INCLUDES PLUG, BUSHING)
-
833235374 SUBASSEMBLY, 39T SIDE GEAR (INCLUDES PLUG)SUBASSEMBLY, 39T SIDE GEAR (INCLUDES PLUG)
-
843235375 SUBASSY, 39T SIDE GEAR (INCL. PLUG, BUSHING)SUBASSY, 39T SIDE GEAR (INCL. PLUG, BUSHING)
-
853235378 SUBASSY, GEAR 53T (INCL. PINS, BUSHING, BEARING)SUBASSY, GEAR 53T (INCL. PINS, BUSHING, BEARING)
-
863235371 SUBASSEMBLY, PINIONSUBASSEMBLY, PINION
-
873235452 SUBASSEMBLY, PAWL, DETENT, ROLLERSUBASSEMBLY, PAWL, DETENT, ROLLER
-
883235831 SUBASSEMBLY LH CASE (INCLUDES ALL HARDWARE)SUBASSEMBLY LH CASE (INCLUDES ALL HARDWARE)
-
893235920 SUBASSY, SHIFT FORKSUBASSY, SHIFT FORK
-
903236008 SUBASSEMBLY RH COVER (INCLUDES ALL HARDWARE)SUBASSEMBLY RH COVER (INCLUDES ALL HARDWARE)
-
913234934 RETAINER, FORKRETAINER, FORK
-
923235241 COVER, BEARING (CENTER DRIVE)COVER, BEARING (CENTER DRIVE)
-
933235350 BRACKET, WIRE HARNESSBRACKET, WIRE HARNESS
-
943235511 BRACKET, REAR MOUNTBRACKET, REAR MOUNT
-
953234737 CHAIN, SILENT, TYPE 101, .25P X .40W X 58LCHAIN, SILENT, TYPE 101, .25P X .40W X 58L
-
963235478 SOLENOIDSOLENOID
-
974013908 SENSOR, SPEEDSENSOR, SPEED
-
993235830 SEAL, DUAL LIP, VITON, 40 X 70 X 7SEAL, DUAL LIP, VITON, 40 X 70 X 7
-
1003234249 PLUG, EXPANSION 37987PLUG, EXPANSION 37987
-
1013234851 SEAL, DUAL LIP, 25 X 47 VITONSEAL, DUAL LIP, 25 X 47 VITON
-
1023234302 O-RING, -113O-RING, -113
-
1033233836 O-RING, -12 VITONO-RING, -12 VITON
-
1043233828 O-RING, -14 VITONO-RING, -14 VITON
-
1053234113 SEAL, TRIPLE LIP, 25 X 80 X 10SEAL, TRIPLE LIP, 25 X 80 X 10
-
1063234892 SEAL, TRIPLE LIP, 0.984 X 1.85 X 0.315 VITONSEAL, TRIPLE LIP, 0.984 X 1.85 X 0.315 VITON
