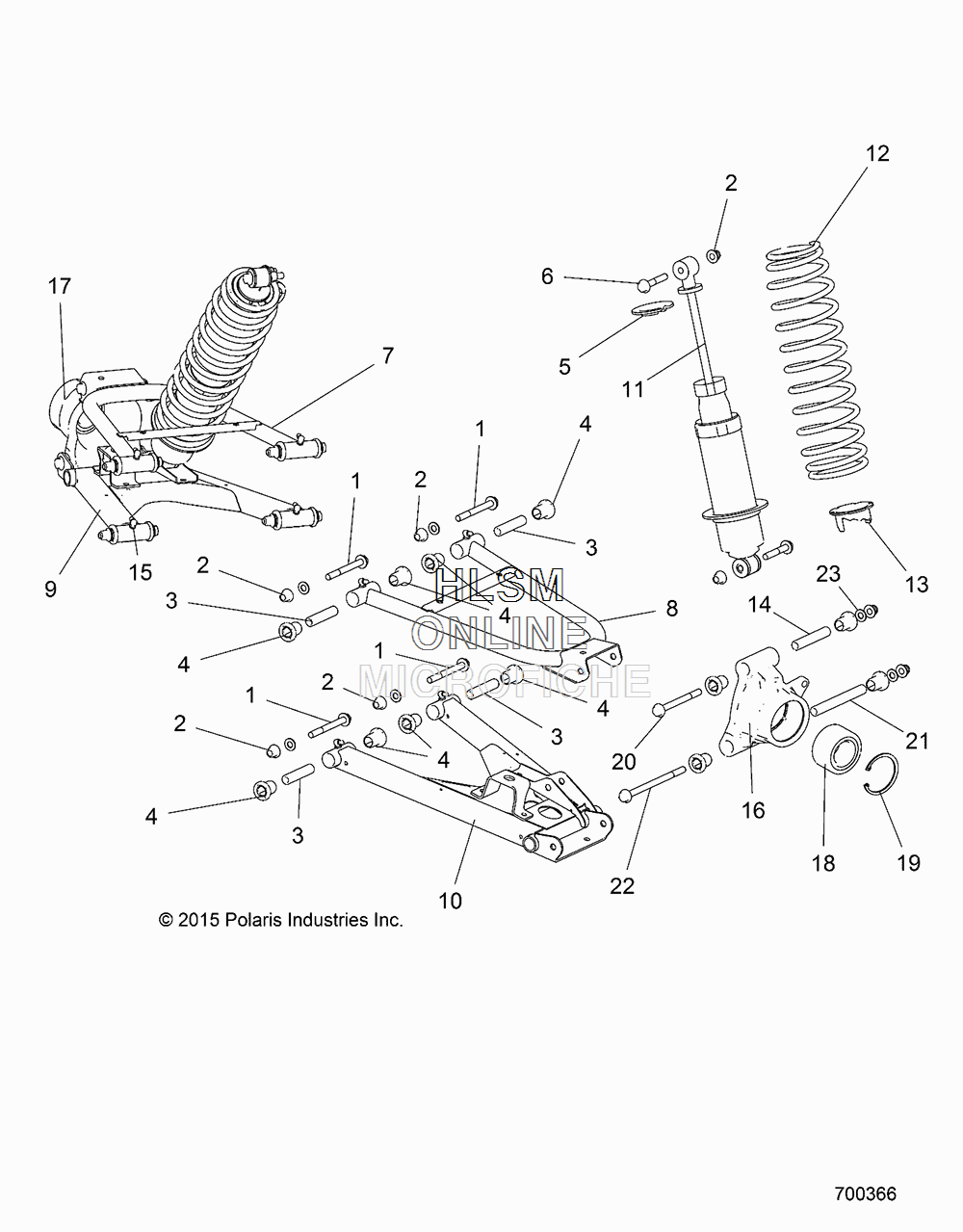

REAR SUSPENSION для Polaris RANGER 1000 DIESEL (R08) - [R17RTAD1A1] - 2017 года выпуска
-
№АртикулНазвание
-
17519043 SCREWSCREW
-
27547333 NUT, NYLOKNUT, NYLOK
-
35138797 SHAFT, PIVOTSHAFT, PIVOT
-
45439874 BUSHING, STANDARD [QTY OF 8 FOR N1]BUSHING, STANDARD [QTY OF 8 FOR N1]
-
55251753 RETAINER, SHOCKRETAINER, SHOCK
-
67519306 BOLT, FLANGEDBOLT, FLANGED
-
71018466-458 ARM, CONTROL, UPPER, RIGHT HAND, (MATTE BLACK)ARM, CONTROL, UPPER, RIGHT HAND, (MATTE BLACK)
-
81018465-458 ARM, CONTROL, UPPER, LEFT HAND, (MATTE BLACK)ARM, CONTROL, UPPER, LEFT HAND, (MATTE BLACK)
-
91018461-458 ARM, CONTROL, LOWER, RIGHT HAND, (MATTE BLACK)ARM, CONTROL, LOWER, RIGHT HAND, (MATTE BLACK)
-
101018460-458 ARM, CONTROL, LOWER, LEFT HAND, (MATTE BLACK)ARM, CONTROL, LOWER, LEFT HAND, (MATTE BLACK)
-
117043753 SHOCK, REARSHOCK, REAR
-
127044138-458 SPRING, LARGE, (MATTE BLACK)SPRING, LARGE, (MATTE BLACK)
-
135253768 CAM, ADJUST, SPRINGCAM, ADJUST, SPRING
-
145138794 SHAFT, PIVOTSHAFT, PIVOT
-
157080510 FITTING, ZERKFITTING, ZERK
-
165138501 CARRIER, BEARING, WHEEL, LEFT HANDCARRIER, BEARING, WHEEL, LEFT HAND
-
175138502 CARRIER, BEARING, WHEEL, RIGHT HANDCARRIER, BEARING, WHEEL, RIGHT HAND
-
183514635 BEARING, WHEELBEARING, WHEEL
-
197710440 RING, RETAININGRING, RETAINING
-
207519365 SCREWSCREW
-
215138796 SHAFT, PIVOTSHAFT, PIVOT
-
227519042 SCREWSCREW
-
237556153 WASHERWASHER
