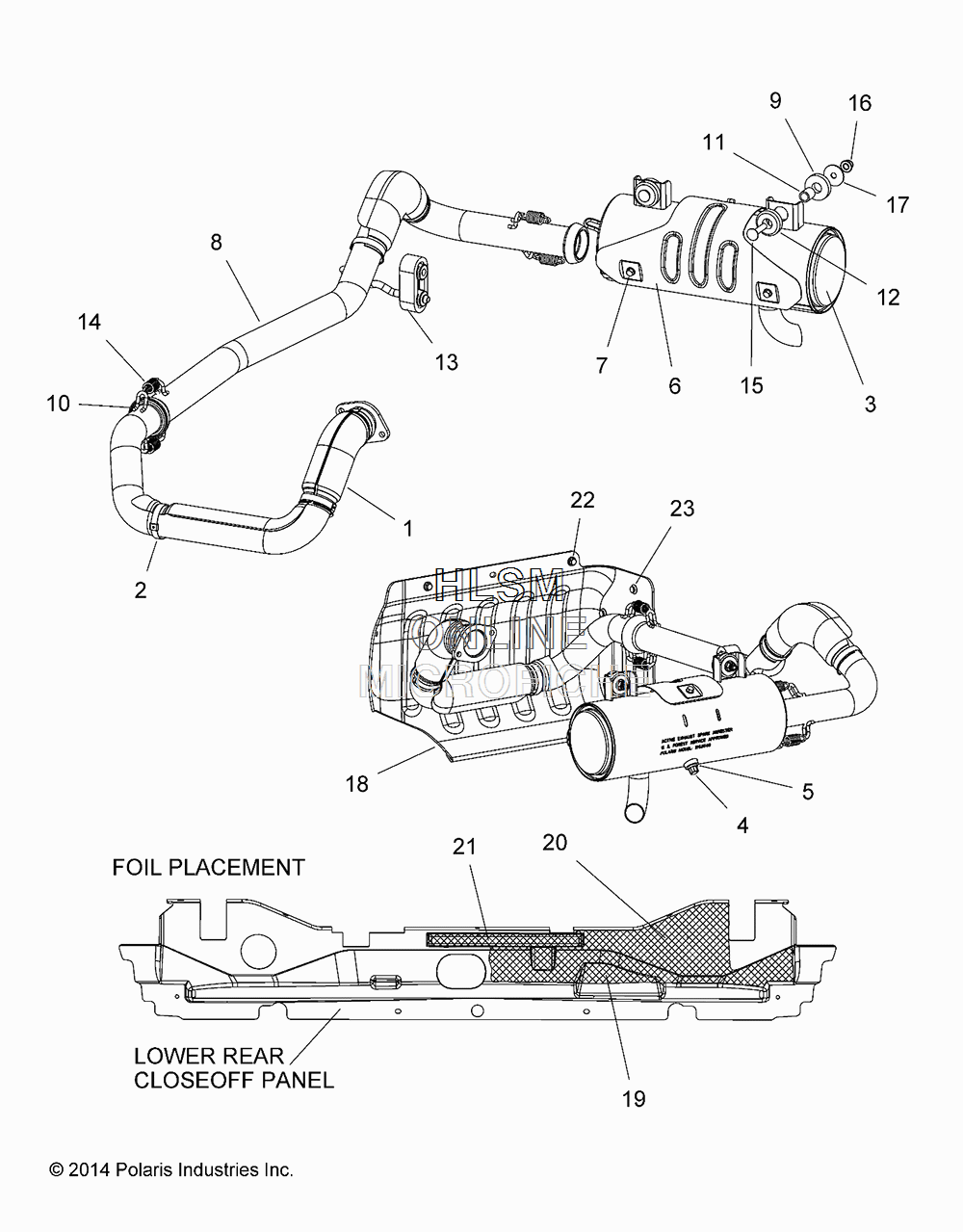

EXHAUST для Polaris RANGER 1000 DIESEL (R08) - [R17RTED1N1] - 2017 года выпуска
-
№АртикулНазвание
-
11262548 ASM., HEADPIPE, DSL [INCL QTY 3 OF 2]ASM., HEADPIPE, DSL [INCL QTY 3 OF 2]
-
27081156 CLAMP, HEAT SHIELDCLAMP, HEAT SHIELD
-
31262577 ASM., SILENCER [INCL 4-7]ASM., SILENCER [INCL 4-7]
-
47512666 BOLTBOLT
-
57556230 WASHERWASHER
-
65259416 SHIELD, SILENCERSHIELD, SILENCER
-
77515197 SCREWSCREW
-
81262581 ASM., MIDPIPE, DSL [INCL QTY 2 OF 2]ASM., MIDPIPE, DSL [INCL QTY 2 OF 2]
-
95415398 WASHER, SILENCER MOUNTWASHER, SILENCER MOUNT
-
103610181 SEAL, EXHAUST, SOCKETSEAL, EXHAUST, SOCKET
-
115010192 BUSHINGBUSHING
-
125414946 DAMPER, VIBRATIONDAMPER, VIBRATION
-
135415027 MOUNT, ISOLATORMOUNT, ISOLATOR
-
147041789 SPRING, EXHAUSTSPRING, EXHAUST
-
157519305 SCREWSCREW
-
167547332 NUTNUT
-
177555716 WASHERWASHER
-
185814455 SHIELD, HEAT, FOIL, BOTTOMSHIELD, HEAT, FOIL, BOTTOM
-
195813944 FOIL, CLOSEOFF, FRONTFOIL, CLOSEOFF, FRONT
-
205813945 FOIL, CLOSEOFFFOIL, CLOSEOFF
-
215813950 FOIL, CLOSEOFF, FRONTFOIL, CLOSEOFF, FRONT
-
227518529 SCREW, HXHD, FLANGESCREW, HXHD, FLANGE
-
237661855 RIVET, TUFLOKRIVET, TUFLOK
