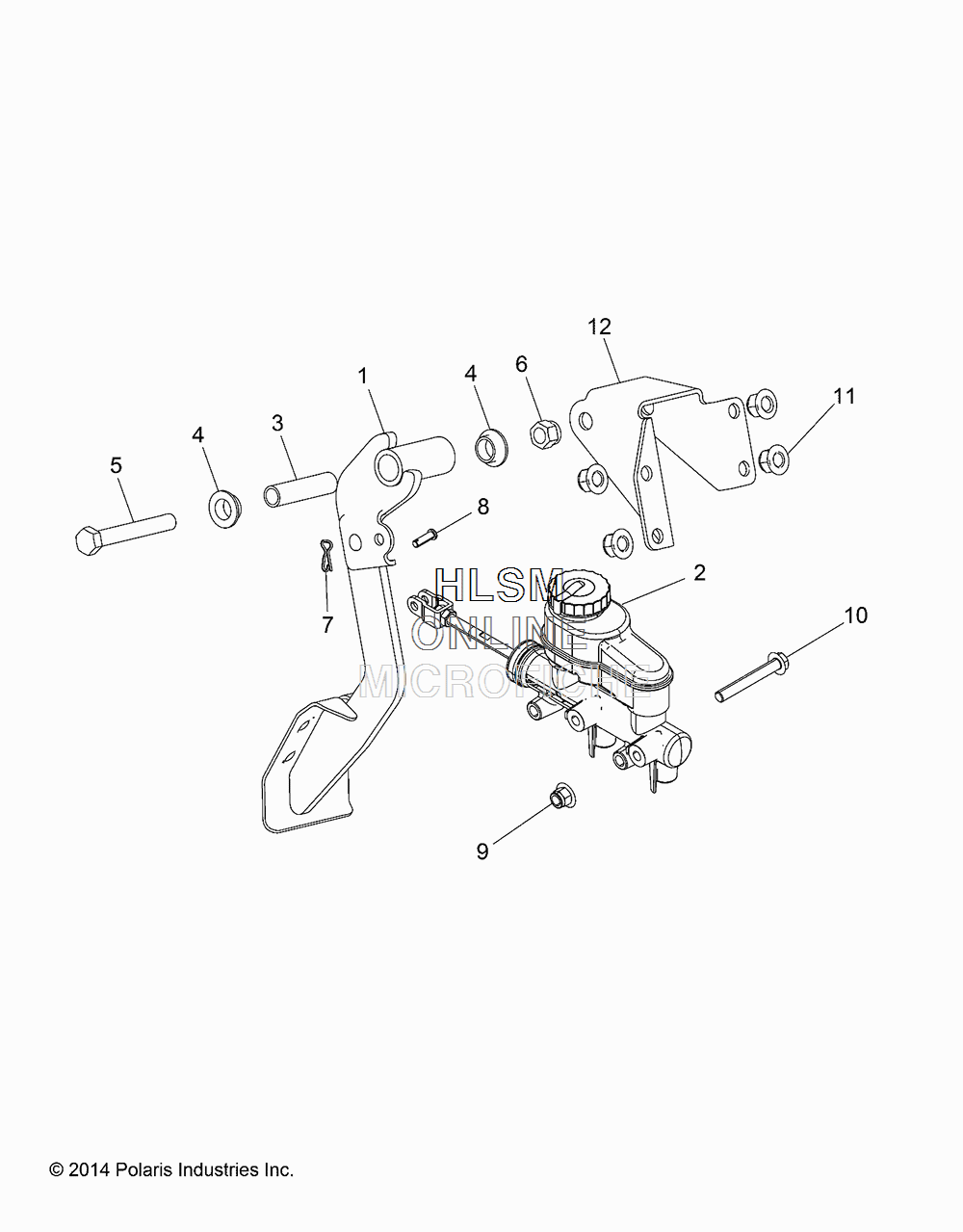

MASTER CYLINDER AND PEDAL для Polaris RANGER 570, FULL SIZE SAGE BRUSH METALLIC (R08) - [R17RCA57A1] - 2017 года выпуска
-
№АртикулНазвание
-
11021680-458 PEDAL, BRAKE, (MATTE BLACK)PEDAL, BRAKE, (MATTE BLACK)
-
21912463 ASM-M/C-T, HBII, STD PUSH RODASM-M/C-T, HBII, STD PUSH ROD
-
35335739 TUBE, BRAKE PEDAL BUSHINGTUBE, BRAKE PEDAL BUSHING
-
45439274 BUSHING, PEDAL PIVOTBUSHING, PEDAL PIVOT
-
57515417 SCREWSCREW
-
67542439 NUT, NYLOKNUT, NYLOK
-
77661140 PIN, CLIPPIN, CLIP
-
87661843 PIN, CLEVISPIN, CLEVIS
-
97547317 NUTNUT
-
107517281 SCREWSCREW
-
117547332 NUT [USE W/5262184-329]NUT [USE W/5262184-329]
-
125262184-329 BRACKET, PEDAL MOUNT, (BLACK)BRACKET, PEDAL MOUNT, (BLACK)
